HH-UV-A3

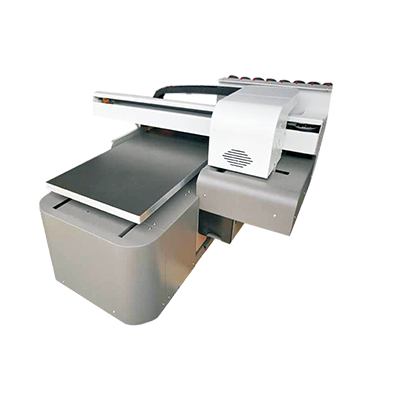

A3 UV Flatbed Inkjet Digital Printer

Specification

Print head2PCS TX800

Printing method:1,White;2,Multicolor;3,Varnish

Printing software:Photo Print/UItra print

Max printing size:30cm*55cm

Printing model:CMYKWW

Printing height:11CM

Printing precision:360dpi*720dpi*1440dpi

Printing Speed:8PASS 8 squire meter,16PASS  6square meter

Ink type:UV environmentally ink

Ink consumption:15ml per square meter

Ink system:250ml*6colors

Operation system:win95,win98,win2000,XP,win7,win8,win10

Voltage:110-220V  50-60HZ

Printing interface:USB2.0

Solidification:LED UV Lamp

Net and Gross weight:62kg and 84kg

Outsize:960*856*476mm

Packaging size:1060*930*620mm

Warranty:3years,Not included Printing head



Functions:

1,Automatic curing when printing by using LED UV Lamp.

2,Automatic pump out the waste ink when cleaning the print head.

3,Automatic detect the height of object to make sure print position very well.

4,Using fan to cool down the machine when operating.

5,Automatic stirring ink.

6,Being sensitive with the volume of ink, to make sure the ink is enough for proceeding.



 Advantages:

1. It can print out white ink and print on both light and dark products.

2. It can print out the embossing  effect.

3. It can print on case of any color.

4. It dry immediately after printing.

5. It can print picture from computer onto flat product directly.

6. It can print on many materials:

Acrylic,ABS,PVC,PP,PE,PU,cotton,nylon,polyester,spandex,PVCleather,PUleather,gold,wood,bamboo,crystal,glass,ceramic,stone,golf,silver,copper,iron,stainless steel, aluminium alloy etc.

UV Printer,Flatbed Printer,Digital Printer
