| Size: | As request |
|---|---|
| Type: | Abrasive Disc |
| Brand Name: | MoreSuperHard |
| Material: | Diamond |
| Grit: | As request |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

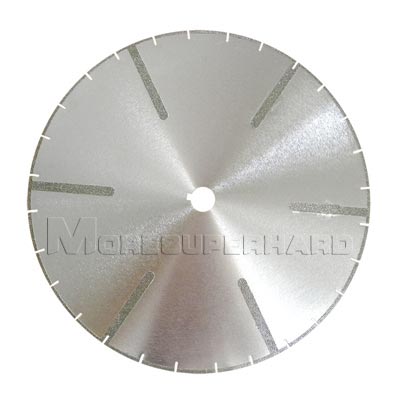

Applications of electroplated diamond cutting wheel, cutting disc
Cutting and grinding marble, granite, thermosetting plastics, GRP, Pre-sintered and pre-fired (green) materials, fiber glass, electro Carbons, graphite, soft ferrites, PVC and PC boards, etc
More SuperHard electroplated diamond saw baldes are usually be fixed On angle grinders, circular saws and handheld saws for cutting granite Or marble, etc
Advantages of electroplated diamond cutting disc* the cutting effect is better than sintered small diamond saw blade and won't cause broken edge
* Very sharp cutting performance and generate minimum heat
*Continuous rim cutting discs provide smoother cutting on fiberglass, plastic, ceramic tiles
*Segmented rim cutting discs are more suitable for cutting marble, granite and abrasive materials
* Key hole" and " U" shape slots are common slot types of segmented rim
| Outer Diameter | Arbor hole (mm) |
Thickness of steel core |
Rim | |
12" |
300 mm | 25.4 30 50 |
1.8mm 2mm |
Continuous Segment |
14" |
350 mm | 25.4 30 50 |
1.8mm 2mm |
Continuous Segment |
16" |
400 mm | 25.4 30 50 |
1.8mm 2mm |
Continuous Segment |
18" |
450 mm | 25.4 30 50 |
1.8mm 3mm |
Continuous Segment |
20" |
500 mm | 25.4 30 50 |
3.0mm |
Continuous Segment |
| Outer Diameter | Arbor hole (mm) |
Thickness of steel core |
Rim | |
4" |
100 mm | 5/8"-11 Flange |
1.4mm |
Continuous Segment |
4.5" |
115 mm | 5/8"-11 Flange |
1.4mm |
Continuous Segment |
5" |
125 mm | 5/8"-11 Flange |
1.4mm |
Continuous Segment |
6" |
150 mm | 5/8"-11 Flange |
1.4mm |
Continuous Segment |
| 7" | 180mm | 5/8"-11 Flange | 1.6mm | Continuous Segment |
9" |
230 mm | 5/8"-11 Flange |
1.6mm |
Continuous Segment |
| | ||||
| Outer Diameter | Arbor hole (mm) |
Thickness of steel core |
Rim | |
4" |
100 mm | 22.23 |
1.4mm |
Continuous Segment |
4.5" |
115 mm | 22.23 |
1.4mm |
Continuous Segment |
5" |
125 mm | 22.23 |
1.4mm |
Continuous Segment |
6" |
150 mm | 22.23 |
1.4mm |
Continuous Segment |
| 7" | 180mm | 22.23 | 1.6mm | Continuous Segment |
9" |
230 mm | 22.23 |
1.6mm |
Continuous Segment |
| Other size and type of diamond cutting disc can be made
According to customers' requirement. | ||||
