Brief introduction

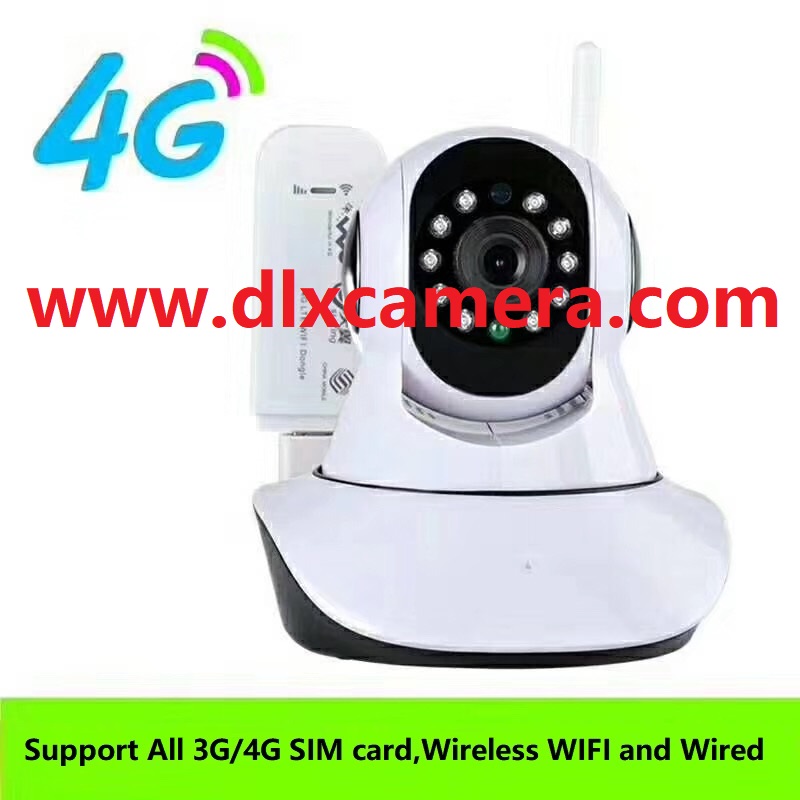

DLX-EHG 4G P2P WiFi PTZ HD IP camera is used for video surveillance,video sharing, baby monitoring and old person care etc. Support wireless/wiredconnection. Support PTZ and Rotation angles is Horizontal 355,Vertical 120.Watch large scale scene, various resolutions and frame rates. Supportsbi-direction audio (talkback) and alarm input/output. Support requireauthentication for watch video and data encryption transmission for safety.Support3g/4g SIM card.

Adopts world's leading wireless networking architecture. End user noneed professional knowledge of computer/telecom etc., just need control andmonitor by smart mobile etc. Operating interface is simple, obvious and humanized.User can video monitor and control the camera at anywhere and anytime.

Features

Megapixel HD CMOS sensor, Supportresolution:1080P(1920*1080)960P(1280*960)720P(1280*720)(640*480)/(320*240)(160*120)

H.264 compression, Support Dual Stream,smooth and clear image, Suit to local/remote/cross regional Watch

Support P2P(peer to peer) transmissionwithout router setting or mapping

Built-in Stereo speaker, clear and highvoice

Support two-way pronunciation talkbacks,built-in microphone

Support Max.128G SD for store photo andvideo. Has record management function, user can set time of automatic videorecording, also can automatic video recording via motion detecting. beside,usercan remote download video files of SD card by network

Support IR-CUT double-filter, IR range upto 10meters,Image no distortion and no color cast

Support UPNP-plug and play function

Support 3G/4G SIM card

Built-in PTZ Rotation function,Horizontal: 355,Vertical:120

Support smart mobiles watch directly(better quality video when using H.264 format)

Support IE, Firefox, Safar ect. Browsers

SupportTCP/IP,HTTP,SMTP,RTSP,FTP,DHCP,DDNS,NTP etc network protocol

Support motion detecting, give sound alarmin the camera and send alarm signals by email or FTP upload pics etc., Also cansend alarm information to alarm server

Adopts TCP/IP network protocol andbuilt-in Web server, User can read by IE or other browser, Data been convertedvia one port for user set easily

Support record/alarm/remote replay etc.Management

Support remote watch video and record byinternet

Use multi-level usernames and passwords

Specification

CPU

Operation system

Windows, Linux, iOS, Android etc.

Processor

32Bit RSIC Embedded Processor

Sensor&Lens

Sensor

Megapixel CMOS

Performance

Automatic BLC, White Balance and GainControl

Min. Illumination

Color:0.8Lux/F1.4, W/B:0.01LUX/F1.0

S/N

>42dB

Lens

F1.2/3.6mm

Video

Compression

H.264 Main Profile, MJPEG/JPEG Baseline

Resolution

1080P,960P,720P,VGA(640*480),QVGA(320*240)

Frames per sec.

1-25fps

Image adjustment

Saturation, brightness, contrast

Night vision

IR

11pieces 5 LEDs, IR range10M, AutomaticIR-CUT

Audio

Compression

ADPCM

Input

Built-in microphone /AGC

Output

Built-in speaker

PTZ

Rotation angles

Horizontal: 355,Vertical:120,Rotationspeed:1-70/s

Network

Internet port

10Base-T/100Base-TX RJ45

Internet protocol

TCP/IP,HTTP,ICMP,DHCP,FTP,SMTP, PPPoE, RTSP

Wireless

Wi-Fi 802.11b/g/n and 3G/4G

Alarm

Motion detecting

Sensitive motion detecting

Alarm inform

Support Sound,E-mail, FTP upload and pop -up alarm on mobile

Physical indexes

Power supply

DC5V2A

Working Environment

-10~50 C/ 95% RH

Accessories

One WiFi antenna,one power adapter, oneMulti - function Bracket
