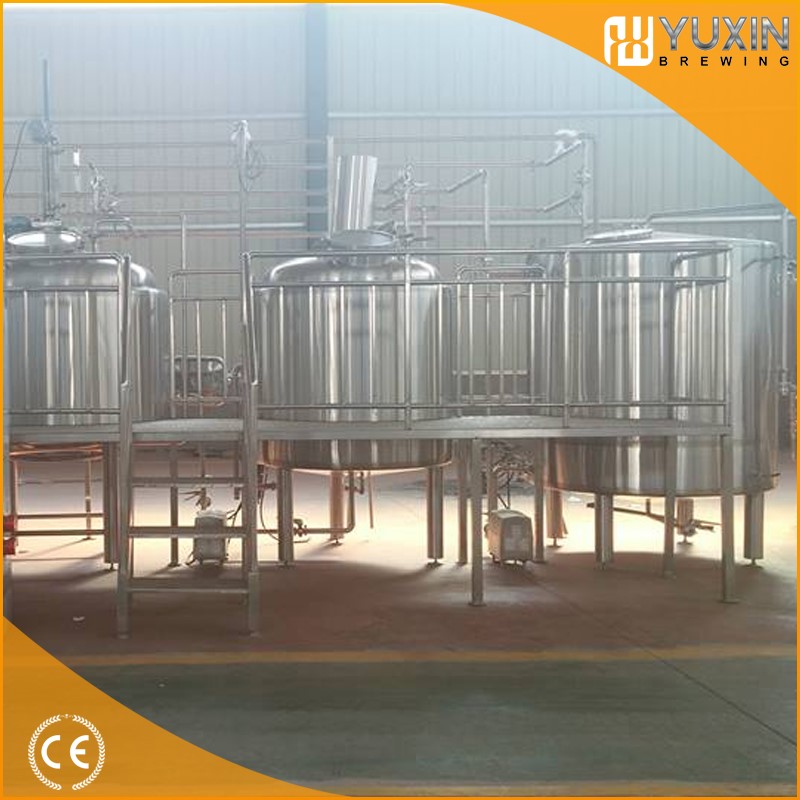

Large bright beer tank 2000L 3000L.


1.Brief Introduction:



these tanks are used for the storage of the beer prior to being served or packaged. Depending on their application the beer serving tanks can be glycol jacketed or can be located in a cold room.

for brewpubs serving is often done by pumping or pressurizing the beer toward the serving location.



2.Techincal parameters:

Design pressure 45 psi (3bar); working pressure 15psi (1bar)

4 stainless steel legs with leveling footpads

Interior shell: 304 stainless steel, thickness 3mm

Exterior shell: 304 stainless steel, thickness 2mm

Interior and exterior finish bright polish to 0.6~0.8 m, hygiene surface

All Interior welds ground to a smooth0.6~0.8 m sanitary finish

Flanged and dished head top and bottom

20% headspace unless a different volume is requested

Combined drain extensions and beer port are standard

Top manway or side manway door

Dual zone in sidewall and bottom dimple cooling jacket with glycol inlet and outlet

Polyurethane insulation thickness 80mm for cooling jacket on side and bottom

Non welding CIP arm and rotating 360 degree reach spray ball

Carbonation system with micron stone

Solenoid valve, pressure relief valve (safe valve) are standard.

Pressure gauge

Temperature sensor well

All clamps and gaskets to attach all accessories

Tank complete with piping, fittings, sanitary valves and all parts.

3.Packaing&Shipping:
Air bubble film, stretching membrane, steel shelf, free-fumigation wooden box, to make everything safe in containers.
