Product Main

Quick Details

Certification: CCC,CE,ISO9001
Protect Feature: Totally Enclosed
Output Power: 0.55KW~355KW
Type: Induction Motor
Brand Name: TZMOTAI
Efficiency: IE 1
Place of Origin: China (Mainland)
AC Voltage: 460 / 480 V
Phase: Three-phase
Frequency: 50/60HZ
Model Number: YEJ80~YEJ280
Model NO.: YEJ71~YEJ355
YEJ71~YEJ355: 0.55KW~355KW
Voltage: 220/380V,380V,415V,660V,720V
Motor Housing: Cast Iron or Aluminium
Core Wire: copper wire
Insulation: F class
Protection: IP55
Specification: Hand-Brake or Auto-Brake
HS CODE: 850151,850152,850153
Color Painting: as Per Request

Specifications

YEJ series Electromagnetic Brake Three Phase Asynchronous Motor
Product Description
YEJ series motor is full closed, self fan cooling,squirrel-cage three-phase asynchronous motor with a electromagnetic brake, Y series motor end cover between the fan and attach a DC electromagnetic brake disc, is derived series of Y series.It is Widely used on mechanical equipment and driving machines where rapidly and accurate braking is demanded.
Features: Spring set brake. Power off operation manual release. Resets automatically. One-half period rectification.

Frame number: 80 ~355 Power: 0.55 ~355KW

Braking method: loss of power Braking rectification method: half-wave rectifier

Applicable to: all kinds of machine tools, printing machinery, forging machine, transport machinery, packaging machinery, food machinery, construction machinery, woodworking machinery and other requirements to quickly stop, accurate positioning, reciprocating operation, to prevent the sliding of various machinery for spindle drive and auxiliary transmission.

Features: fast braking, simple structure, accurate positioning.

PERFORMANCE DATA

MODEL power Full load time Locked rotor torque Rated torque Locked rotor current Rated cuffrent Breakdown torque Rated torque
Rated current Rotating speed Efficiency Power factor
Synchronous speed 3000r/min
YEJ801-2 0.75 1.8 2825 75.0 0.84 2.2 6.5 2.3
YEJ802-2 1.1 2.5 2825 77.0 0.86 2.2 7.0 2.3
YEJ90S-2 1.5 3.4 2840 78.0 0.85 2.2 7.0 2.3
YEJ90L-2 2.2 4.8 2840 80.5 0.86 2.2 7.0 2.3
YEJ100L-2 3 6.4 2880 82.0 0.87 2.2 7.0 2.3
YEJ112M-2 4 8.2 2890 85.5 0.87 2.2 7.0 2.3
YEJ132S1-2 5.5 11.1 2900 85.5 0.88 2.0 7.0 2.3
YEJ132S2-2 7.5 15.0 2900 86.2 0.88 2.0 7.0 2.3
YEJ160M1-2 11 21.8 2930 87.2 0.88 2.0 7.0 2.3
YEJ160M2-2 15 29.4 2930 88.2 0.88 2.0 7.0 2.2
YEJ160L-2 18.5 35.5 2930 89.0 0.89 2.0 7.0 2.2
YEJ180M-2 22 42.2 2940 89.0 0.89 2.0 7.0 2.2
YEJ200L1-2 30 56.9 2950 90.0 0.89 2.0 7.0 2.2
YEJ200L2-2 37 69.8 2950 90.5 0.89 2.0 7.0 2.2
YEJ225M-2 45 84.0 2970 91.5 0.89 2.0 7.0 2.2
Synchronous speed1500r/min
YEJ801-4 0.55 1.5 1390 73.0 0.76 2.4 6.0 2.3
YEJ802-4 0.75 2.0 1390 74.5 0.76 2.3 6.0 2.3
YEJ90S-4 1.1 2.7 1400 78.0 0.78 2.3 6.5 2.3
YEJ90L-4 1.5 3.7 1400 79.0 0.79 2.3 6.5 2.3
YEJ100L1-4 2.2 5.0 1420 81.0 0.82 2.2 7.0 2.3
YEJ100L2-4 3 6.8 1420 82.5 0.81 2.2 7.0 2.3
YEJ112M-4 4 8.8 1440 84.5 0.82 2.2 7.0 2.3
YEJ132S-4 5.5 11.6 1440 85.5 0.84 2.2 7.0 2.3
YEJ132M-4 7.5 15.4 1440 87.0 0.85 2.2 7.0 2.3
YEJ160M-4 11 22.6 1460 88.0 0.84 2.2 7.0 2.3
YEJ160L-4 15 30.0 1460 88.5 0.85 2.2 7.0 2.2
YEJ180M-4 18.5 35.9 1470 91.0 0.86 2.0 7.0 2.2
YEJ180L1-4 22 42.5 1470 91.5 0.86 2.0 7.0 2.2
YEJ200L-4 30 56.8 1470 92.2 0.87 2.0 7.0 2.2
YEJ225S-4 37 70.4 1480 91.8 0.87 1.9 7.0 2.2
YEJ225M-4 45 84.2 1480 92.3 0.88 1.9 7.0 2.2
Synchronous speed1000r/min
YEJ90S-6 0.75 2.3 910 72.5 0.70 2.0 5.5 2.2
YEJ90L-6 1.1 3.2 910 73.5 0.72 2.0 5.5 2.2
YEJ100L-6 1.5 4.0 940 77.5 0.74 2.0 5.5 2.2
YEJ112M-6 2.2 5.6 960 80.5 0.74 2.0 6.0 2.2
YEJ132S-6 3 7.2 960 83.0 0.76 2.0 6.0 2.2
YEJ132M1-6 4 9.4 960 84.0 0.77 2.0 6.5 2.2
YEJ132M2-6 5.5 12.6 960 85.3 0.78 2.0 6.5 2.0
YEJ160M-6 7.5 17.0 970 86.0 .0.78 2.0 6.5 2.0
YEJ160L-6 11 24.6 970 87.0 0.78 2.0 6.5 2.0
YEJ180L-6 15 31.4 970 89.5 0.81 1.8 6.5 2.0
YEJ200L1-6 18.5 37.7 980 89.8 0.83 1.8 6.5 2.0
YEJ200L2-6 22 44.6 980 90.2 0.86 1.8 6.5 2.0
YEJ225M-6 30 59.3 980 90.2 0.85 1.7 6.5 2.0
Synchronous speed750r/min
YEJ132S-8 2.2 5.8 710 80.5 0.71 2.0 5.5 2.0
YEJ132M-8 3 7.7 710 82.0 0.72 2.0 5.5 2.0
YEJ160M1-8 4 9.9 720 84.0 0.73 2.0 6.0 2.0
YEJ160M2-8 5.5 13.3 720 85.0 0.74 2.0 6.0 2.0
YEJ160L-8 7.5 17.7 720 86.0 0.75 2.0 5.5 2.0
YEJ180L-8 11 24.8 730 87.5 0.77 1.7 6.0 2.0
YEJ200L-8 15 34.1 730 88.0 0.76 1.8 6.0 2.0
YEJ225S-8 18.5 41.3 735 89.5 0.76 1.7 6.0 2.0
YEJ225M-8 22 47.6 735 90.0 0.78 1.8 6.0 2.0

Brake Technical Parameters

Frame  Armature maximum stroke (air gap) No-load braking time Brake torque Excitation voltage Brake excitation rate
YEJ80 1.0 0.20 7.5 99 50
YEJ90 1.0 0.20 1.5 99 60
YEJ100 1.0 0.20 30 99 80
YEJ112 1.0 0.25 40 170 110
YEJ132 1.2 0.25 75 170 130
YEJ160 1.2 0.35 150 170 150
YEJ180 1.2 0.35 200 170 150
YEJ200 1.5 0.45 300 170 200
YEJ225 1.5 0.45 450 170 200

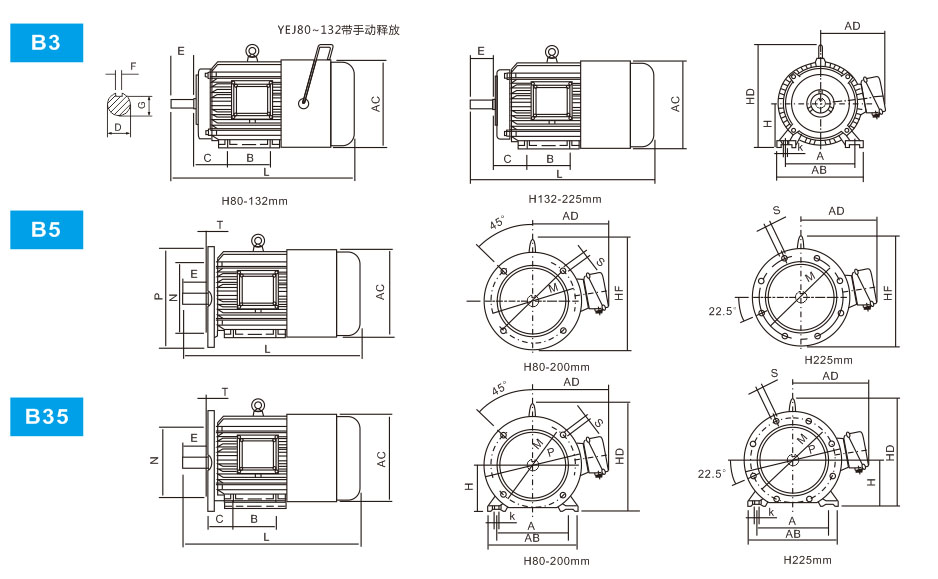

YEJ Series Electromagnetic Brake Asynchronous Motor

PRODUCTION PROCESSING:
YEJ Series Electromagnetic Brake Asynchronous Motor
ADVANTAGE:
Pre-sales service:
We are a sales team, with all technical support from engineer team.
We value every inquiry sent to us, ensure quick competitive offer within 24 hours.
We cooperate with customer to design and develop the new products. Provide all necessary document.

after-sales service:
We respect your feed back after receive the motors.
We provide 1years warranty after receipt of motors..
We promise all spare parts available in lifetime use.
We loge your complain within 24 hours.
