Description:

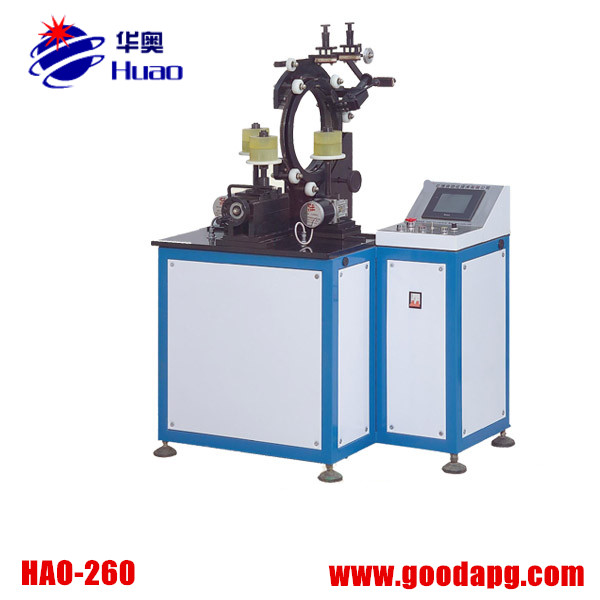

Transformer coil winding machine for voltage transformer is the special device designed according to the technology requirements of domestic enclosed voltage transformer secondary coil. Transformer coil winding machine is the effective attempt for realizing the numerical control,mechanization and speciality of secondary coils of enclosed voltage transformer.

Technical Parameters:

Product Name	CNC winding machine
Model	HAO-480
Diameter of windable electromagnetic wire	0.5-2.6mm
Max transverse motion distance of working bench	400mm
Max longitudinal motion distance of working bench	200mm
Max outer diameter of winded secondary coils	120mm
Max winding rotation speed	100rpm
Max power of winding motor	1.5KW
Max outline size of machine tool	700*1100*1350mm

Steps of Quality Control:

1. Strictly control the purchase standard of raw materials.

2. with high precision equipments and rich experience workers to process components, make each process up to standard.

3. Assembly process, recheck the quality of the components, the machine appearance etc.

4. Transformer coil winding machine Before shipment, test all operating procedures by winding the core to ensure the machine work normally.
