Quick Details

Brand Name:	NO
Materials:	Aluminium,plywood
Supporting Mode:	scaffolding system
Lapping Form:	welding
material:	Aluminium,plywood
Model Number:	scaffolding parts
Place of Origin:	China (Mainland)

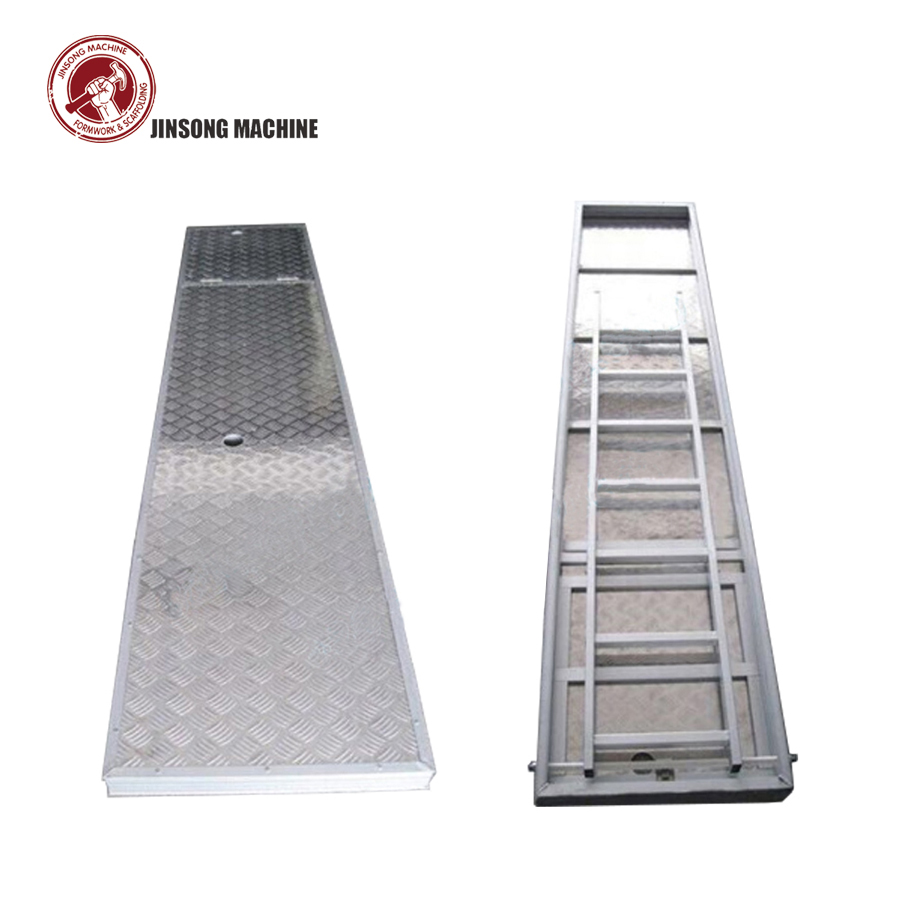

Product Name:	2570mm Aluminium Plywood Scaffolding Plank Decking With Trapdoor
Item:	JSRHT-2570
Length:	2570mm
Width:	610mm,620mm
Weight:	27.8kg
Thickness:	3mm or customize
Certificate:	ISO 9001 2008
Surface:	Aluminium,plywood
Packaging:	Bundles;Steel Pallet or According to Customer Request
Delivery time:	about 15-30days

Specifications

1:Product Name:2570mm Aluminium Plywood Scaffolding Plank Decking with Trapdoor

1].Name: Aluminum scaffolding plank for construction
Model:Plain Platform or Trapdoor platform
Specifications: Length 1.293m/1.643m/2.0m/2.5m/3.0m (Also provide different size!)
Load: Maximum 272KG for Per Platform

2].Aluminum platform pedal products main features advantages:
1).Having light weight and great load-carrying ability to meet the requirements of general construction engineering applications.
2).It is made of light weight aluminum alloy 6061-T6 material.
3). Convenient storage and transportation.
4). It is not easy to rust, and has high repetition rate.
5).the anti - release interlocking device ensures the safety of work

Dimension,surface(H.D.G/PAinted/E.G),material and style can be customized

Scaffolding with Ladder Aluminum trapdoor plywood plank

Description	Details	Size	Surface Coating	Weight(kg)
Aluminum plank with plywood with ladder	the thickness of Nonslip birch plywood is 9.5mm	631*2447mm		25.3
Aluminum plank with plywood with ladder	the thickness of Nonslip birch plywood is 9.5mm	631*2950mm		28.3
Aluminum plank with plywood with ladder		610*3070mm		31
Aluminum plank with plywood with ladder		620*3070mm		31.5
Aluminum plank with ladder	Aluminum:6061-T6,thickness:3mm	610*2570mm		27.6
Aluminum plank with ladder	Aluminum:6061-T6,thickness:3mm	620*2570mm		28

2:the Related Products:

Scaffolding plank ---WALK BOARDS

Material:Q195/Q235

Hot Dip GalvAnized

Size

Weight(kg)

Size

Weight(kg)

210 x 45 x 1.2 x 4000

13.6

500 x 50 x 1.2 x 1829

15.5

210 x 45 x 1.2 x 3000

10.26

480 x 45 x 1.2 x 1829

13.5

210 x 45 x 1.2 x 2000

6.93

450 x 45 x 1.2 x 1829

13

210 x 45 x 1.2 x 1000

3.59

450 x 38 x 1.2 x 1829

12.5

240 x 45 x 1.2 x 4000

14.87

420 x 45 x 1.2 x 1829

12.5

240 x 45 x 1.2 x 3000

11.23

500 x 50 x 1.2 x 1219

11

240 x 45 x 1.2 x 2000

7.59

480 x 45 x 1.2 x 1219

10

240 x 45 x 1.2 x 1000

3.94

450 x 45 x 1.2 x 1219

9.5

250 x 50 x 1.2 x 4000

15.67

450 x 38 x 1.2 x 1219

9

250 x 50 x 1.2 x 3000

11.84

420 x 45 x 1.2 x 1219

9

250 x 50 x 1.2 x 2000

8

330 x 50 x 1.2 x 1829

11.5

250 x 50 x 1.2 x 1000

4.15

330 x 50 x 1.2 x 1219

8.5

210 x 45 x 1.1 x 4000

12.75

240 x 45 x 1.1 x 4000

13.97

210 x 45 x 1.1 x 3000

9.62

240 x 45 x 1.1 x 3000

10.54

210 x 45 x 1.1 x 2000

6.38

240 x 45 x 1.1 x 2000

6.99

210 x 45 x 1.1 x 1000

3.2

240 x 45 x 1.1 x 1000

3.5

3:the Packaging:Bundles;Steel Pallet or According to Customer Request
4:the Company Information:
Nanjing Jinsong Machine Casting Co.,Ltd,Our factory is Founded in the year 1997,since year 2010 as a manufacturer of scaffolding and formwork in China.We are located in Nanjing city,centred around Shanghai in the Yangtze delta economic circle.We have facilities covering a total area of 23000 square meters,our employees reach up to 80 staffs,including 5 people of management team,3 engineers,6 quality control(QC),advanced testing laboratory and workers,our annual production reach 5 million lbs of products.

by the principle of " Technology Innovation",we are dedicated to design and produce all kinds of scaffolding products.Our main products include:Ringlock scaffolding system,Cuplock scaffolding system,Kwikstage scaffolding system,Haki scaffolding system,Frame scaffolding system and Steel prop system,which is widely used in major residential,commercial and industrial projects at home and abroad.

We are committed to designing optimal program,high quality products and outstanding service after sales based on satisfaction from customers,considering from the customers' perspective,we strive to create more value for them.

for further information about our scaffold,please contact us by e-mail or call,you will be glad you did.

Scaffolding plank ---WALK BOARDS
Material:Q195/Q235			Hot Dip GalvAnized
Size	Weight(kg)	Size		Weight(kg)
210 x 45 x 1.2 x 4000	13.6	500 x 50 x 1.2 x 1829		15.5
210 x 45 x 1.2 x 3000	10.26	480 x 45 x 1.2 x 1829		13.5
210 x 45 x 1.2 x 2000	6.93	450 x 45 x 1.2 x 1829		13
210 x 45 x 1.2 x 1000	3.59	450 x 38 x 1.2 x 1829		12.5
240 x 45 x 1.2 x 4000	14.87	420 x 45 x 1.2 x 1829		12.5
240 x 45 x 1.2 x 3000	11.23	500 x 50 x 1.2 x 1219		11
240 x 45 x 1.2 x 2000	7.59	480 x 45 x 1.2 x 1219		10
240 x 45 x 1.2 x 1000	3.94	450 x 45 x 1.2 x 1219		9.5
250 x 50 x 1.2 x 4000	15.67	450 x 38 x 1.2 x 1219		9
250 x 50 x 1.2 x 3000	11.84	420 x 45 x 1.2 x 1219		9
250 x 50 x 1.2 x 2000	8	330 x 50 x 1.2 x 1829		11.5
250 x 50 x 1.2 x 1000	4.15	330 x 50 x 1.2 x 1219		8.5

210 x 45 x 1.1 x 4000	12.75	240 x 45 x 1.1 x 4000		13.97
210 x 45 x 1.1 x 3000	9.62	240 x 45 x 1.1 x 3000		10.54
210 x 45 x 1.1 x 2000	6.38	240 x 45 x 1.1 x 2000		6.99
210 x 45 x 1.1 x 1000	3.2	240 x 45 x 1.1 x 1000		3.5
