| Brand Name: | NO |
|---|---|
| Materials: | Q235 or accordfing to your need |
| Supporting Mode: | scaffolding system |
| Lapping Form: | welding |
| material: | Q235 or accordfing to your need |
| Model Number: | scaffolding parts |
| Place of Origin: | China (Mainland) |
| Name: | Q235 Steel 3070mm Ringlock Scaffolding Reinforced Truss Ledger Double Ledger |
| Item No.: | JSRLL-3070mm |
| Length: | 2570mm |
| Types: | ringlock scaffolding parts |
| Certificate: | ISO 9001 2008 |
| Surface: | painted,hot dip galvanized |
| Payment terms: | TT |
| Packaging: | Bundles;Steel Pallet or According to Customer Request |
| Delivery time: | about 20 days |
| Application: | provides increased horizontal support for planks |
Quick Details
Specifications

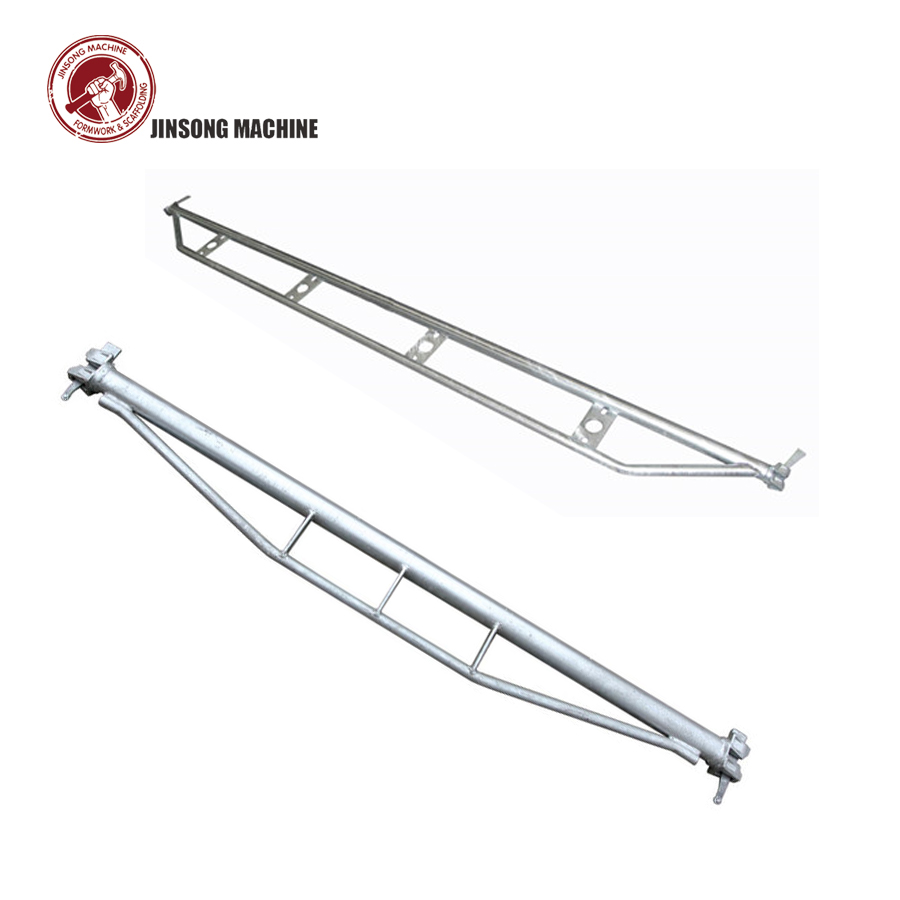

1:Product Name:Q235 Steel 3070mm Ringlock Scaffolding Reinforced Truss Ledger Double Ledger
2:the Related Products:Ringlock Scaffolding Standard,Ringlock Scaffolding Ledger,Ringlock Scaffolding Diagonal Brace,Ringlock Scaffolding Lattice Girder,Ringlock Board Bracket,Ringlock Scaffolding Truss Ledger,Ringlock Scaffolding Steel Stair,Ringlock Scaffolding Base Collar,Ringlock Scaffolding Wall Tie,Ringlock Scaffolding Ladder and Ladder Bracket,Ringlock Scaffolding U-Head Screw Jack and Base Jack and so on.
3:the Packaging:Bundles;Steel Pallet or According to Customer Request
4:the Company Information:
Nanjing Jinsong Machine Casting Co.,Ltd,Our factory is Founded in the year 1997,since year 2010 as a manufacturer of scaffolding and formwork in China.We are located in Nanjing city,centred around Shanghai in the Yangtze delta economic circle.We have facilities covering a total area of 23000 square meters,our employees reach up to 80 staffs,including 5 people of management team,3 engineers,6 quality control(QC),advanced testing laboratory and workers,our annual production reach 5 million lbs of products.
by the principle of " Technology Innovation",we are dedicated to design and produce all kinds of scaffolding products.Our main products include:Ringlock scaffolding system,Cuplock scaffolding system,Kwikstage scaffolding system,Haki scaffolding system,Frame scaffolding system and Steel prop system,which is widely used in major residential,commercial and industrial projects at home and abroad.
We are committed to designing optimal program,high quality products and outstanding service after sales based on satisfaction from customers,considering from the customers' perspective,we strive to create more value for them.
for further information about our scaffold,please contact us by e-mail or call,you will be glad you did.
Material: Q235 high strength steel
It is made of 48.x3x3.2mm tubes,two casting ledger ends welded at two sides with wedges assembled,easy and fast to use for projects.
3.Function:Truss ledger provides increased horizontal support for planks which a single tube or ledger can not provide.
4.Surface coating:Hot dipped galvanized,zinc plating,powder coating,painting or according to your requirements
Dimension,surface(H.D.G/PAinted/E.G),material and style can be customized Item No. Specification Material JSRLL-1570 L=1570mm Q235 JSRLL-2070 L=2070mm Q235 JSRLL-2570 L=2570mm Q235 JSRLL3070 L=3070mm Q235
Ringlock Double Ledger (Q345, 48.3*3.25mm, HotDIppedGAlvanized)
Description |
Length |
Weight (approx.) | ||
Inches |
Mm |
Lb |
Kg | |
3'7" Double Ledger |
42.91 |
1090 |
14.67 |
6.67 |
3'11" Double Ledger |
47.24 |
1200 |
17.80 |
8.09 |
4'11'' Double Ledger |
59.06 |
1500 |
22.29 |
10.13 |
8'5" Double Ledger |
101.18 |
2570 |
34.08 |
15.49 |
2:the Related Products:Ringlock Scaffolding Standard,Ringlock Scaffolding Ledger,Ringlock Scaffolding Diagonal Brace,Ringlock Scaffolding Lattice Girder,Ringlock Board Bracket,Ringlock Scaffolding Truss Ledger,Ringlock Scaffolding Steel Stair,Ringlock Scaffolding Base Collar,Ringlock Scaffolding Wall Tie,Ringlock Scaffolding Ladder and Ladder Bracket,Ringlock Scaffolding U-Head Screw Jack and Base Jack and so on.

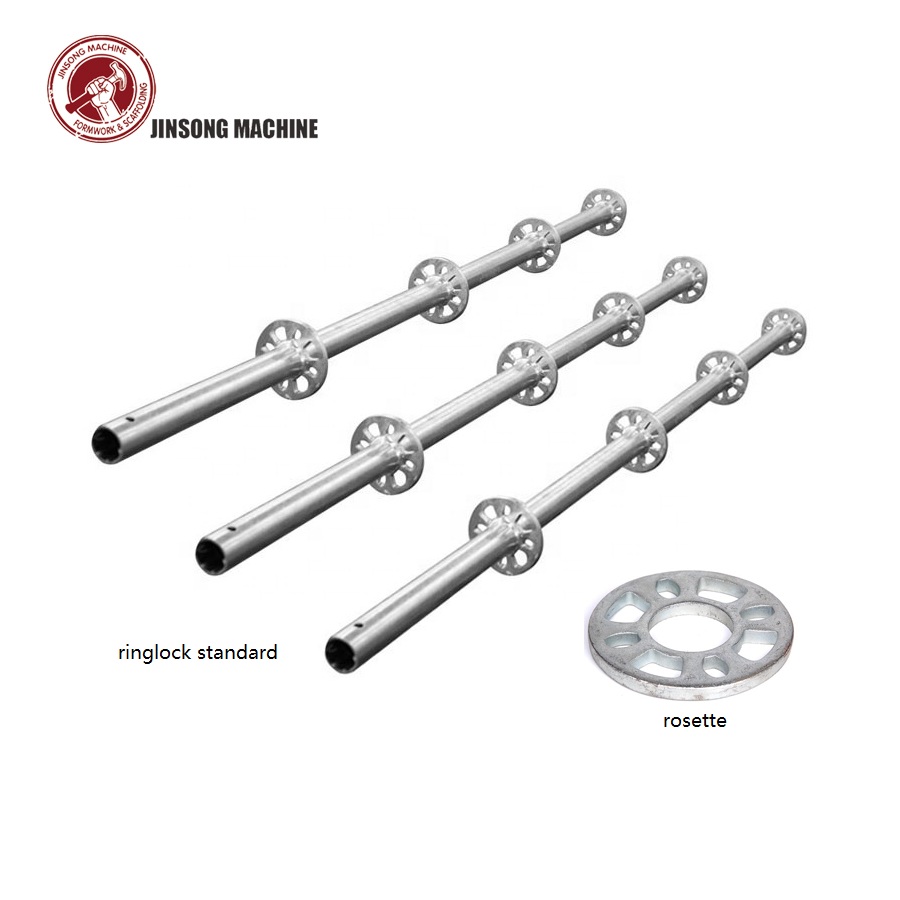

Ringlock Vertical / Standard with Spigot(48.3mm x 3.25mm, Q345, Hot Dipped Galvanized)
Description |
Weight(Painted) |
Weight (Hot-Dipped Galvanized) |
Ring-Lock Standard 500mm |
2.96kg |
3.11kg |
Ring-Lock Standard 1000mm |
5.25kg |
5.51kg |
Ring-Lock Standard 1500mm |
7.5kg |
7.88kg |
Ring-Lock Standard 2000mm |
9.8kg |
10.3kg |
Ring-Lock Standard 2500mm |
12.0kg |
12.6kg |
Ring-Lock Standard 3000mm |
143kg |
15.1kg |
Ring-Lock Standard 4000mm |
|
19.72kg |

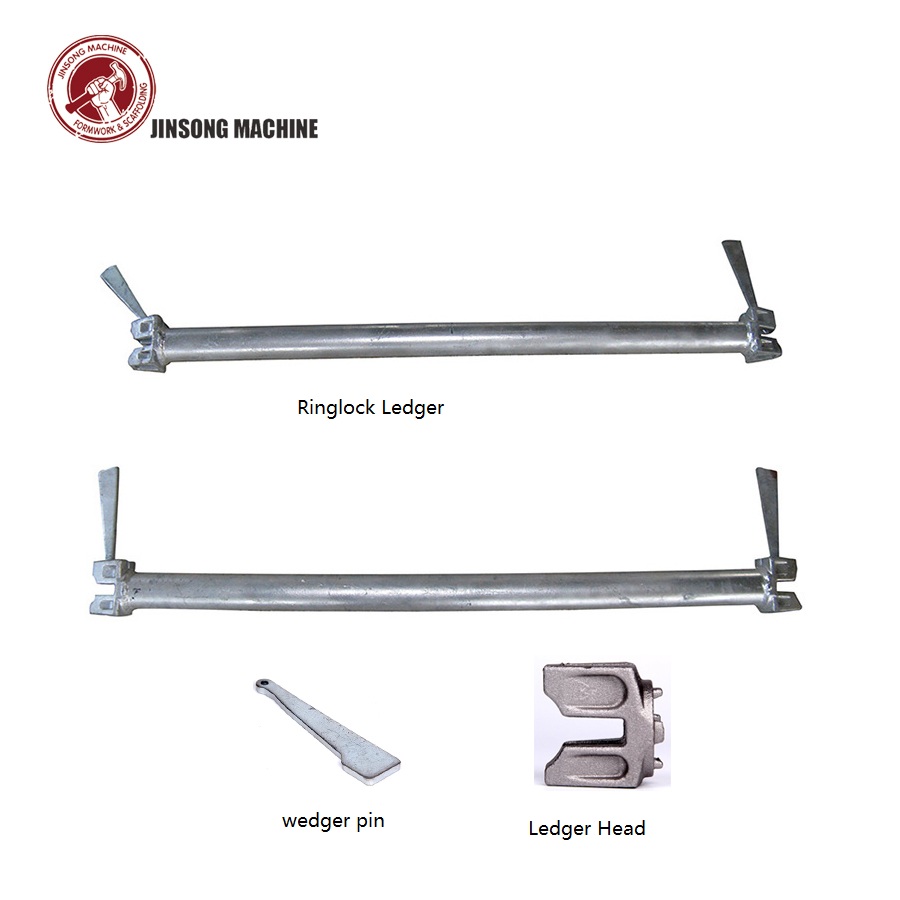

RInglock Horizontal Ledger(48.3mm x 3.0mm, Q345, Hot Dipped Galvanized)
Description |
Weight(Painted) |
Weight (Hot-Dipped Galvanized) |
Ring-Lock Ledger 1000mm |
4.42kg |
4.64kg |
Ring-Lock Ledger 1065mm |
4.65kg |
4.88kg |
Ring-Lock Ledger 1200mm |
5.1kg |
5.36kg |
Ring-Lock Ledger 1500mm |
6.1kg |
6.64kg |
Ring-Lock Ledger 2000mm |
7.75kg |
8.14kg |
Ring-Lock Ledger 2200mm |
8.42kg |
8.84kg |
Ring-Lock Ledger 2500mm |
9.5kg |
9.98kg |
Ring-Lock Ledger 3000mm |
|
12.16kg |
RInglock Diagonal Brace/Cross Brace (48.3mm x 3.2mm, Q345, Hot Dipped Galvanized)
Description |
Weight(Painted) |
Weight (Hot-Dipped Galvanized) |
Ring-Lock Diagonal 1000x2000mm |
|
10.06kg |
Ring-Lock Diagonal 1500x2000mm |
|
10.95kg |
Ring-Lock Diagonal 2000x2000mm |
|
12.13kg |
Ring-Lock Diagonal 2500x2000mm |
|
13.5kg |
Ring-Lock Diagonal 3000x2000mm |
|
15.01kg |
