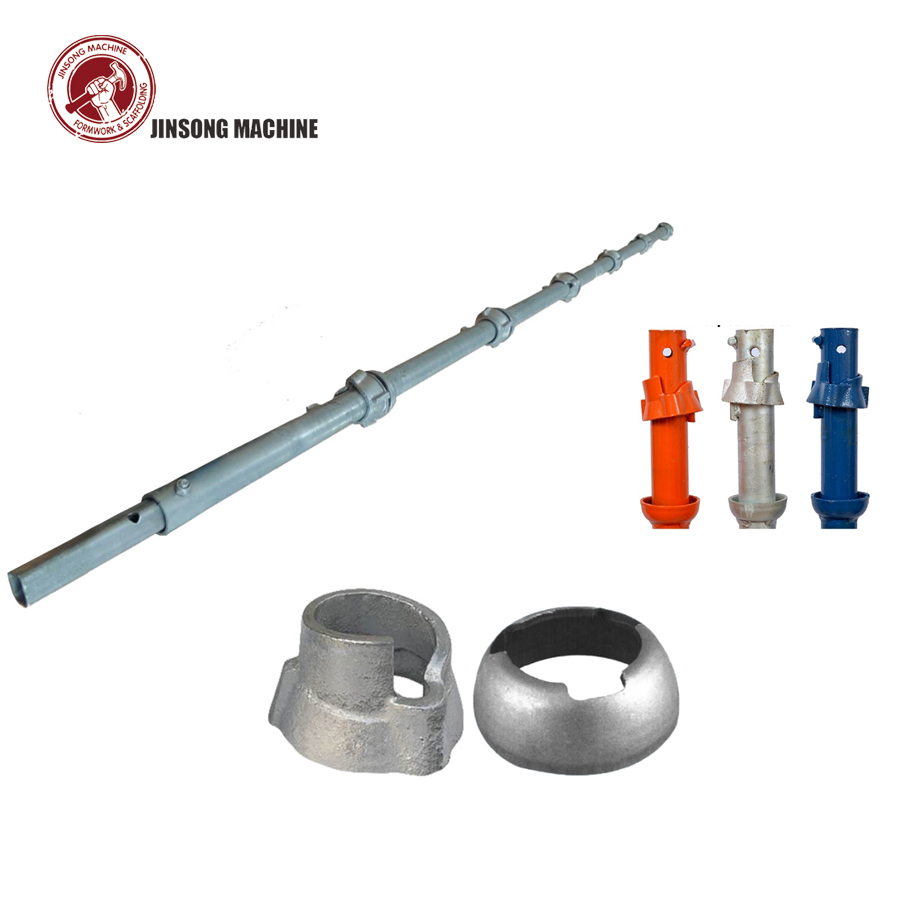

1]:Prodcut Name:Q345 2000mm Construction Accessories Cuplock Scaffolding Vertical Standard

1.Material:Q235,Q345 steel

2.Outside Diameter:48mm

3.Thickness:3.2mm

4.Surface coating:Hot dipped galvanized,zinc plating,powder coating,painting or according to your requirements

5.Function:Standards are the vertical members of cuplock scaffolding.They provide the vertical support for scaffolding.

6.Packing & Delivery: Bundles;Steel Pallet or According to Customer Request

7.Length:500mm,1000mm,1500mm,2000mm,2500mm,3000mm or according to your need

 Dimension,surface(H.D.G/PAinted/E.G),material and style can be customized

Item No.	Specification	Material
JSCS-500	L=500mm	Q345,48x3.2mm
JSCS-1000	L=1000mm	Q345,48x3.2mm
JSCS-1500	L=1500mm	Q345,48x3.2mm
JSCS-2000	L=2000mm	Q345,48x3.2mm
JSCS-2500	L=2500mm	Q345,48x3.2mm
JSCS-3000	L=3000mm	Q345,48x3.2mm

CuplockVertical /Standard(Vertical) (Q345,48.3x3.2mm)

Name	Length	Weight (Kg)
		Self Finish	Painted	Hot Dip Galv.
Standard(Vertical)	L=0.50Mt	2.42	2.50	2.57
Standard(Vertical)	L=1.00Mt	4.84	4.98	5.13
Standard(Vertical)	L=1.30Mt	6.54	6.74	6.93
Standard(Vertical)	L=1.50Mt	7.25	7.47	7.69
Standard(Vertical)	L=1.80Mt	8.96	9.22	9.49
Standard(Vertical)	L=2.00Mt	9.67	9.96	10.25
Standard(Vertical)	L=2.30Mt	11.37	11.71	12.05
Standard(Vertical)	L=2.50Mt	12.08	12.44	12.81
Standard(Vertical)	L=3.00Mt	14.50	14.93	15.37

2]. the Related Products:Cuplock Scaffolding Ledger,Cuplock Scaffolding Diagonal Brace,Cuplock Scaffolding Transom,Cuplock Board Bracket,Cuplock Scaffolding Truss Ledger,Cuplock Scaffolding Steel Stair,Cuplock Scaffolding Base Collar,Cuplock Scaffolding Ladder and Ladder Bracket,Cuplock Scaffolding U-Head Screw Jack and Base Jack and so on.

Cuplock Intermediate Transom (Q235,Q345,48.3x3.2mm)

Name	Length	Weight (Kg)
		Self Finish	Painted	Hot Dip Galv.
Intermediate Transom	L=0.60Mt	3.59	3.70	3.80
Intermediate Transom	L=0.90Mt	4.66	4.80	4.93
Intermediate Transom	L=1.00Mt	5.01	5.16	5.31
Intermediate Transom	L=1.20Mt	5.72	5.90	6.07
Intermediate Transom	L=1.30Mt	6.08	6.26	6.44
Intermediate Transom	L=1.80Mt	7.86	8.09	8.33
Intermediate Transom	L=2.00Mt	8.57	8.83	9.08
Intermediate Transom	L=2.50Mt	10.35	10.66	10.97
Intermediate Transom	L=3.00Mt	12.13	12.49	12.86

CuplockHorizontalLedger (Q345,48.3x3.2mm)

Name	Length	Weight (Kg)
		Self Finish	Painted	Hot Dip Galv.
Ledger(Horizontal)	L=0.60Mt	2.38	2.45	2.52
Ledger(Horizontal)	L=0.90Mt	3.44	3.55	3.65
Ledger(Horizontal)	L=1.00Mt	3.80	3.91	4.03
Ledger(Horizontal)	L=1.20Mt	4.51	4.65	4.78
Ledger(Horizontal)	L=1.30Mt	4.87	5.01	5.16
Ledger(Horizontal)	L=1.50Mt	5.58	5.75	5.91
Ledger(Horizontal)	L=1.80Mt	6.65	6.85	7.05
Ledger(Horizontal)	L=2.00Mt	7.36	7.58	7.80
Ledger(Horizontal)	L=2.50Mt	9.14	9.41	9.69



Cuplock Diagonal Brace (Q235,Q345,48.3x2.5mm)

Name	Length	Weight (Kg)
		Self Finish	Painted	Hot Dip Galv.
Intermediate Transom	L=0.60Mt	3.59	3.70	3.80
Diagonal Brace	L= 1.3Mt	5.22	5.37	5.53
Diagonal Brace	L= 1.8Mt	7.48	7.71	7.93
Diagonal Brace	L=2.5Mt	9.97	10.26	10.56

3:the Packaging:Bundles;Steel Pallet or According to Customer Request



4:the Company Information:Nanjing Jinsong Machine Casting Co.,Ltd,Our factory is Founded in the year 1997,since year 2010 as a manufacturer of scaffolding and formwork in China.We are located in Nanjing city,centred around Shanghai in the Yangtze delta economic circle.We have facilities covering a total area of 23000 square meters,our employees reach up to 80 staffs,including 5 people of management team,3 engineers,6 quality control(QC),advanced testing laboratory and workers,our annual production reach 5 million lbs of products.

by the principle of " Technology Innovation",we are dedicated to design and produce all kinds of scaffolding products.Our main products include:Ringlock scaffolding system,Cuplock scaffolding system,Kwikstage scaffolding system,Haki scaffolding system,Frame scaffolding system and Steel prop system,which is widely used in major residential,commercial and industrial projects at home and abroad.

We are committed to designing optimal program,high quality products and outstanding service after sales based on satisfaction from customers,considering from the customers' perspective,we strive to create more value for them.

for further information about our scaffold,please contact us by e-mail or call,you will be glad you did.
