Product Main

Quick Details

Brand Name: NO
Materials: Q235 or accordfing to your need
Supporting Mode: scaffolding system
Lapping Form: welding
material: Q235 or accordfing to your need
Model Number: scaffolding parts
Place of Origin: China (Mainland)

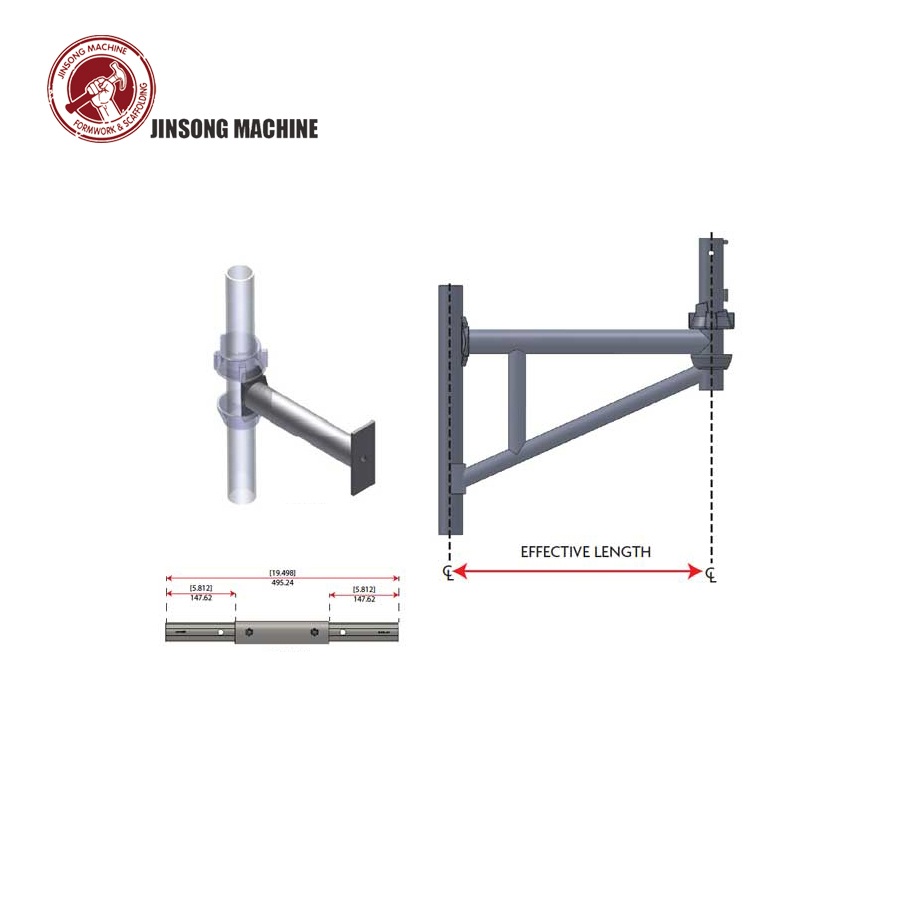

Name: Q235 Scaffolding Material Cuplock Scaffold System Board Bracket
Item No.: JSCBB-290
One Board: 290mm
Two Board: 570mm
Three Board: 800mm
Diameter: 48mm or according to your need
Certificate: ISO 9001 2008
Surface Coating: Bundles;Steel Pallet or According to Customer Request
Delivery time: about 20 days
Application: Support for extension platform

Specifications

1]: Product Name:Q235 Scaffolding Material Cuplock Scaffold System Board Bracket

1. Raw Material: Q235

2. Function : Support for extension platform

3. Surface coating:Hot dipped galvanized,zinc plating,powder coating,painting or according to your requirements

4:Length: One board:290mm,two board:570mm;three board:800mm

 Dimension,surface(H.D.G/PAinted/E.G),material and style can be customized

Item No.

Description

Length

JSCBB-290

One Board

290mm

JSCBB-570

Two Board

570mm

JSCBB-800

Three Board

800mm



CUplockBoard Bracket

Name

Length

Weight (Kg)

Self Finish

Painted

Hot Dip Galv.

Two Board

565mm





6.6

Three Board

795mm





7..6



Q235 Scaffolding Material Cuplock Scaffold System Board Bracket
2]:the Related Products:Cuplock Scaffolding Ledger,Cuplock Scaffolding Diagonal Brace,Cuplock Scaffolding Transom,Cuplock Board Bracket,Cuplock Scaffolding Truss Ledger,Cuplock Scaffolding Steel Stair,Cuplock Scaffolding Base Collar,Cuplock Scaffolding Ladder and Ladder Bracket,Cuplock Scaffolding U-Head Screw Jack and Base Jack and so on.
Q235 Scaffolding Material Cuplock Scaffold System Board Bracket

CuplockVertical /Standard(Vertical) (Q345,48.3x3.2mm)

Name

Length

Weight (Kg)

Self Finish

Painted

Hot Dip Galv.

Standard(Vertical)

L=0.50Mt

2.42

2.50

2.57

Standard(Vertical)

L=1.00Mt

4.84

4.98

5.13

Standard(Vertical)

L=1.30Mt

6.54

6.74

6.93

Standard(Vertical)

L=1.50Mt

7.25

7.47

7.69

Standard(Vertical)

L=1.80Mt

8.96

9.22

9.49

Standard(Vertical)

L=2.00Mt

9.67

9.96

10.25

Standard(Vertical)

L=2.30Mt

11.37

11.71

12.05

Standard(Vertical)

L=2.50Mt

12.08

12.44

12.81

Standard(Vertical)

L=3.00Mt

14.50

14.93

15.37





CuplockHorizontalLedger (Q345,48.3x3.2mm)

Name

Length

Weight (Kg)

Self Finish

Painted

Hot Dip Galv.

Ledger(Horizontal)

L=0.60Mt

2.38

2.45

2.52

Ledger(Horizontal)

L=0.90Mt

3.44

3.55

3.65

Ledger(Horizontal)

L=1.00Mt

3.80

3.91

4.03

Ledger(Horizontal)

L=1.20Mt

4.51

4.65

4.78

Ledger(Horizontal)

L=1.30Mt

4.87

5.01

5.16

Ledger(Horizontal)

L=1.50Mt

5.58

5.75

5.91

Ledger(Horizontal)

L=1.80Mt

6.65

6.85

7.05

Ledger(Horizontal)

L=2.00Mt

7.36

7.58

7.80

Ledger(Horizontal)

L=2.50Mt

9.14

9.41

9.69





Cuplock Intermediate Transom (Q235,Q345,48.3x3.2mm)

Name

Length

Weight (Kg)

Self Finish

Painted

Hot Dip Galv.

Intermediate Transom

L=0.60Mt

3.59

3.70

3.80

Intermediate Transom

L=0.90Mt

4.66

4.80

4.93

Intermediate Transom

L=1.00Mt

5.01

5.16

5.31

Intermediate Transom

L=1.20Mt

5.72

5.90

6.07

Intermediate Transom

L=1.30Mt

6.08

6.26

6.44

Intermediate Transom

L=1.80Mt

7.86

8.09

8.33

Intermediate Transom

L=2.00Mt

8.57

8.83

9.08

Intermediate Transom

L=2.50Mt

10.35

10.66

10.97

Intermediate Transom

L=3.00Mt

12.13

12.49

12.86





Cuplock Diagonal Brace (Q235,Q345,48.3x2.5mm)

Name

Length

Weight (Kg)

Self Finish

Painted

Hot Dip Galv.

Intermediate Transom

L=0.60Mt

3.59

3.70

3.80

Diagonal Brace

L= 1.3Mt

5.22

5.37

5.53

Diagonal Brace

L= 1.8Mt

7.48

7.71

7.93

Diagonal Brace

L=2.5Mt

9.97

10.26

10.56


Cuplock Spigot Connctor

Name

Length

Weight (Kg)

Self Finish

Painted

Hot Dip Galv.

Spigot Connctor

L=0.25Mt

0.69

0.71

0.73



3]: the Packaging:Bundles;Steel Pallet or According to Customer Request
Q235 Scaffolding Material Cuplock Scaffold System Board Bracket

4]: the Company Information:
Nanjing Jinsong Machine Casting Co.,Ltd,Our factory is Founded in the year 1997,since year 2010 as a manufacturer of scaffolding and formwork in China.We are located in Nanjing city,centred around Shanghai in the Yangtze delta economic circle.We have facilities covering a total area of 23000 square meters,our employees reach up to 80 staffs,including 5 people of management team,3 engineers,6 quality control(QC),advanced testing laboratory and workers,our annual production reach 5 million lbs of products.

by the principle of " Technology Innovation",we are dedicated to design and produce all kinds of scaffolding products.Our main products include:Ringlock scaffolding system,Cuplock scaffolding system,Kwikstage scaffolding system,Haki scaffolding system,Frame scaffolding system and Steel prop system,which is widely used in major residential,commercial and industrial projects at home and abroad.

We are committed to designing optimal program,high quality products and outstanding service after sales based on satisfaction from customers,considering from the customers' perspective,we strive to create more value for them.

for further information about our scaffold,please contact us by e-mail or call,you will be glad you did.
