| Brand Name: | NO |
|---|---|
| Materials: | Q235 or accordfing to your need |
| Supporting Mode: | cuplock scaffolding system |
| Lapping Form: | welding |
| material: | Q235 or accordfing to your need |
| Model Number: | scaffolding parts |
| Place of Origin: | China (Mainland) |
| Name: | Galvanized Q235 1000mm Cuplock Scaffolding System parts of Transom |
| Item No.: | JSCT-1000 |
| Diameter: | 48mm |
| Thickness: | 3.2mm |
| Certificate: | ISO 9001 2008 |
| Standard: | EN74/BS1139/AS1576 |
| Types: | Scaffodling Parts |
| Surface Coating: | Hot dipped galvanized,electric galvanized,painting |
| Packaging: | bundles or steel pallet |
| Application: | provides a safe mid-day support for scaffolding walking board |
Quick Details
Specifications
1]:Product Name:Galvanized Q235 1000mm Cuplock Scaffolding System parts of Transom
2]:the Related Products:Cuplock Scaffolding Ledger,Cuplock Scaffolding Diagonal Brace,Cuplock Scaffolding Transom,Cuplock Board Bracket,Cuplock Scaffolding Truss Ledger,Cuplock Scaffolding Steel Stair,Cuplock Scaffolding Base Collar,Cuplock Scaffolding Ladder and Ladder Bracket,Cuplock Scaffolding U-Head Screw Jack and Base Jack and so on.
3:the Packaging:Bundles;Steel Pallet or According to Customer Request
4]: the Company Information:
Nanjing Jinsong Machine Casting Co.,Ltd,Our factory is Founded in the year 1997,since year 2010 as a manufacturer of scaffolding and formwork in China.We are located in Nanjing city,centred around Shanghai in the Yangtze delta economic circle.We have facilities covering a total area of 23000 square meters,our employees reach up to 80 staffs,including 5 people of management team,3 engineers,6 quality control(QC),advanced testing laboratory and workers,our annual production reach 5 million lbs of products.
by the principle of " Technology Innovation",we are dedicated to design and produce all kinds of scaffolding products.Our main products include:Ringlock scaffolding system,Cuplock scaffolding system,Kwikstage scaffolding system,Haki scaffolding system,Frame scaffolding system and Steel prop system,which is widely used in major residential,commercial and industrial projects at home and abroad.
We are committed to designing optimal program,high quality products and outstanding service after sales based on satisfaction from customers,considering from the customers' perspective,we strive to create more value for them.
for further information about our scaffold,please contact us by e-mail or call,you will be glad you did.
1. Raw Material: Q235
2. Function :
1)Intermediate transom provides a safe MID-day support for scaffolding walking board.
2) Scaffolding intermediate transom holds the ledgers in their jaw sections and prevent the central bending of the platform boards.
3) Intermediate transom can support the span of the walking board for accessing or working.
3. Surface coating:Hot dipped galvanized,zinc plating,powder coating,painting or according to your requirements
4.Thickness:3.2mm
5.Length:1000mm,1200mm,1300mm,1500mm,1800mm,2000mm
Dimension,surface(H.D.G/PAinted/E.G),material and style can be customized Item No. Material Length JSCT-1000 Q235,Q345 48x3.2mm 1000mm JSCT-1200 Q235,Q345 48x3.2mm 1200mm JSCT-1300 Q235,Q345 48x3.2mm 1300mm JSCT-1500 Q235,Q345 48x3.2mm 1500mm JSCT-1800 Q235,Q345 48x3.2mm 1800mm JSCT-2000 Q235,Q345 48x3.2mm 2000mm
Cuplock Intermediate Transom (Q235,Q345,48.3x3.2mm)
Name |
Length |
Weight (Kg) | ||
Self Finish |
Painted |
Hot Dip Galv. | ||
Intermediate Transom |
L=0.60Mt |
3.59 |
3.70 |
3.80 |
Intermediate Transom |
L=0.90Mt |
4.66 |
4.80 |
4.93 |
Intermediate Transom |
L=1.00Mt |
5.01 |
5.16 |
5.31 |
Intermediate Transom |
L=1.20Mt |
5.72 |
5.90 |
6.07 |
Intermediate Transom |
L=1.30Mt |
6.08 |
6.26 |
6.44 |
Intermediate Transom |
L=1.80Mt |
7.86 |
8.09 |
8.33 |
Intermediate Transom |
L=2.00Mt |
8.57 |
8.83 |
9.08 |
Intermediate Transom |
L=2.50Mt |
10.35 |
10.66 |
10.97 |
Intermediate Transom |
L=3.00Mt |
12.13 |
12.49 |
12.86 |
2]:the Related Products:Cuplock Scaffolding Ledger,Cuplock Scaffolding Diagonal Brace,Cuplock Scaffolding Transom,Cuplock Board Bracket,Cuplock Scaffolding Truss Ledger,Cuplock Scaffolding Steel Stair,Cuplock Scaffolding Base Collar,Cuplock Scaffolding Ladder and Ladder Bracket,Cuplock Scaffolding U-Head Screw Jack and Base Jack and so on.
CuplockVertical /Standard(Vertical) (Q345,48.3x3.2mm)
Name |
Length |
Weight (Kg) | ||
Self Finish |
Painted |
Hot Dip Galv. | ||
Standard(Vertical) |
L=0.50Mt |
2.42 |
2.50 |
2.57 |
Standard(Vertical) |
L=1.00Mt |
4.84 |
4.98 |
5.13 |
Standard(Vertical) |
L=1.30Mt |
6.54 |
6.74 |
6.93 |
Standard(Vertical) |
L=1.50Mt |
7.25 |
7.47 |
7.69 |
Standard(Vertical) |
L=1.80Mt |
8.96 |
9.22 |
9.49 |
Standard(Vertical) |
L=2.00Mt |
9.67 |
9.96 |
10.25 |
Standard(Vertical) |
L=2.30Mt |
11.37 |
11.71 |
12.05 |
Standard(Vertical) |
L=2.50Mt |
12.08 |
12.44 |
12.81 |
Standard(Vertical) |
L=3.00Mt |
14.50 |
14.93 |
15.37 |
CuplockHorizontalLedger (Q345,48.3x3.2mm)
Name |
Length |
Weight (Kg) | ||
Self Finish |
Painted |
Hot Dip Galv. | ||
Ledger(Horizontal) |
L=0.60Mt |
2.38 |
2.45 |
2.52 |
Ledger(Horizontal) |
L=0.90Mt |
3.44 |
3.55 |
3.65 |
Ledger(Horizontal) |
L=1.00Mt |
3.80 |
3.91 |
4.03 |
Ledger(Horizontal) |
L=1.20Mt |
4.51 |
4.65 |
4.78 |
Ledger(Horizontal) |
L=1.30Mt |
4.87 |
5.01 |
5.16 |
Ledger(Horizontal) |
L=1.50Mt |
5.58 |
5.75 |
5.91 |
Ledger(Horizontal) |
L=1.80Mt |
6.65 |
6.85 |
7.05 |
Ledger(Horizontal) |
L=2.00Mt |
7.36 |
7.58 |
7.80 |
Ledger(Horizontal) |
L=2.50Mt |
9.14 |
9.41 |
9.69 |
Cuplock Spigot Connctor
Name |
Length |
Weight (Kg) | ||
Self Finish |
Painted |
Hot Dip Galv. | ||
Spigot Connctor |
L=0.25Mt |
0.69 |
0.71 |
0.73 |
CUplockBoard Bracket
Name |
Length |
Weight (Kg) | ||
Self Finish |
Painted |
Hot Dip Galv. | ||
Two Board |
565mm |
|
|
6.6 |
Three Board |
795mm |
|
|
7..6 |
Jack Base:
Screw Rod |
Plate |
Weight |
M30(Solid) x 600mm |
120mm x 120mm x 4mm |
3.58kg |
M32(Solid) x 600mm |
140mm x 140mm x 4mm |
4.17kg |
M34(Solid) x 600mm |
150mm x 150mm x mm |
4.94kg |
38(Hollow) x 4 x 600mm |
150mm x 150mm x 5mm |
3.39kg |

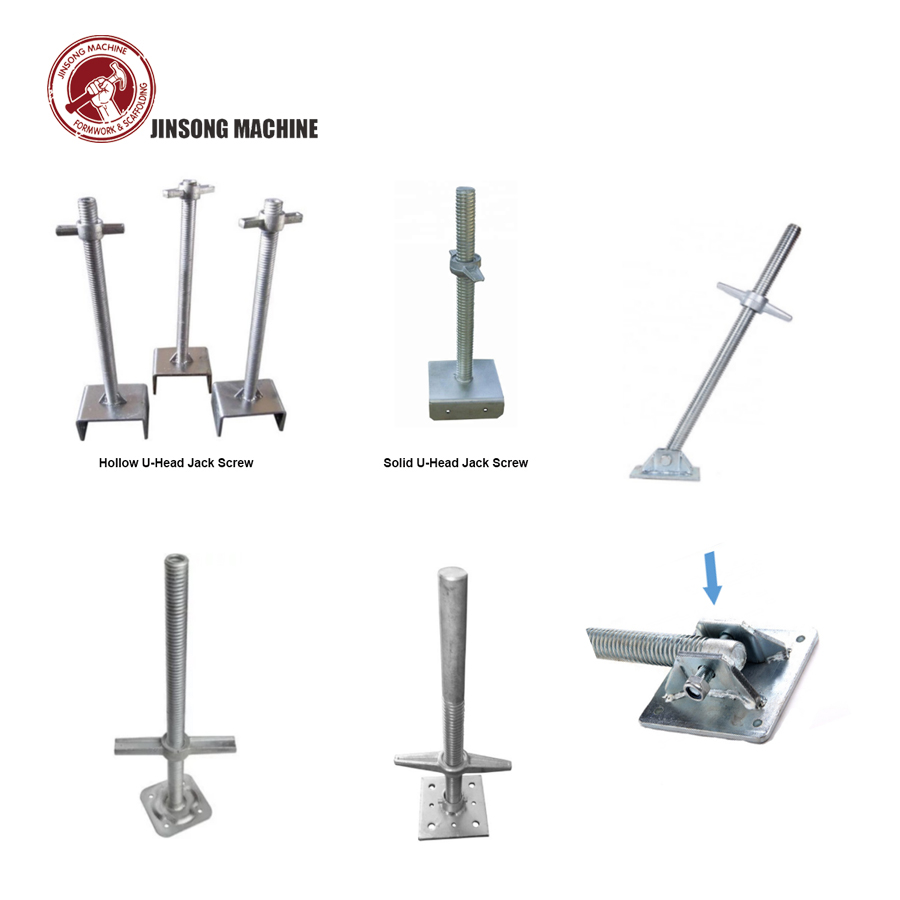

U-head Jack Base :
Screw Rod |
U-Head |
Weight |
M30(Solid) x 600mm |
120mm x 150mm x 50mm x 4mm |
4.08kg |
M32(Solid) x 600mm |
120mm x 150mm x 50mm x 4mm |
4.51kg |
M34(Solid) x 600mm |
120mm x 150mm x 50mm x 4mm |
5.24kg |
38(Hollow) x 4 x 600mm |
150mm x 150mm x 50mm x 6mm |
4.29kg |
