Brand Name: | NO |
---|---|
Materials: | Q235 or accorrding to your need |
Supporting Mode: | scaffolding system |
Lapping Form: | welding |
material: | Q235 or accordfing to your need |
Model Number: | Kwikstage scaffolding parts |
Place of Origin: | China (Mainland) |

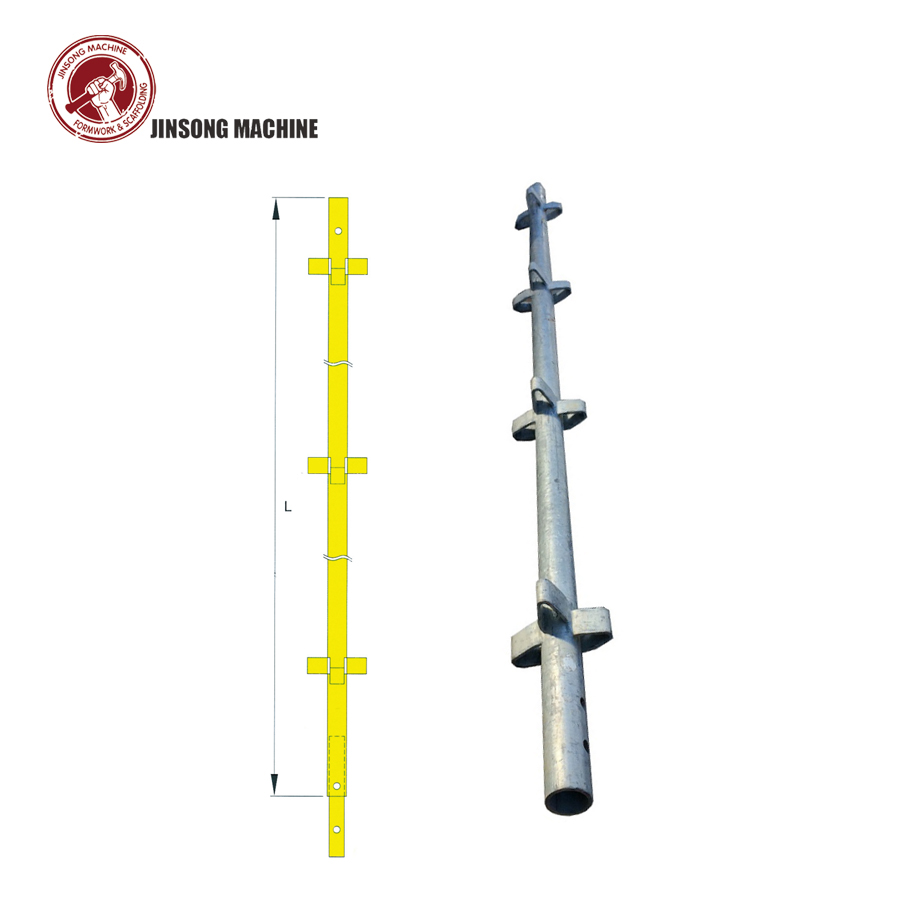

Name: | Construction Steel EN74 Australian Vertical Standards for Kwikstage Scaffolding |
Diameter: | 48.3mm |
Thickness: | 4mm |
Length: | 500mm,3000mm or according to your need |
Certificate: | ISO 9001 2008 |
Standard: | EN74 |
Types: | kwikstage scaffolding parts |
Surface Coating: | Hot dipped galvanized,electric galvanized,painting |
Packaging: | bundles or steel pallet |
Application: | Vertical standard is the vertical support |
Quick Details
Specifications
1. Raw Material: Q235
2.Outside Diameter:48.3mm
3.Thickness:4mm
4. Function : Vertical standard is the vertical support, and are made from 48.3mm diameter scaffold
Tube. They have several series of V presses welded on to provide a location for Ledgers
Transoms and Brace.
5. Surface coating:Hot dipped galvanized,zinc plating,powder coating,painting or according to your requirements
6.Length:500mm,1000mm,1500mm,2000mm,2500mm,3000mm
Dimension,surface(H.D.G/PAinted/E.G),material and style can be customized
Item No. |
Material |
L(mm) |
JSKS-500 |
Q235,48.3x4mm |
500mm |
JSKS-1000 |
Q235,48.3x4mm |
1000mm |
JSKS-1500 |
Q235,48.3x4mm |
1500mm |
JSKS-2000 |
Q235,48.3x4mm |
2000mm |
JSKS-2500 |
Q235,48.3x4mm |
2500mm |
JSKS-3000 |
Q235,48.3x4mm |
3000mm |
Size |
Length |
Weight(Painted) |
Weight (Hot-Dipped Galvanized) |
0.5M |
495.3mm |
3.53kg |
3.63kg |
1.0M |
990.6mm |
6.37kg |
6.56kg |
1.5M |
1485.9mm |
9.21kg |
9.48kg |
2.0M |
1981.2mm |
12.02kg |
12.40kg |
2.5M |
2476.5mm |
14.86kg |
15.33kg |
3.0M |
2971.8mm |
17.70kg |
18.25kg |
2:the Related Products:Kwikstage Scaffolding Standard,Kwikstage Scaffolding Ledger,Kwikstage Scaffolding Diagonal Brace,Kwikstage Scaffolding Transom,Kwikstage Scaffolding Bracket,Kwikstage Scaffolding Tie Bar,Kwikstage Scaffolding Steel Stair,Kwikstage Scaffolding Base Collar,Kwikstage Scaffolding Ladder,Kwikstage Scaffolding U-Head Screw Jack and Base Jack and so on
Kwikstage Ledger I Painted & Hot dipped galvanized I 48.3*3.0mm
Size |
Length |
Weight(Painted) |
Weight (Hot-Dipped Galvanized) |
0.5M |
560.0mm |
2.79kg |
2.87kg |
0.7M |
760.0mm |
3.48kg |
3.58kg |
0.8M |
812.0mm |
3.66kg |
3.76kg |
1.0M |
1000.0mm |
4.31kg |
4.44kg |
1.2M |
1270.0mm |
5.24kg |
5.39kg |
1.8M |
1828.0mm |
7.17kg |
7.38kg |
2.4M |
2438.0mm |
9.27kg |
9.54kg |
Kwikstage Diagonal Brace I Painted & Hot dipped galvanized I 48.3*3.0mm
Name |
Length |
Weight(Kg) | ||
Sel Finish |
Painted |
Hot Dip Galv. | ||
Kwikstage Diagonal Brace |
Length:3.6M |
|
14.3 |
15.1 |
Kwikstage Diagonal Brace |
Length:3.2M |
|
12.7 |
13.6 |
Kwikstage Diagonal Brace |
Length:2.9M |
|
11.7 |
12.3 |
Kwikstage Diagonal Brace |
Length:2.7M |
|
11 |
11.7 |
Kwikstage Diagonal Brace |
Length:2.5M |
|
10.1 |
10.6 |
Kwikstage Diagonal Brace |
Length:2.0M |
|
8.5 |
8.9 |
Kwikstage Diagonal Brace |
Length:1.7M |
|
7.9 |
8.2 |
Kwikstage Diagonal Brace |
Length:2.4M |
|
9.7 |
10.2 |
Kwikstage Diagonal Brace |
Length:1.3M |
|
6 |
6.2 |
Kwikstage Metal Plank
Size |
Material |
Weight |
Surface |
Standard |
230*63*1.8*2420mm |
Q235 |
15.04kg |
Pre-Galvanized |
AS1577 |
230*63*1.8*1810mm |
Q235 |
11.58kg |
Pre-Galvanized |
AS1577 |
230*63*1.8*1250mm |
Q235 |
7.9kg |
Pre-Galvanized |
AS1577 |
230*63*1.8*1030mm |
Q235 |
6.65kg |
Pre-Galvanized |
AS1577 |
230*63*1.8*740mm |
Q235 |
5.0kg |
Pre-Galvanized |
AS1577 |
230*63*1.8*540mm |
Q235 |
3.95kg |
Pre-Galvanized |
AS1577 |
Kwikstage Base Jack & U head:
Size |
Surface |
Weight |
Material |
Solid Base Jack M34*650 Plate:150*150*8 |
Galvanized & Painted |
5.92kg |
Q235 |
Solid U Head M34*650 Plate:150*150*50*8 |
Galvanized & Painted |
6.86kg |
Q235 |
Hollow Base Jack M38*4*650 Plate:150*150*8 |
Galvanized & Painted |
4.1kg |
Q235 |
Hollow U-Head M38*4*650 Plate:200*200*50*8 |
Galvanized & Painted |
5.04kg |
Q235 |
3]: the Packaging:Bundles;Steel Pallet or According to Customer Request
