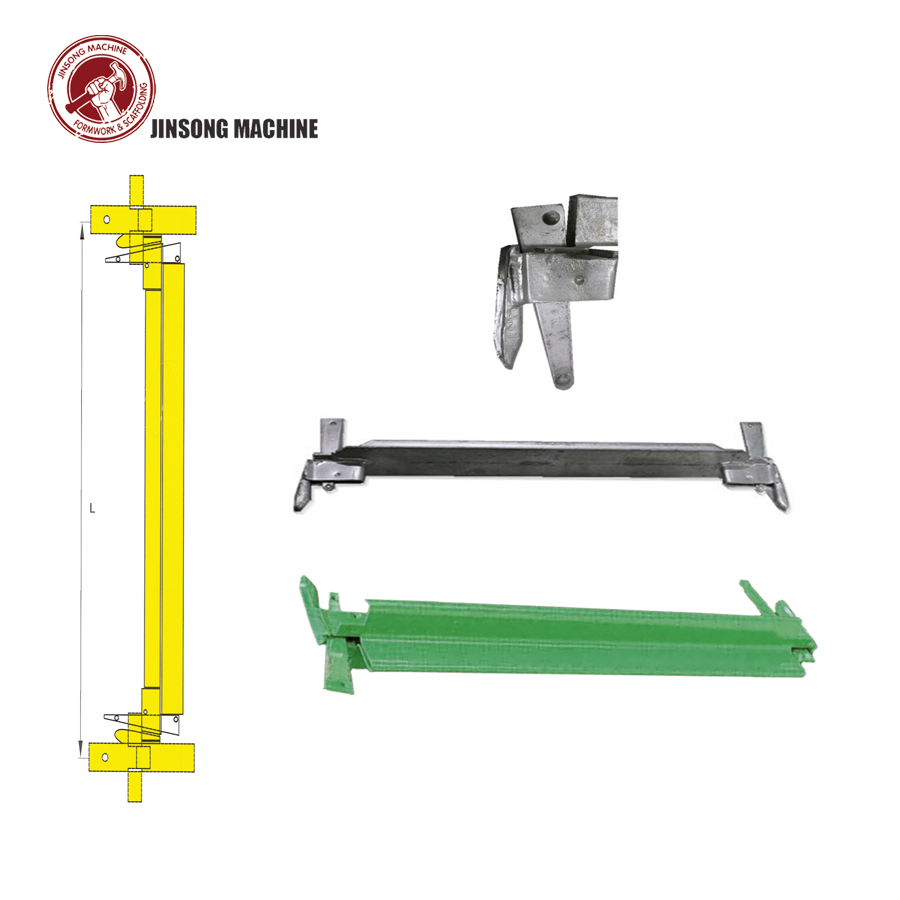

1:Product Name:1000mm Galvanized Kwikstage Scaffolding Component Transom for Construction

Transom
Transoms fit into the lower V pressings on the standards to carry steel boards and secure the
Standards together. The transoms are installed horizontally and at 90 degrees to the ledger.

 1:Material:Q235 or according to your need

 2:Material Size:50x50x5mm

 3:Length:500mm,730mm,1000mm,1270mm,1500mm,1830mm,2440mm,3000mm

Dimension,surface(H.D.G/PAinted/E.G),material and style can be customized

Item No.	Material	L(mm)
JSKT-500	50x50x5mm	500mm
JSKT-730	50x50x5mm	730mm
JSKT-1000	50x50x5mm	1000mm
JSKT-1270	50x50x5mm	1270mm
JSKT-1500	50x50x5mm	1500mm
JSKT-1830	50x50x5mm	1830mm
JSKT-2440	50x50x5mm	2440mm
JSKTB-2440	50x50x5mm	2440mm

2:the Related Products:Kwikstage Scaffolding Standard,Kwikstage Scaffolding Ledger,Kwikstage Scaffolding Diagonal Brace,Kwikstage Scaffolding Transom,Kwikstage Scaffolding Bracket,Kwikstage Scaffolding Tie Bar,Kwikstage Scaffolding Steel Stair,Kwikstage Scaffolding Base Collar,Kwikstage Scaffolding Ladder,Kwikstage Scaffolding U-Head Screw Jack and Base Jack and so on

Kwikstage Standard Painted & Hot dipped galvanized I 48.3*4.0mm

Size	Length	Weight(Painted)	Weight (Hot-Dipped Galvanized)
0.5M	495.3mm	3.53kg	3.63kg
1.0M	990.6mm	6.37kg	6.56kg
1.5M	1485.9mm	9.21kg	9.48kg
2.0M	1981.2mm	12.02kg	12.40kg
2.5M	2476.5mm	14.86kg	15.33kg
3.0M	2971.8mm	17.70kg	18.25kg



Kwikstage Ledger I Painted & Hot dipped galvanized I 48.3*3.0mm

Size	Length	Weight(Painted)	Weight (Hot-Dipped Galvanized)
0.5M	560.0mm	2.79kg	2.87kg
0.7M	760.0mm	3.48kg	3.58kg
0.8M	812.0mm	3.66kg	3.76kg
1.0M	1000.0mm	4.31kg	4.44kg
1.2M	1270.0mm	5.24kg	5.39kg
1.8M	1828.0mm	7.17kg	7.38kg
2.4M	2438.0mm	9.27kg	9.54kg

Kwikstage Diagonal Brace I Painted & Hot dipped galvanized I 48.3*3.0mm

Name	Length	Weight(Kg)
		Sel Finish	Painted	Hot Dip Galv.
Kwikstage Diagonal Brace	Length:3.6M		14.3	15.1
Kwikstage Diagonal Brace	Length:3.2M		12.7	13.6
Kwikstage Diagonal Brace	Length:2.9M		11.7	12.3
Kwikstage Diagonal Brace	Length:2.7M		11	11.7
Kwikstage Diagonal Brace	Length:2.5M		10.1	10.6
Kwikstage Diagonal Brace	Length:2.0M		8.5	8.9
Kwikstage Diagonal Brace	Length:1.7M		7.9	8.2
Kwikstage Diagonal Brace	Length:2.4M		9.7	10.2
Kwikstage Diagonal Brace	Length:1.3M		6	6.2



 Kwikstage Metal Plank

Size	Material	Weight	Surface	Standard
230*63*1.8*2420mm	Q235	15.04kg	Pre-Galvanized	AS1577
230*63*1.8*1810mm	Q235	11.58kg	Pre-Galvanized	AS1577
230*63*1.8*1250mm	Q235	7.9kg	Pre-Galvanized	AS1577
230*63*1.8*1030mm	Q235	6.65kg	Pre-Galvanized	AS1577
230*63*1.8*740mm	Q235	5.0kg	Pre-Galvanized	AS1577
230*63*1.8*540mm	Q235	3.95kg	Pre-Galvanized	AS1577





Kwikstage Base Jack & U head:

Size	Surface	Weight	Material
Solid Base Jack M34*650 Plate:150*150*8	Galvanized & Painted	5.92kg	Q235
Solid U Head M34*650 Plate:150*150*50*8	Galvanized & Painted	6.86kg	Q235
Hollow Base Jack M38*4*650  Plate:150*150*8	Galvanized & Painted	4.1kg	Q235
Hollow U-Head M38*4*650  Plate:200*200*50*8	Galvanized & Painted	5.04kg	Q235

3:the Packaging:Bundles;Steel Pallet or According to Customer Request

4:the Company Information:
Nanjing Jinsong Machine Casting Co.,Ltd,we are a factory,it is Founded in the year 1997,since year 2010 as a manufacturer of scaffolding and formwork in China.We are located in Nanjing city,centred around Shanghai in the Yangtze delta economic circle.We have facilities covering a total area of 23000 square meters,our employees reach up to 80 staffs,including 5 people of management team,3 engineers,6 quality control(QC),advanced testing laboratory and workers,our annual production reach 5 million lbs of products.

by the principle of " Technology Innovation",we are dedicated to design and produce all kinds of scaffolding products.Our main products include:Ringlock scaffolding system,Cuplock scaffolding system,Kwikstage scaffolding system,Haki scaffolding system,Frame scaffolding system and Steel prop system,which is widely used in major residential,commercial and industrial projects at home and abroad.

We are committed to designing optimal program,high quality products and outstanding service after sales based on satisfaction from customers,considering from the customers' perspective,we strive to create more value for them.

for further information about our scaffold,please contact us by e-mail or call,you will be glad you did.
