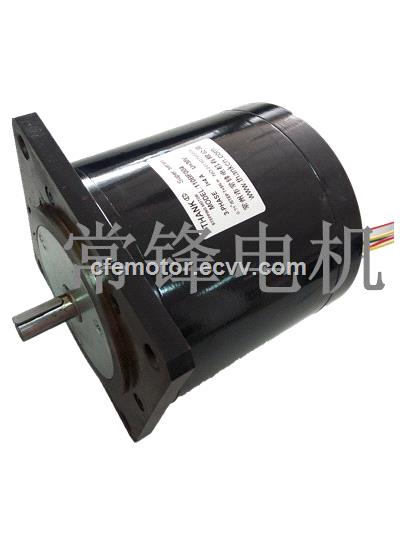

VR Type Stepper Motor 110BF004

Application:

Widely used CNC machine Tools, Package machinery, Textile machinery, Engraving machine, Wire-stripping Machine, Marking machine, Cutting machine, Laser photocomposing machine, Plotting instrument, Medical equipment, Printer, Embroidery machine, Stage Lighting, and other industries automatic assembly equipment.



General Specification:

Step Angle	1.5/ 0.75 (full Step,Half step)
Step Angle Accuracy	+/-5% (full step, no-load)
Temperature Rise	80( rated current 2 Phases on)
Ambient Temperature Range	-20~ +50
Insulation Resistance	100M Min. 500VDC
Dielectric Strength	950VAC 50Hz 1mA 1Min.
Radial Play	0.02mmMax. (300N)
End Play	0.08mmMax. (60N)
Max. Radial force	300N (20mm from the flange)
Max. Axial force	60N
Rotation	CW(See from Front Flange)
Insulation Grade	F grade

Electrical Specifications:

Model	110BF004
Rated Voltage	30V
Rated Current	4A
Phase Resistance	3.5
Phase Inductance	30mH
Holding Torque	5N.M
No Load Run Frequency	12 kHz
Rotor Inertia	3.75kg.Cm2
Motor Weight	5.5kgs

*Shown in the table is the representative Product. It can be customized according to the requirements of users.



Wiring method:

Air connection plug-in for the motor, the connection method is as Following.

1,2A,A  3,4B,B 5,6C,C  7Grounding(frame)



Pls. Pay attention to:

1. the motor keeps 1 year warranty since the delivery date.

2. the motor should be kept in warehouse which is -20 to +40, and the Relative humidity is not large than 90%. Also, there is no corrosive gas in the air.
