| Electrical Specifications |
|
| Model |

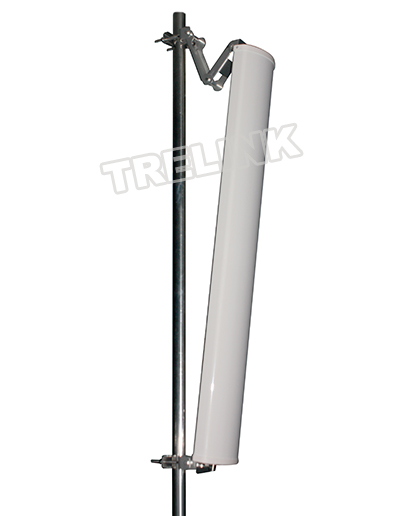

TLSP-5158-16-120VH-2N |
| Frequency Range |
5150-5850 MHz |
| Gain |
16 dBi |
| VSWR |
1.8:1 |
| Polarization |
Horizontal and Vertical |
| Horizontal Beamwidth |
120 |
| Vertical Beamwidth |
11 |
| F/B Ratio: |
25 dB |
| Port to Port Isolation: |
-28 dB |
| Input Impedance |
50 |
| Maximum Power |
100W |
| Lightning Protection |
DC Ground |
| Mechanical Specifications |
|
| Connector |
2*N Female |
| Antenna Dimension((length*width*height)) |
790*110*60 mm |
| Weight-kg |
2.3 kg /5 lb |
| Radome Material |
UV-PVC |
| Wind Velocity |
210 km/h |
| Working Temperature |
-40~+65 |
| Mounting Pole |
40-60 mm |
