Product Main

Quick Details

Brand Name: TreLink
Input connector type: 2*N Female
Lightning protection: DC Ground
Gain(dBi): 18 dBi
Frequency range(MHz): 5150-5850 MHz
Model Number: TLSP-5158-18-65VH-2N
Place of Origin: China (Mainland)

Specifications

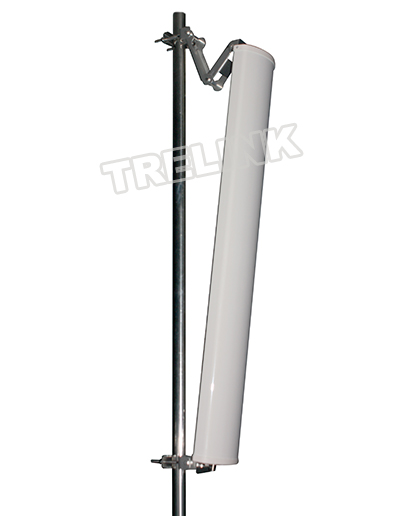

5 GHz 18 dBi 65 degree Dual Polarized MIMO Sector Antenna
Electrical Specifications
Model TLSP-5158-18-65VH-2N
Frequency Range 5150-5850 MHz
Gain 18 dBi
VSWR 1.8:1
Polarization Horizontal and Vertical
Horizontal Beamwidth 65
Vertical Beamwidth 7.2
F/B Ratio: 20 dB
Input Impedance 50
Maximum Power 100W
Lightning Protection DC Ground
Mechanical Specifications
Connector 2*N Female
Antenna Dimension((length*width*height))
790*110*60 mm
Weight-kg 2.3 kg /5 lb
Radome Material UV-PVC
Wind Velocity 210 km/h
Working Temperature -40~+65
Mounting Pole 40-70 mm
