| Brand Name: | JARCH |
|---|---|
| Material: | Contactor Material :: Gold - Gold |
| Voltage: | 240VDC-240VAC |
| Name: | pcb slip rings |
| Certification: | CE,FCC,ROHS |
| Model Number: | JSR-PS028-4S-SP |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
High speed 360 Rotating Electric PCB Pancake slip ring ultra thin 6mm pancace slipring 12 circuits
Features
- Ultra-thin flat slip ring
- Inner diameter:28mm
- Gold alloy brush,gold plated rings
- More thickness available
- OEM is welcome
Quick Details
High speed 360 Rotating Electric PCB Pancake slip ring ultra thin 6mm pancace slipring 12 circuits
| Operating Speed | 0-300 rpm |
| Number of Circuits | 2 ~ 24 |
| Voltage | 240 VAC/DC |
| Current Rating | 10A per circuit |
| Temperature Range | -20Cto +80C |
| Contact Material | Gold to Gold |
| Lead Size | 22# silver plated copper |
| Lead Length | Standard 250 mm(9.843inch) |
| Dielectric Strength | 500 VAC 50Hz, between each circuit |
| Insulation Resistance | 100 M 500 VDC |
| Electrical Noise | 5mMin |

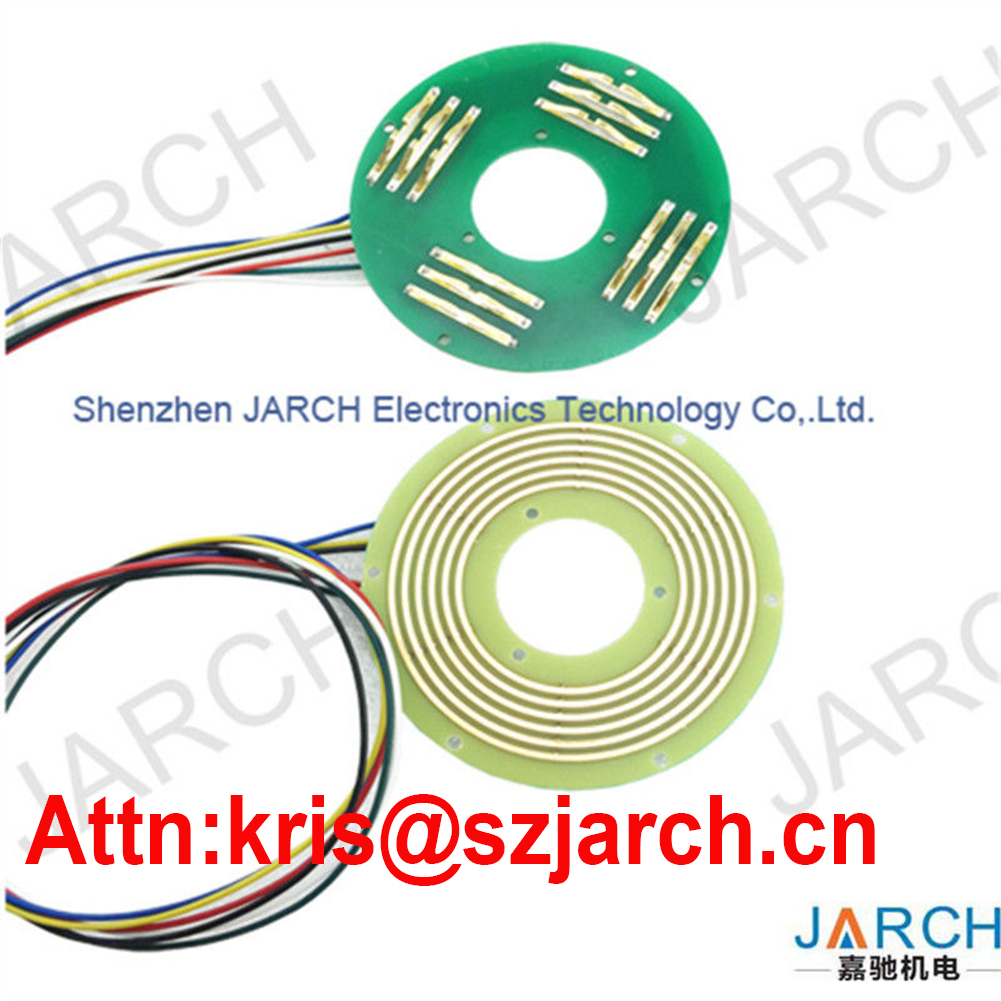

Detailed Images
High speed 360 Rotating Electric PCB Pancake slip ring ultra thin 6mm pancace slipring 12 circuits
