| Cu (Min): | 93% |
|---|---|
| Grade: | 100 |
| Length: | 450-1000mm |
| Shape: | Round |
| Brand Name: | HUAZHONG |
| Alloy Or Not: | Is Alloy |
| Diameter: | 1.6-5.0MM |
| Application: | A/C HVAC |
| Model Number: | HZ-CuP7 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Description
Phosphor copper brazing alloy.
Phos-copper brazing alloy(No silver solder) is base on the raw material with the binary alloy of copper-phosphorus.It has good fluidity,good strength, low cost, perfect processing property. No need to add flux when brazing copper and silver.
this kind of solder is an economical alloy designed for brazing slder and silver alloy,copper and copper alloys,with good flow and technology properties.Self brazing on silver and copper alloys brazing using with associated flux when brazing copper alloys.It's suitable for butt-welding,gas flame welding,hign frequency brazing and some of furnace brazing.Brazing joint with good strength and conductibility.
Standard:
Reference:HZ-CuP7
EN1044:Cp202
DIN8513:L-CuP7
Chemical Composition:Cu93%,P7%
Melting range:710-820
Operating temperature:760-870
Forms:we manufacturing them in many forms:rod,wire,strip,powder,particle,paste,rings,foil and customize.
Application: Suitable for air condition,refrigerator,evaporator,heat exchange and water heater ect.
Packing & Delivery
. It can be made into three shapes:
Round rod: Diameter 1.6mm-5.0mm; Length: 400mm-1000mm
Flat bar: 1.3mm*3.2mm; Length: 400/ 457/500mm;
Square rod: 3.0mm*3.0mm; Length: 500mm;
2. Standard export seaworthy packing: 1kg/bag or 2kg/bag,20kg/carton
3. Based on the customer's different requirements, it can be customized.
NOTE
1. P: phosphorus; Cu: copper; REM: Remain;
2. CWA: China welding association; AWS: America welding Society; DVS: German Welding Society;
3. MOQ( Minimum Order Quantity) is 500KG;
4. the price is based on the copper price when you order, please contact us for the details;
5. Can be made welding ring, brazing different grade joints.
Our Company

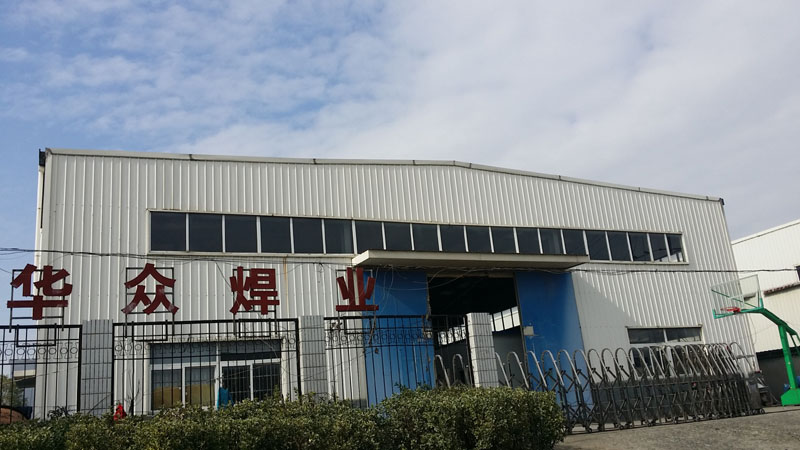

Anhui Huazhong Welding Materials Manufacturing Co.,Ltd
Anhui Huazhong Welding Material Manufacturing Co., Ltd is established in 2004, and located in Hefei--the central City of Anhui Province. We are specialized in manufacturing and producing brazing materials. Our main products include silver-based brazing filler metal, copper-based brazing filler metal, aluminum-based brazing filler metal and associated brazing flux, flux-cored welding wire etc. Our brazing flux products include: silver welding paste, silver welding powder, copper welding paste, copper welding powder, aluminum welding paste, aluminum welding powder, spot welding paste (water), etc. the available shape of brazing alloys are rod, ring, sheet, strip, wire etc.
