| Coating: | PVD |
|---|---|
| Hardness: | 55 |
| Usage: | Thread Turning Tool |
| Material: | Hard Alloy |
| Brand Name: | Bethke |
| Model Number: | internal thread 16IRM series |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

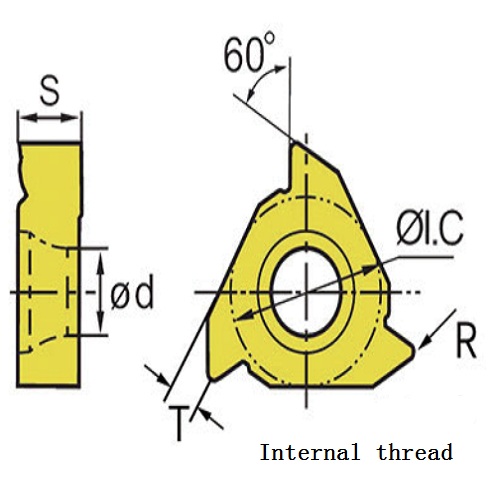

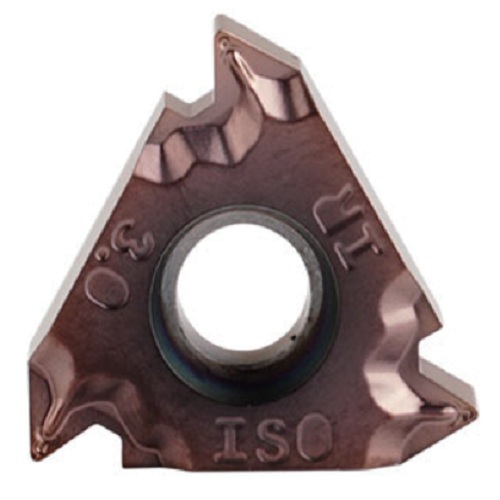

Internal thread 16IRM series turning insert
Model T IC (dia.) S D (dia.) R Pitch
16IRM 1.0 ISO 0.6 9.525 3.52 4 0.08 1.0
16IRM 1.5 ISO 1.0 9.525 3.52 4 0.1 1.5
16IRM 2.0 ISO 1.3 9.525 3.52 4 0.13 2.0
16IRM 2.5 ISO 1.5 9.525 3.52 4 0.17 2.5
16IRM 3.0 ISO 1.5 9.525 3.52 4 0.22 3.0
16IRM 11 W 1.5 9.525 3.52 4 0.3 11W
16IRM 14 W 1.2 9.525 3.52 4 0.23 14W
16IRM AG55 1.5 9.525 3.52 4 0.3 0.5-3.0
16IRM AG60 1.5 9.525 3.52 4 0.3 0.5-3.0Features:
1. Strong and sturdy
2. Work efficiently
3. Smooth chip removal
4. Thick edge
5. Suitable for processing steel and Stainless steel
6. Full-grinding Groove type, good chip removal performance, low cutting resistance, strong Impact resistance, high surface finish, stable and super high life, excellent Performance, complete specifications, and extremely versatile.
