Measuring range(mm)	0.005~0.3	0.015~1.0
Repeatability(um)	0.01	0.04
Precision (um)	0.03	0.1
Size(mm)	201*33*57
Operating environment	0~55
Measuring method	Motorless, Laser diffraction
OLED display	YES
CN/EN switch	YES
MM/UM switch	YES
Data export and print	YES
Data collection and analysis	YES

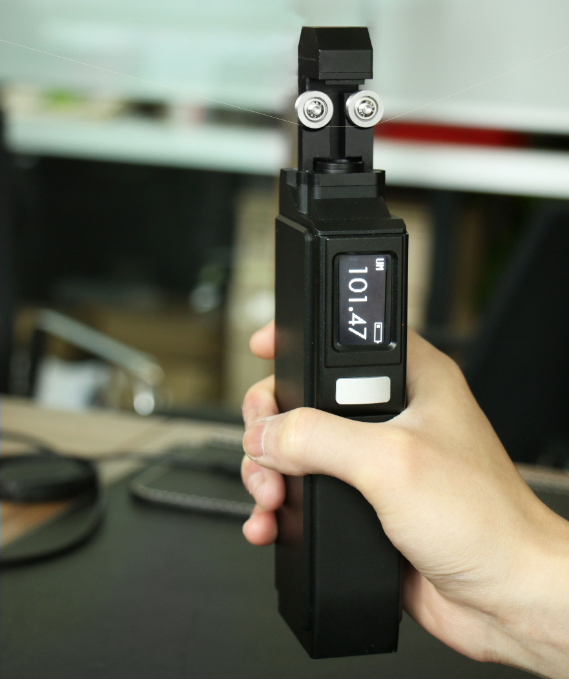

H1 is SCreate Tech's another innovative wire quality control instrument, outer diameter in-line/ off-line laser diffraction micrometer. It is designed in a rugged and compact housing, different with other handheld laser scan micrometers, SCreate Tech's products are no moving parts inside (ie, no rotating motor), allows a long perfect durability. It is using laser diffraction micrometer with patterned software, provides ultra high accuracy of measuring fine wires. The measuring can down to 0.005mm / 5 microns. And it is maintenance free.
