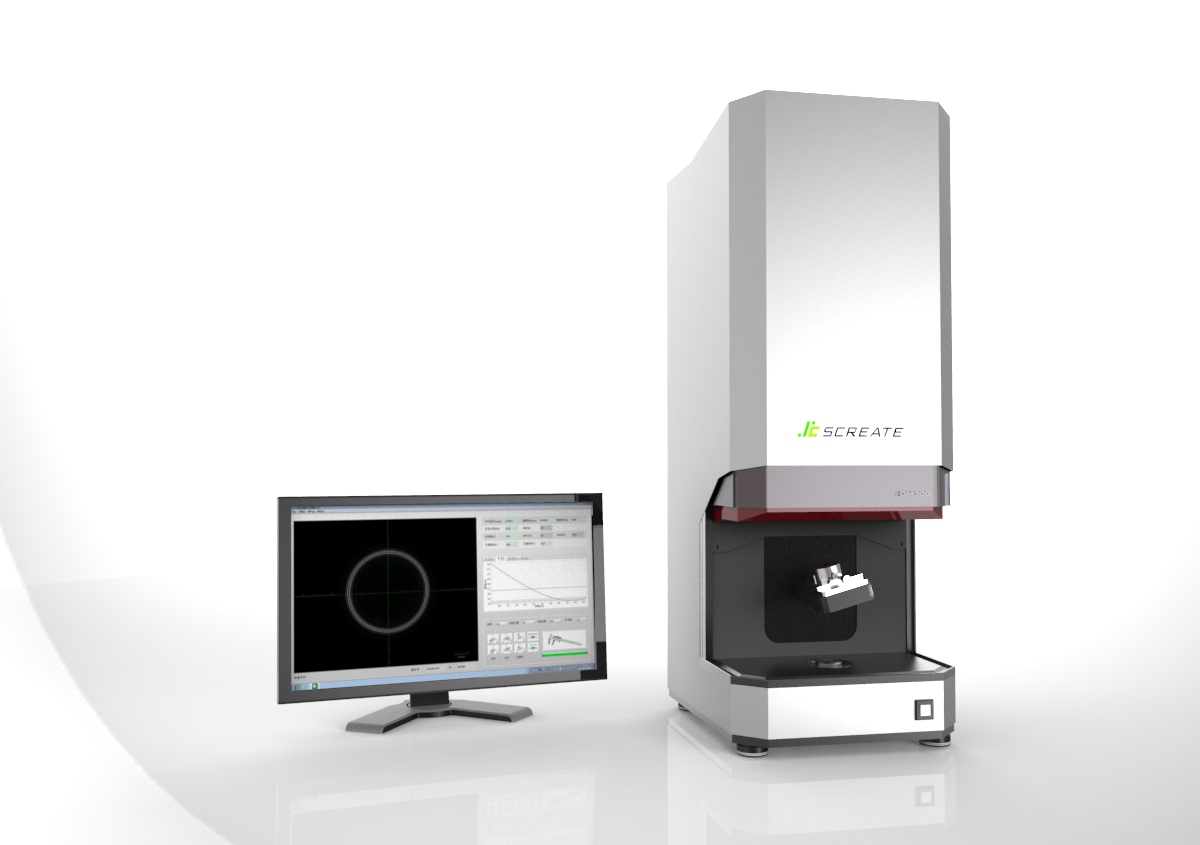

[2D/3D Measurement range ]

LenS magnification	2DmeasurementRange(mm)	2DMeasurementrange(inch)	3DMeasurementrange(mm)	3DMeasurementrange(inch)
20X	0.015-0.200	0.0006-0.0079	0.015-0.035	0.0006-0.0014
10X	0.035 - 0.450	0.0014 - 0.0177	0.035 - 0.110	0.0014-0.0043
4x	0.090-1.200	0.0035-0.0472	0.090-0.500	0.0035-0.0197
3X	0.110 - 1.60	0.0044 - 0.0629	0.110 - 0.800	0.0043-0.0315
1X	0.350 - 5.00	0.0138 - 0.1969	0.400 - 4.500	0.0157-0.1772
0.5X	0.700 - 10.0	0.0276 - 0.3937	0.800- 9.000	0.0315-0.3543

    Note 1: Different lens corresponds to different measurement range, customers can choose according to need;

    Note 2:A machine can be installed 1~3 support lenses;

    Note 3:2Dmeasuring: diameter, ovality;     3Dmeasuring: Reduce Cone Angle, Bearing length,Diameter,ovality,off-angle-X,off-angle-Y;

---

[Accuracy]

Lens magnification	20X	10X	4X	3X	1X	0.5X
2D accuracy4(mm)	0.0004	0.0006	0.0008	0.0009	0.0012	0.0024
2D accuracy(inch)	0.000016	0.000024	0.000031	0.000035	0.000047	0.000094
1D Bearing length5	8%		5%
Reduce Cone Angle6	2		1

    Note⁴:the repeatability is typically 3-5 times better than the accuracy;

    Note⁵:the accuracy is valid for bearing length smaller than 70% of the diameter;

    Note⁶: Reduce Cone Angle between2 - 34 effectively;

---

[Others]

Maximum die external diameter	70mm
Maximum die height range	32mm
Maximum die weight	0.5kg
Measuring report print	Information regarding die inner hole outline,diameter,ovality  and so on
Measuring records	Automatically saved,Custom stored 20.000,available for export in formats of Excel or TXT
Light source calibration	Yes
System calibration	Yes
Software calibration	Yes
Supply interface	Input voltage: 24 VDC Input currnet: 5A
Data interface	USB3.0 (compatible USB2.0)
Operating system	Windows XP / Win7 / Win8
Operating environment	Relative humidity 15~80%,temperature +15~+30, Noise <70dB
Storage environment	Relative humidity 8~80%, temperature 0~+50
Size	410D x 340W x 920H(mm)
Weight	60kg
