| Warranty: | 1 year |
|---|---|
| Brand Name: | FULANG |
| Method: | vibration moulding |
| Processing: | Brick Molding Machine |
| Condition: | New |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE |
| Dimension(L*W*H): | 2060*1730*2580mm |
| Power: | 13.45kw |
| Voltage: | adjustable |
| Model Number: | QTF4-24 |
| Place of Origin: | China (Mainland) |
| Capacity: | 2880-3600 pieces/8hours for the size 400*200*200mm |
| Automatic: | Yes |
| Brick Raw Material: | Cement |
| Type: | Hollow Block Making Machine |
| Brick Raw Material: | cement/concrete/fly ash/cinder |
| Products: | Hollow Bricks/Solid Bricks/Paver |
Quick Details
Specifications
1. Multifunction

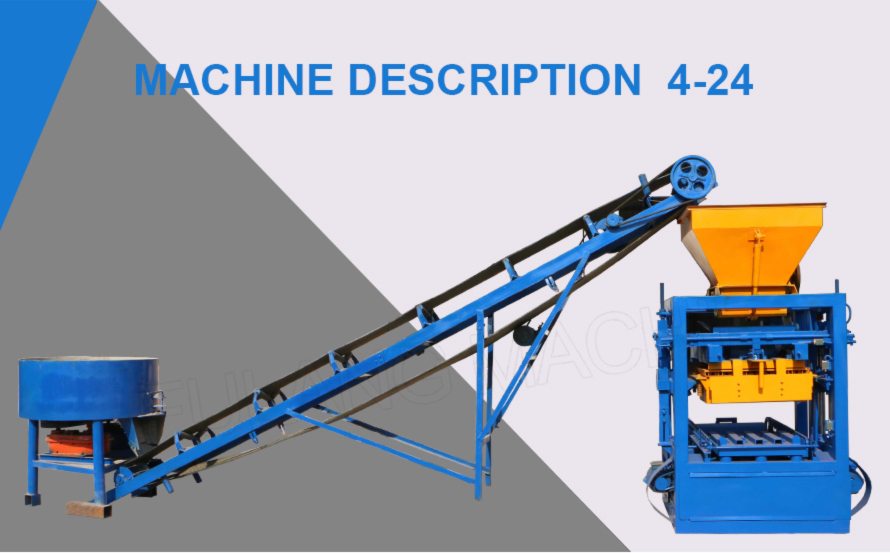

Concrete fly ash hollow brick block making machine can produce different hollow blocks, solid blocks and paving blocks by changing moulds.
2. Advanced Technology
Vibration molding technology is adopted by this machine, so the block machine has more stable and higher-efficiency working status. so the blocks produced by this machine is strong and smooth.
3. High quality mould
the moulds adopt precise wire cutting technology and carburizing treatment technology to prolong service life, elaborate process and rigorous testing ensure that the mold has the best quality.
4. High Output
the efficient production line ensured the large capacity of the machine, it can produce 2160-13440 pieces blocks per day according to block size.
| Technical Parameters | |||
| Dimension of host machine | 2060*1730*2580mm | Voltage | Adjustable |
| Shaping cycle | 24s | Host machine power | 13.45kw |
| Vibration force | 35.5KN | Weight of the machine | 3T |
| Applied products | Hollow, solid and paving blocks | Raw material | Soil/Sand/Cement |
| Pallet size | 850*550*30mm | Mixer model | JQ350 |
| Theoretical Production Capacity | ||
| Size(L*W*H) | Pcs/Mould | Pic/8Hours |
| 400x100x200mm | 7 | 5040-6720 |
| 400x150x200mm | 5 | 3600-4800 |
| 400x200x200mm | 4 | 2880-3600 |
| 400x250x200mm | 3 | 2160-2880 |
| 230x110x70mm | 14 | 10080-13440 |

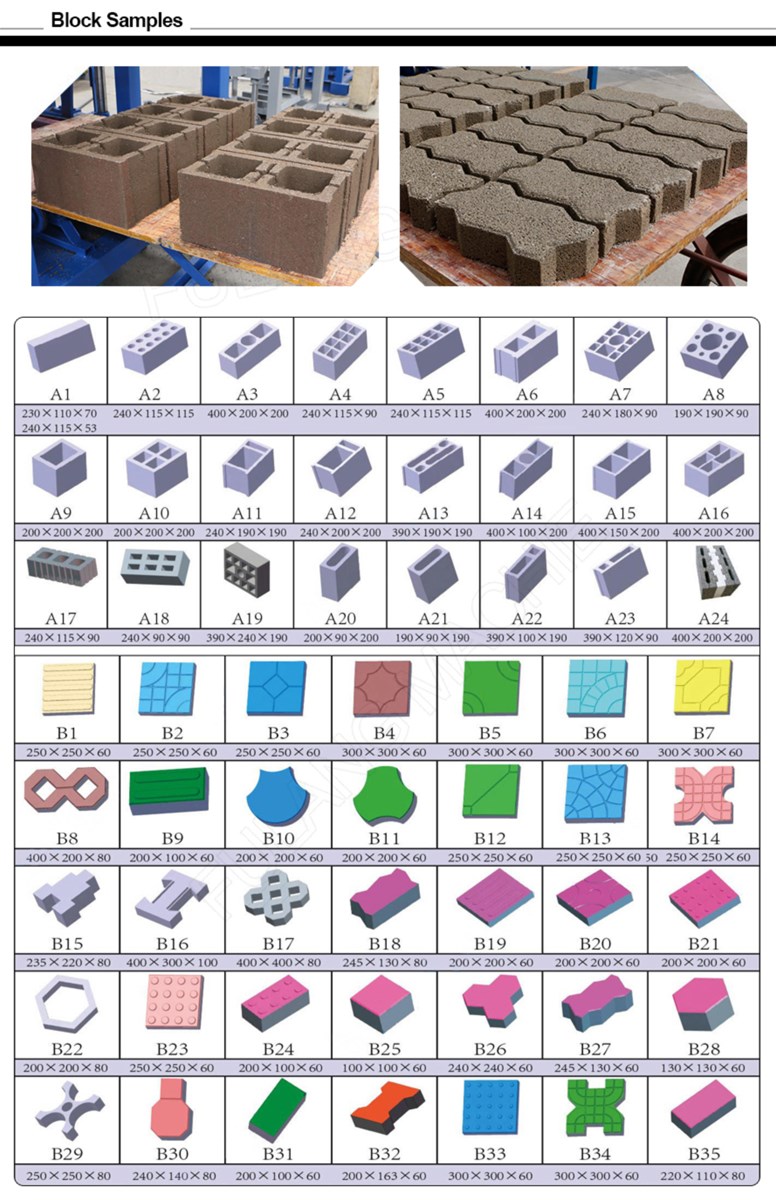

Concrete fly ash hollow brick block making machine can produce various different concrete hollow blocks, solid blocks and paving blocks by changing molds. the following bricks are common brick types. Also we can customize brick moulds for you on base of your specific requirements.

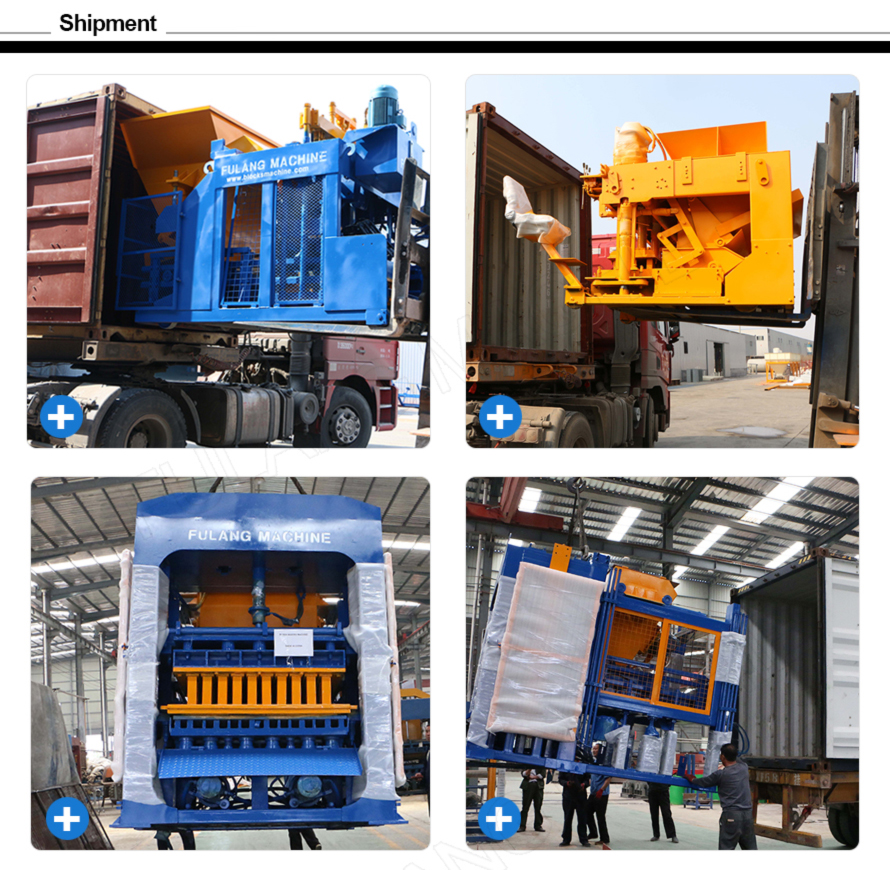

We provide comprehensive pre-sales and after-sales services, and our engineers have the ability to provide overseas installation services. We have a fixed transportation company that provides safe and thoughtful transportation services, and the goods will arrive at the customer's location safely and quickly through the transportation company.
Our products have been certified by many authoritative organizations and enjoy a good reputation in the international market. We are a reliable Chinese brick/block machine supplier.
