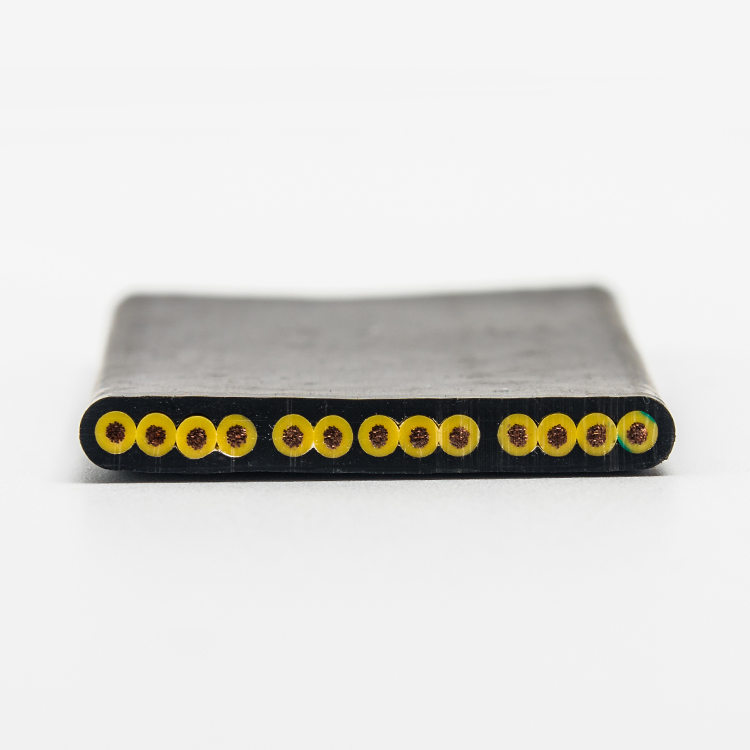

PRoductDEscription



Conductor:  Comply with GB/T3956-1997 the 5 kinds conductor specification requirement. Following DIN VDE 0295 and IEC 228 standard twisted copper wires
Conductor insulation:PVC/D type
Conductor colors:Conductor inuslation color more than 5 cores following GB5023.1-2012 4.2
COnductor structure: Insulation core stranding, grouping seriation

Outer Jacket:PVC/ST5 cold-resistant special sheath,Black(RAL9005)or grey(RAL7001).
Strengthen core: 2PCS steel wire

Standards: GB5023.6-2012 / 60227 IEC 71f(TVVB)



TechnicalPArameters



Rate voltage:U0/U 300/500V
 Test voltage: insulation thickness0.6:1500V,finished product test:2000V.
                        Strength of extensionminimum: testing according to GB5023.2-2008 3.6                             bending radius: cable installtion allowed bending radius should no less than 10 times of cable width.                                                                                                                                                              Static bending test: according to GB5023.2-2012 3.5

Operating temperature:-15- +70
Flame resistance:Pass GB/T18380.1-2001 test and GB5023.6-2012



Product Features



Characteristic

1.Good softness

2.Free hanging length no more than 80 meters,

3.Moving speed is no more than4m/s.

4.Conductor maximum temperature is 70 OC,

5.Normal working temperature is -5 OC~40 OC.



Certification

ROHS,CE



APplication

Cable with special structural design, long working life and maximize the requirement of cable service life, performance, security, safety for elevator manufacturing enterprises, property management company, elevator maintenance, and elevator user
