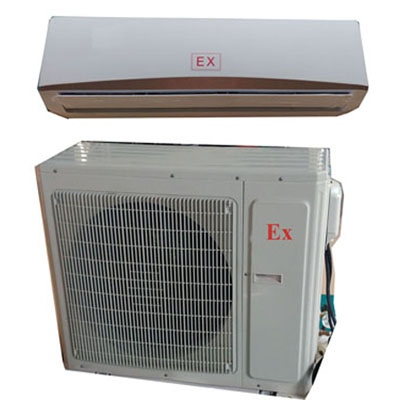

EXplosion ProofsplitWall mount airConditioner
1. Product Features:
1.1. Highly intelligent air conditioner system is with larger Cooling/Heating capacity
1.2. Indoor use of frame structure, LCD display, using ultra-quiet design, the noise is small, fully automatic operating.
1.3. Automatic self-test failure program, automatic switch setting.
1.4. Use of brand-name expansion valve as a throttling element, according to load flexibility in adjusting the refrigerant flowing.
1.5. Use of comedy within the copper tube and the hydrophilic thread fin, heat transfer efficiency is high.
1.6. with brand microcomputer automatic control system, with automatic fault diagnosis function, running, saving time, saving electricity.
1.7. the high quality components are used to ensure the long-term efficient operation goes well.
1.8. the products are used in the hazardous area for the oil, gas, petrochemical, pharmaceutical and marine industries etc.

1.9This type of explosion proof split wall mount air conditioner is up to the standards of the products quality surveillance of national explosion-proof electrification, and has obtained the explosion proof certificate. Such explosion proof split wall mount air conditioners can be used in Used in the hazard area:

 Zone 1,Zone 2,Groups IIA,IIB,IIC (IEC hazard area classification),

Class 1/Division 1,Class 1/Division 2, Group B,C,D area.(NEC hazard area classification).

Category 2G,3G(ATEX hazard area classification)

Suitable used in the temperature range:T1,T2,T3,T4

Explosion-proof mark: Exdmbib BT4, Exdmbib  CT4  .Explosion proof protection can be designed according to the ambient environment.

2.Standards:

this explosion Proof split wall mount air conditioner  are produced based on the explosion proof equipment standards as below:

GB3836.1-2010(Electrical apparatus for explosive gas atmospheres Part one: General requirements and test methods), which is equivalent to IEC60079-0:2007

GB3836.2-2010(Electrical apparatus for explosive gas atmospheres Part two: Flameproof enclosure " d"),which is equivalent to IEC 60079-1:2007

GB3836.4-2010(Electrical apparatus for explosive gas atmospheres Part four: Intrinsic safety " i"),which is equivalent to IEC 60079-11:2006)

GB3836.9-2006(Electrical apparatus for explosive gas atmospheres Part nine: Encapsulation " m"),which is equivalent to IEC 60079-18:2004.

3. Technical data:

  It can use environment refrigerant R407C,R410A,R134A, R22 refrigerant.

  Input voltage:220V/50Hz,110V/60Hz,208-230V/60Hz.

  Cooling Capacity: 2.5 -14kW;  9000-41000BTU/h

  EX  Mark:   Exd mb ib IIBT4,  Exd mb ibCT4

Ambient temperature:-7 - 43,-7 - 52,-7 - 60
