| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |
| Certification: | CE |
| Brand Name: | leadsmt |
| Condition: | New |
| Weight: | 1000kg |
| Power(W): | 1.5KW |
| Voltage: | 220v |
| Model Number: | LEAD-2208p |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
The following example is for you reference.
1.Brief Introduction:

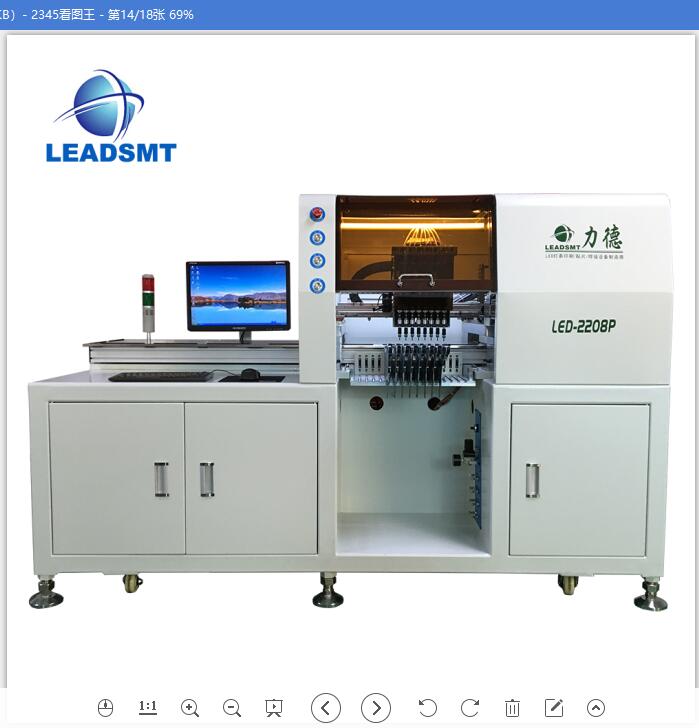

High speed pick and place machine: 8 heads, 40000-60000CPH, working for led tube, led bulb, led strip, led panel light, led street light...
2.Techincal parameters:
Item
LED-2208P
Mounting Heads
8 pieces
Stable practical Speed
40000cph
Max Speed
60000cph
The accuracy of screw rod positioning
0.005
Max Mounting pcb size
1200mm*400mm(others made by your requirements)
Max moving range
X:1220mm, Y:430mm
Z axis max moving range
10mm
pick and place components size
All above0603 leds like 1206,2014,3014,2835,3528,5050,5730,7070etc and resistors, IC, capacitors
Nozzles rotate angles
360 can pick and place any sizes of components
Max No. of Feeders
16 pieces
Feeder types
Pneumatic drive
Feeder sizes available
8mm,12mm,16mm, 24mm ,32mm
Operation System
Windows XP or Windows 7
Programming Method
PC and Visual Camera position
Dimensions
L2000*W950*H1500(MM)
Net Weight
Approx 900kg
Air Pressure
0.6MPa (6kgf/cm2)
Power Supply
Single Phase ,220V, 50/60Hz, 1.0 KW
3.Performance features:
1) High speed, and suitable for all kind of led lamps.
2) Adopting advanced world famous brand components in machine parts .
3) 2018 hot sale pick and place machine model.
4) Sold to more 32 oversea countries.
5) Professional sales and engineer team support service.
