ProcessesDescription

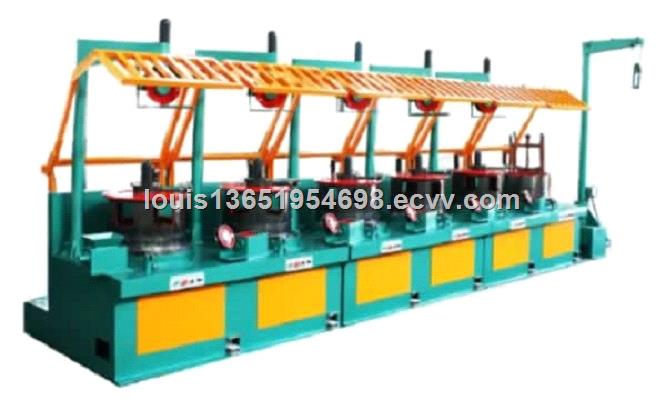

the overhead take-off wire drawing machine is an adaptable piece of equipment for drawing various metal wires. the wire drawing machinery is suited for the drawing of steel wire, welding wire, zinc coated steel wire and alloy wires. It can be equipped with a 630-800 spool take-up or trunk type take-up machine.
Note: drawing passes and drum diameter can be designed according to requirements of the buyer.

Pay-off Shell cleaning (pre-processing) Wire rod pointing (Butt welding) Drawing wire Take-up (spool or trunk take-up).

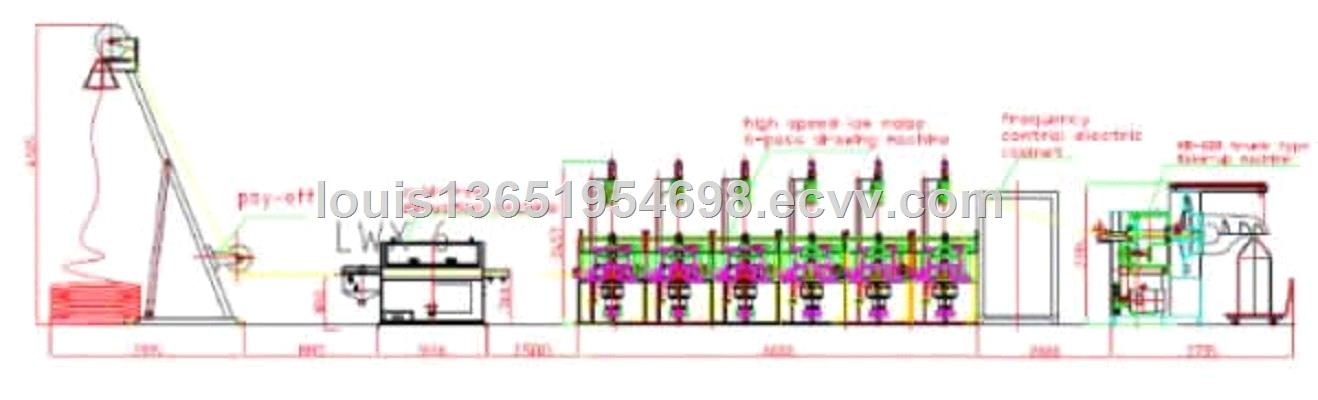

Layout

Main Characteristics
1. the wire drawer is made up of a main reduction box, die casing, wheel frame, wire brace and electrical control system. the spinning drawing blocks are driven by JZT or Y series motor. the drawing blocks are fixed vertically within the sealed box body.
2. the safety halt gear is installed close to the operation block.
