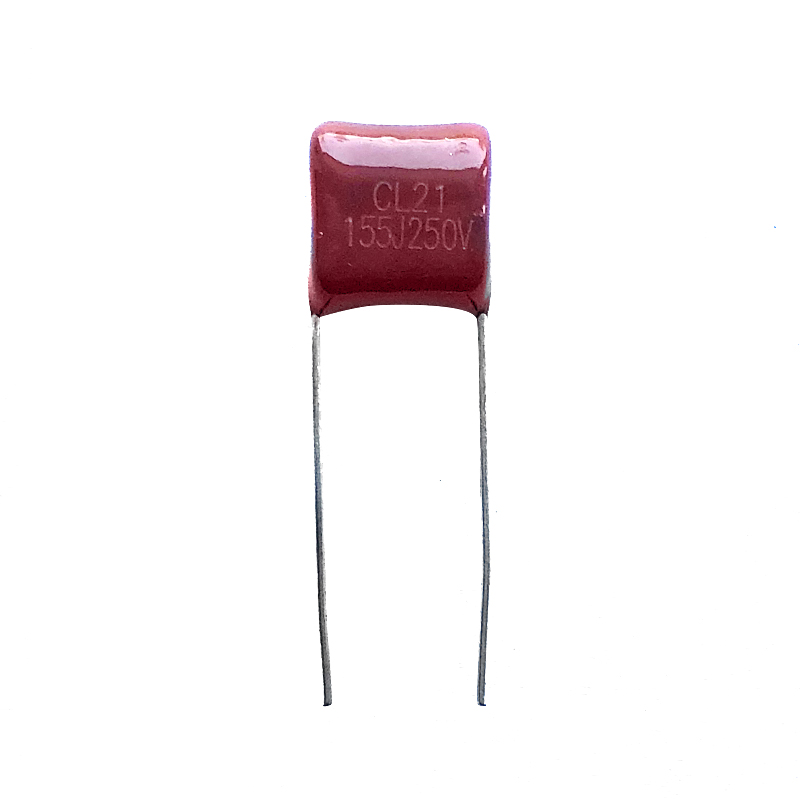

Rated Voltage: | 250V |
---|---|
Capacitance: | 1.5UF |
Application: | Power |
Type: | Polyester Film Capacitor |
Brand Name: | gjs |
Operating Temperature: | -40-105 |
Package Type: | Through Hole |
Model Number: | AF155J2E109L250E9R |
Place of Origin: | China (Mainland) |
Quick Details
Specifications
the following example is for you reference.
Features:
metallized polyester film,non-inductive wound construction;
Small size and excellent self-healing property
Flame retardant epoxy powder coating(UL94V-0)
Technical details:
Reference Standard
GB/T 7332(IEC60384-2) Climatic category
40/105/21 Rated temperature
85 Operating temperature range
-40-105 85-105:derating factor 1.5% per for R.V(D.C)
Rated voltage
400VDC, 450VDC, 500VDC, 550VDC, 630VDC
Capacitance range
0.01-2.2uf Capacitance tolerance
5%(J),10%(K) Voltage proof
1.6*R.V(DC),2S(between terminals) Dissapation factor
1%(1KHZ at 20-25) Insulation resistance
9000M,Cr0.33uf 3000s,Cr0.33uf at 10010VDC, 60S, 20-25 Maximum pulse rise time(dV/dT):
Ur(v)
dV/Dt(V/uS) P=7.5
P=10
P=15
P=22.5 250
80
60
50
30 400/450
150
120
100
50 500/550
200
180
150
80 630
350
300
200
100
Operation method of useage:
as intermediate circuit capacitor for SMPS, Electronic Ballast, Inverter(i.E DC-link, DC filer and P.F.C) Note:MEH series is only recommended to use in DC filter or DC-blocking circuit. It means the voltage applied to the capacitors must be unidirectional ripple voltage. this type is not suitable for used in AC circuit.
Package:
Bulk in PE bag or customized package
