Tungsten Carbide Rod Blanks---310/330 mm with 93 HRA Hardness

Product Description of Tungsten Carbide Rod Blanks---310/330 mm with 93 HRA Hardness:

Cemented carbide is the term which refers to sintered composite materials composed of at least one metal carbide constituent. Tungsten Carbide (WC), Titanium Carbide (TiC),Tantalum Carbide (TaC) are common constituents.

Our tungsten carbide rods are made of optimum quality raw material WC, which acts as hard phase, and the binder agent Cobalt. with powder metallurgy HIP technology, carbide rods are sintered with homogeneous microstructure including little or even no porosity, to a great extent, increasing the whole performance and properties such as hardness and bending strength.

Our HF30U solid rod obtains 93 HRA hardness and at least 4000 MPa transverse rupture strength.

Size of Tungsten Carbide Rod Blanks---310/330 mm with 93 HRA Hardness
1. 330mm, 310mm are standard length;

2. Diameter can be customized from 2mm to 25mm as requests.

Applications of Tungsten Carbide Rod Blanks---310/330 mm with 93 HRA Hardness:

Our HF30U carbide rods are fit for high speed cutting of hardened steel, titanium alloy, stainless steel and Nicket-based alloy, especially end mills application for precision electronic industry.

Features of of Tungsten Carbide Rod Blanks---310/330 mm with 93 HRA Hardness

1. K10 K20 K30 Carbide Rod

2. Solid carbide rod with best price can be blan or polish with ground rod based on customer's request.

3. We welding rod on the tool spare parts for metal working

4. Customzied specifications as per customers' requirement

5. Sizes to the specified shape and size

6. with high wear resistance in good quality

7. High Hardness

8. High wear resistance

9. Good strength and toughness

10. Heat resistance & corrosion resistance

about US:

We Zhuzhou Ruili Tools Co.,Ltd are ISO 9001 certified manufacturer of tungsten carbide rod for turning, milling, drilling, grooving and threading applications. We have over 10 years of experience manufacturing cemented tungsten carbide products. Our company's expertise in grade development, manufacturing, and application engineering assure customers the best choice for their unique requirements. Our advanced pressing and shaping systems give us the flexibility to offer numerous grades and sizes of tungsten carbide rods.

Specifications of Tungsten Carbide Rod Blanks---310/330 mm with 93 HRA Hardness

Specifications of tungsten carbide solid rod            type:DL

Metric system) Type Tolerance of diameter(mm) Tolerance of length(mm) 0.5330 +0.20/+0.45 -0/+5.0 1.0330 +0.20/+0.45 -0/+5.0 1.2330 +0.20/+0.45 -0/+5.0 1.6330 +0.20/+0.45 -0/+5.0 1.8330 +0.20/+0.45 -0/+5.0 2.3330 +0.20/+0.45 -0/+5.0 2.5330 +0.20/+0.45 -0/+5.0 3.0330 +0.20/+0.45 -0/+5.0 3.5330 +0.20/+0.45 -0/+5.0 4.0330 +0.20/+0.45 -0/+5.0 4.5330 +0.20/+0.45 -0/+5.0 5.0330 +0.20/+0.45 -0/+5.0 5.5330 +0.20/+0.45 -0/+5.0 6.0330 +0.20/+0.45 -0/+5.0 6.5330 +0.20/+0.45 -0/+5.0 7.0330 +0.20/+0.45 -0/+5.0 7.5330 +0.20/+0.45 -0/+5.0 8.0330 +0.20/+0.45 -0/+5.0 8.5330 +0.20/+0.45 -0/+5.0 9.0330 +0.20/+0.45 -0/+5.0 9.5330 +0.20/+0.45 -0/+5.0 10.0330 +0.20/+0.45 -0/+5.0 10.5330 +0.20/+0.45 -0/+5.0 11.0330 +0.20/+0.45 -0/+5.0 11.50330 +0.20/+0.45 -0/+5.0 12.0330 +0.20/+0.45 -0/+5.0 12.5330 +0.20/+0.60 -0/+5.0 13.0330 +0.20/+0.60 -0/+5.0 13.5330 +0.20/+0.60 -0/+5.0 14.0330 +0.20/+0.60 -0/+5.0 14.5330 +0.20/+0.60 -0/+5.0 15.0330 +0.20/+0.60 -0/+5.0 15.5330 +0.20/+0.60 -0/+5.0 16.0330 +0.20/+0.60 -0/+5.0 16.5330 +0.20/+0.60 -0/+5.0 17.0330 +0.20/+0.60 -0/+5.0 17.5330 +0.20/+0.60 -0/+5.0 18.0330 +0.20/+0.60 -0/+5.0 18.5330 +0.20/+0.60 -0/+5.0 19.0330 +0.20/+0.60 -0/+5.0 19.5330 +0.20/+0.60 -0/+5.0 20.0330 +0.20/+0.60 -0/+5.0 21.0330 +0.20/+0.80 -0/+5.0 22.0330 +0.20/+0.80 -0/+5.0 23.0330 +0.20/+0.80 -0/+5.0 24.0330 +0.20/+0.80 -0/+5.0 25.0330 +0.20/+0.80 -0/+5.0 26.0330 +0.20/+0.80 -0/+5.0 27.0330 +0.20/+0.80 -0/+5.0 28.0330 +0.20/+0.80 -0/+5.0 29.0330 +0.20/+0.80 -0/+5.0 30.0330 +0.20/+0.80 -0/+5.0

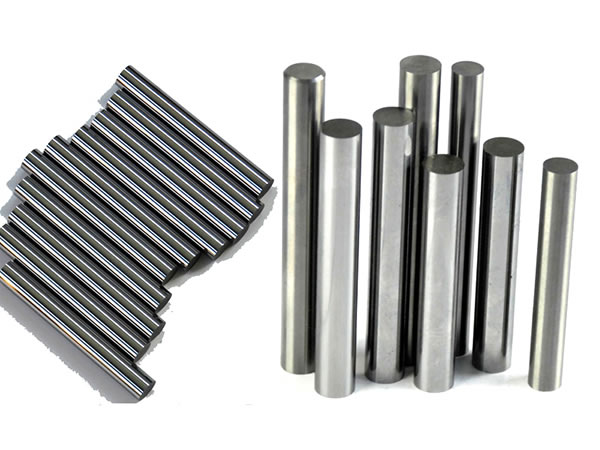

Picture Show of Tungsten Carbide Rod Blanks---310/330 mm with 93 HRA Hardness

Why Choose US:

5. Competitive price with fast delivery

6. Good and stable quality

7. Various types and dimensions avaialable

8. OEM & ODM welcome
