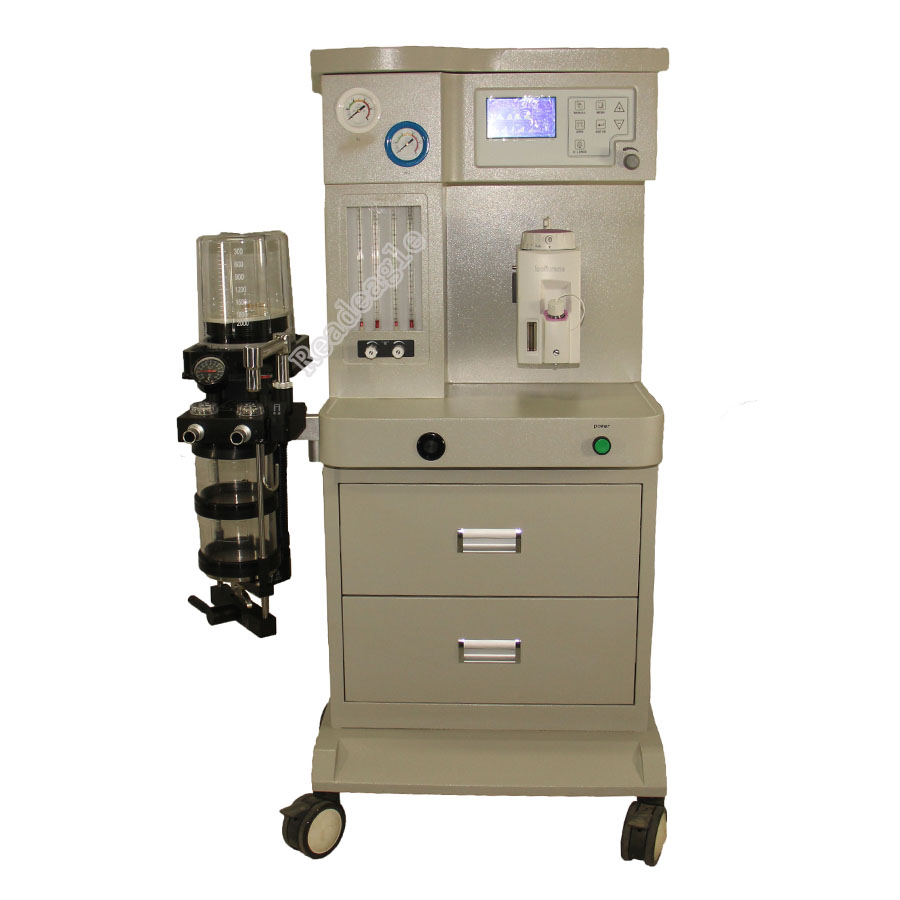

Special Feature

 5.5" SNT screen, two waveforms are showed at the same time.

 Metal frame, with plastic spray technique, durable and lasting.

Single vaporizer station, selectatec compatible.

Classical Flow meter of 4 tubes.

Could be easily upgraded with functions: eg adding Multi-parameter Monitor, CO2 Monitor, AMIS System.

 Working Mode:

  Semi-open, Semi-closed or Closed system

 Gas Supply Pressure

O2: 0.27Mpa-0.55Mpa

N2O: 0.27Mpa-0.55Mpa

 Flow meter

4 Tube: 2 x O2 Tube, 2 x N2O Tube

O2 Tube: 0L/min-1L/min-10L/min

N2O Tube: 0L/min-1L/min-10L/min

O2 and N2O Linkage Device, keep oxygen concentration not lower than 25%

Oxygen flush: 25L/min-75L/min

Safety Function

When airway pressure reach 6 kPa,  APL valve will automatically release gas.

When airway pressure reach 6 kPa, the bellows will stop sending gas to patient.

Monitoring parameters (under Manual and Ventilation):

Tidal Volume          Minute Ventilation

Respiration mode      FiO2 (Optional)      Waveforms: P-t, V-t

 Alarm parameters (Audible and/or visual signal):

Airway Pressure high/low limit

FiO2 high / low limit (Optional)

Low O2 Supply Pressure (when O2 Supply Pressure is lower than 0.15Mpa,  will arouse Audible Alarm)

N2O automatic Cut off Alarm

Technical Parameter

Circle Absorber

 Upgraded integrated Circle Absorber, with twins large volume CO2 canister, high CO2 absorbing efficiency.

 with non-return respiratory valve and expiratory valve on it, avoid gas back flowing.

with " Manual / Ventilation" switch on it, easily and quickly change.

with APL valve on it, the airway pressure could be adjusted freely.

Dimensions

 Size: 92*52*135cm

Optional

 Yoke Device

 Patievt Monitor

 CO2 Monitor

 AMIS

 AGSS

 FiO2
