| Brand Name: | Readeagle |
|---|---|
| Type: | instrument |
| Properties: | The Basis of Surgical Instruments |
| Material: | Metal |
| Voltage: | 100~240V |
| Place of Origin: | China (Mainland) |

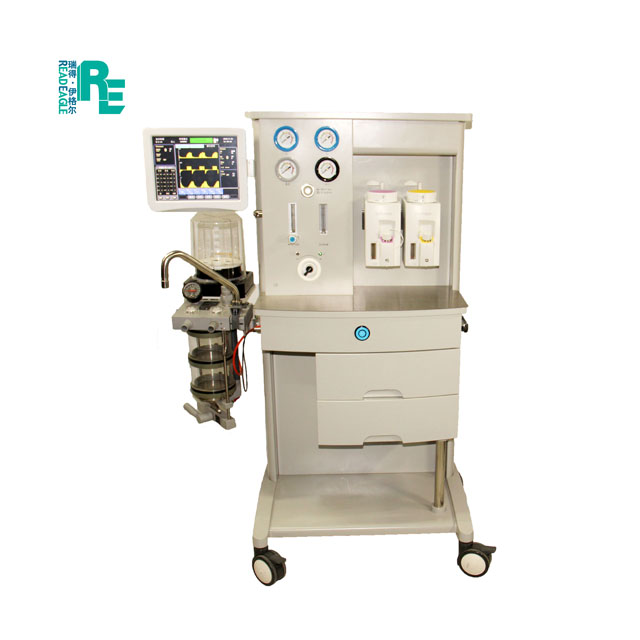

| Model Number: | Re902-C1 Plus |
| Instrument classification: | Class III |
| Display: | 12.1 inch touch screen |
| Type of flowmeter: | Electronic flowmeter |
| Breathing Frequency: | 1-65BPM |
| O2 Flush: | 25-75L/min |
| Working Mode:: | Semi-open, Semi-closed and Closed |
| Tidal Volume:: | 100-1600ml |
| Driven Mode: | Pneumatically dirven and electronically controlled |
| Respiration Mode:: | VCV, PCV, SIMV-PC, SIMV, PSV, Sigh, Manual, Demo, Standby |
| Type of PEEP:: | Electronic PEEP |
Quick Details
Specifications
Technology Specification:
Patient
Suitable for Adult and Pediatric, with Independent Pediatric Mode
Display
12.1"color touch screen and button operation
Optional: 15.1"color touch screen
Frame
Metal alloy frame, with plastic spray process, durable and elegant. Two big drawers, convenient for different articles storage
Flowmeter
Electronic Flowmeter, with independent flow Compensation, total flow rate: 15L/min, and with independent Auxiliary Oxygen Flowmeter
O2 Flush
25-75L/min
Circle Absorber
Classical CO2 Circle Absorber with twins canister
with non-return respiratory valves
with APL valve, the airway pressure could be adjusted freely, APL valve has scale
with " Manual / Ventilation" one switch
Canister Volume: each 1000ml (1000g soda lime); total 2000ml (2000g soda lime)
High Precise Anesthesia Vaporizer
Concentration Scope: 0.2-5VOL%
Flow Scope: 0.2-15L/min
Temperature Scope: 15-35
Anesthesia Vaporizer, automatic compensation for Temperature, Flow and Pressure.
Anesthesia Agent: Halothane, Enflurane, Isoflurane, Sevofluane for choice.
Monitoring Parameters
Tidal Volume
Respiratory Frequency
Minute Ventilation
FiO2
Airway Pressure (Ppeak, Ppeep)
Inspiration Plateau
I:E Ratio
Respiration mode
Monitored Waveform
P-t, F-t, V-t, lung loops: F-v, V-p
Alarm Parameters
Airway Pressure high / low limit
FiO2 high/low limit
Minute Ventilation high/low limit
Breathing Frequency high/low limit
AC failure
O2 supply low
Alarm silence
Gas supply Pressure
O2 N2O Air Supply Pressure 0.28-0.60Mpa
Working Mode
Semi-open, Semi-closed or Closed
Driven Mode
Pneumatically dirven and electronically controlled
Respiration Mode
VCV, PCV, SIMV-PC, SIMV, PSV, Sigh, Manual, Demo, Standby
Breathing Frequency
1-65BPM
Tidal Volume
10-1600ml
I:E Rate
8:1-1:8
Pressure Limit
Min. Pressure Limit: 1cmH2O
Max Working Pressure Limit: 60cmH2O
Airway Pressure Monitored
-10-60cmH2O
PEEP
0-20cmH2O (Electronic)
Anesthesia Ventilator System Compliance
4ml/100Pa
Power Supply
220V, 50Hz; or 110V, 60Hz
Power: 90VA
Optional
Patient Monitor
YOKE CO2 Monitor AGSS
