| Application: | Paint Spray Gun |
|---|---|
| Type: | High Pressure Gun |
| Brand Name: | HDA |
| Power: | 210V-240V |
| Resin injection: | 10 |
| Cup Volume: | Non |
| Model Number: | HDA-1020 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Main Advantages:
High efficiency save paint - environmental protection - high pressure atomization
High efficiency coating and outstanding operability
the new design is lighter, more flexible, more suitable for long time spray use
Excellent paint effect, more efficient paint
Contribution to environmental improvement and VOC mitigation! *VOC: volatile organic
Compounds
Technical details: Use paint All conductive coatings / general coatings / metal paints Model HDA-1020 Voltage Max DC-60KV Hydraulic pressure Common 0-0.3MPa Max 0.6 MPa Air pressure Common 0.05-0.4 MPa Max 0.6 MPa Air consumption 350N1/min(ANR) Air inlet Screw diameter PF1/4 Paint entrance Screw diameter PF1/4 Full length (HDA-70) 231mm Length of connecting cable 5m 8m (Max 30m) Weight (without cable)) 490g

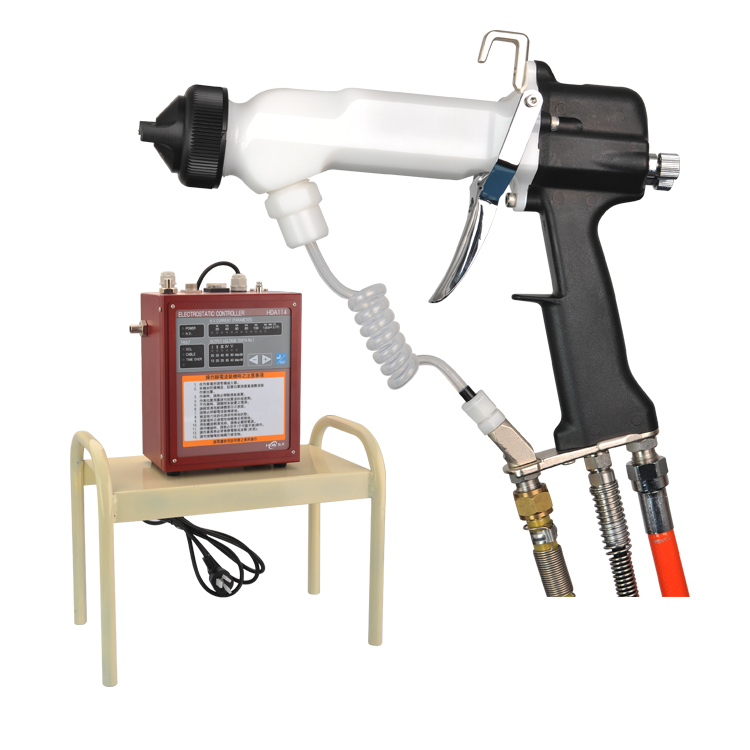

HDA-1020 Manual electrostatic spray gun parameter:
HDA-114 electrostatic controller parameter:
Output adjustment DC-20-60KV voltage AC24V Maximum current 80uA supply voltage AC220V10% Dimension 260X160X350mm application environment Temperature 0-45 dampness 20-85 weight 4.5kgs
Our Factory:
Certificates:
Our Service:
Guaranteed for One Year and Repaired for ever.
FAQ:
A:What kind of paint is suitable?
B:All conductive coating,general coatings,metal paints.
A:Can I have a 10-metre pipeline?
B:Yes.the length of connecting cable have 5m/8m,longest 30m.
