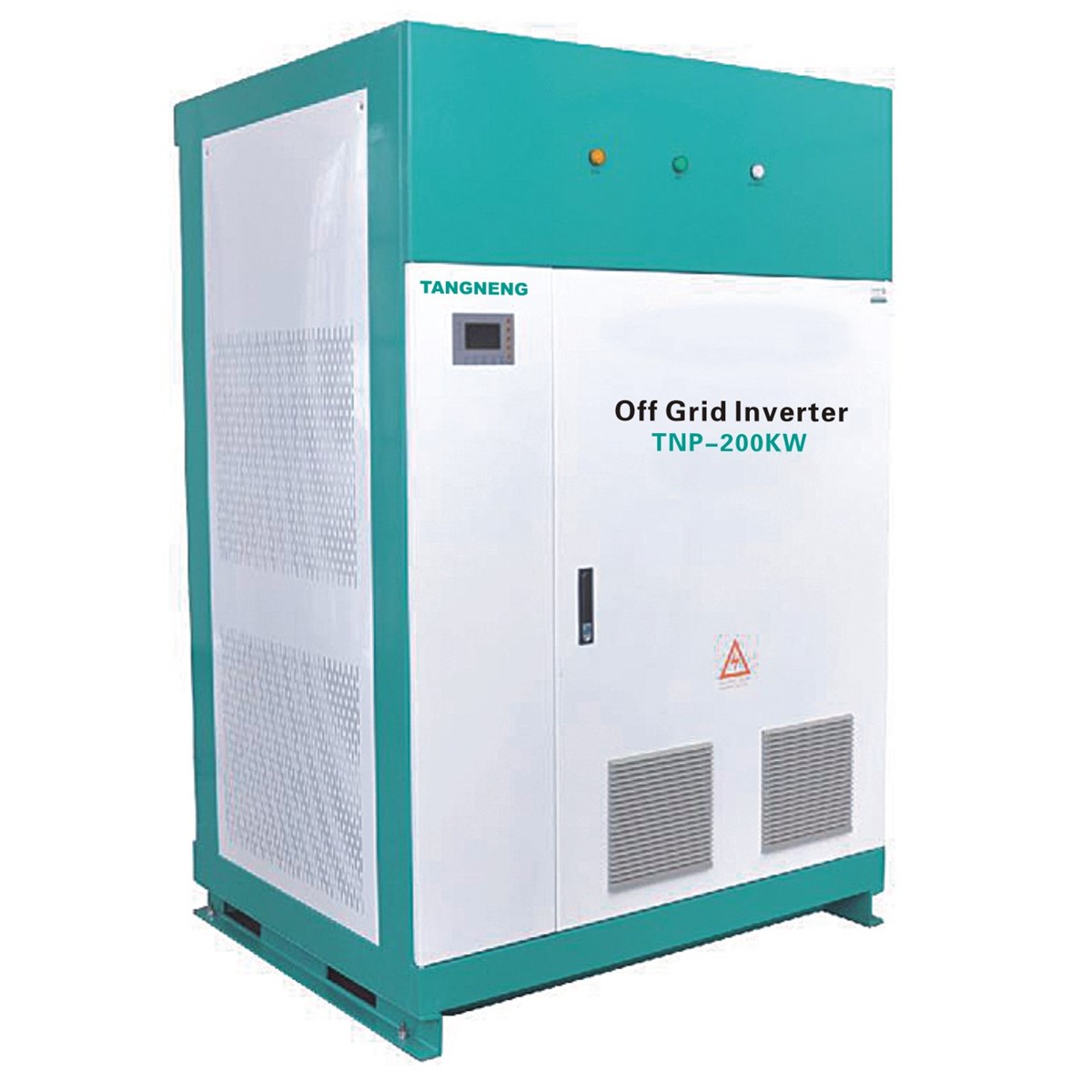

  Technical Features:

1Using the sixth generation efficient IPM intelligent module from Japanese Mitsubishi, high efficiency and stable performance. It with powerful protection function for short circuit, over load and over temperature which is more safe and reliable. It\'s service life can up to 15-20 years or more.

2Intelligentized, modularized and simple structure design, very easy and convenient for maintenance.

3Two kinds of start mode: Step Down Voltage Start and Variable Frequency Start.

4The output frequency 50Hz/60Hz can be set via LCD panel.

5The output voltage can be set.

6The DC input voltage range can be set. over-voltage point, under-voltage point, over-voltage recovery point, under-voltage recovery point and under voltage recovery time all can be set via the LCD panel.

7Using SVPWM space vector algorithms, high conversion efficiency, high instantaneous power and low losses, higher efficiency > 94%.

8Pure sine wave output. with good transient response less than 50MS, little harmonic distortion, higher conversion efficiency and stable output voltage.

9Low frequency transformer, which ensure the AC busbar and DC busbar are completely isolated to avoid interference, high efficiency and very little no-load loss.

10Powerful data display and fault instruction function. LCD can display the DC input voltage, output frequency, phase voltage, phase current, AC bypass input voltage, output power KWH, time and date, temperature, fault code display.

11Wide input voltage can be set according to customer's requirement. Input voltage range can be selected from 100-400v or 200-600v or 400-850v. this wide voltage input off grid inverter can work without battery and solar charge controller, which save battery cost and same like with MPPT function can maximum make full use of solar power.

12AC bypass input function optional: Battery Power Priority or AC Bypass Priority work mode can be set.

13RS485 remote monitoring function optional

14Solar charge controller and AC to DC battery charger built in optional for customer

15Can be customized to customer's specification.

16European CE (EMC and LVD) certification, accredited by Australian CEC, ERAC energy network, meet UL1741 and CSA22.2 standard.
