| Rated Power: | 75kva |
|---|---|
| Frequency: | 50HZ 60HZ |
| Speed: | 1500turn 1800turn |
| Output Type: | AC Three Phase |
| Brand Name: | cummins 75GF |
| Rated Current: | 108A |
| Rated Voltage: | 400/230V |
| Model Number: | 75gf |
| Place of Origin: | China (Mainland) |
| color can be selected: | Black, green, red and yellow |
Quick Details
Specifications
Product Description

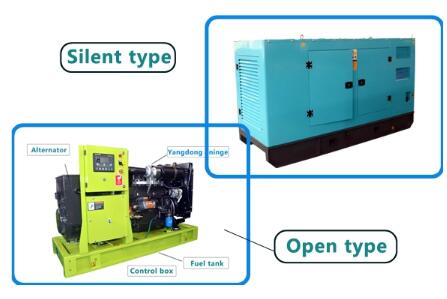

SPECIFICITION of WATER COOLED SOUNDPROOF 75KVA DIESEL GENERATOR byCUMMINS ENGINE
Generator Set Model |
75GF |
Type |
OPENTYPE/SILENT TYPE |
Genset Output Power |
60KW/75KVA |
Rated Voltage |
400/230V |
Frequency |
50HZ |
Power factor |
0.8 |
Rated Speed |
1500rpm |
Output Type |
AC three phase/single phase |
Motor |
Brushless |
Frequency |
<3% |
Frequency at stable state: |
<0.5% |
Frequency Deviation at instantaneous state |
+10% |
Frequency Return Time |
3s |
Voltage Deviation at stable State |
1% |
Voltage Deviation at instantaneous State |
+20% |
Voltage Return time |
4s |
Voltage Modulation |
0.3% |
the ENGINE SPECIFICATION of WATER COOLED SOUNDPROOF 75KVA DIESEL GENERATOR by CUMMINS ENGINE
Model |
6BT5.9-G2 |
Rated Power |
86KW |
Cyl/Bora/Stroke |
6/102/120 |
Cooling Method |
Water Cooled |
Rotating Speed |
1500/1800rpm |
Governor System |
electrical or mechanical governor |
Aspiration Mode |
turbocharged |
Starting Method |
24DC electric starting |
Stroke |
4 stroke |
the ALTERNATOR SPECIFICATION of WATER COOLED SOUNDPROOF 75KVA DIESEL GENERATOR by CUMMINS ENGINE
Brand |
COPY STANMFORD |
Rated Power |
60KW/75KVA |
Regulator |
AVR Automatic Voltage Regulating |
Excite Type |
Pret or Shunt |
Connecting Type |
3PH Star, 3PH-DELTA |
Steady Frequency Change |
0-5% |
No Load Voltage |
95%-105 |
Steady Voltage |
1 |
Insulation Degree |
H Degree |
Exclosure Degree |
IP23 |
Generator set Features:
1. Cummins industrial Diesel engine
2. Radiator 40C max,fans Are driven by belt, with safety guard
3. Choice of manual/auto and AMF control panels and protection systems
4. Digital auto-start Panel
5. Anti Vibration Suspension Absorber
6. Dry type air filter, Fuel filter, oil filter
7. Mould case circuit Breaker
8. 24V DC start motor and Storage battery
9. Ripple flex exhaust Pipe, exhaust siphon, flange, and muffler
