| Processing: | Fermenting Equipment |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 3 Years |
| Processing: | mashing, lauter, boiling, whirlpool, fermenting |
| Brand Name: | YUXIN |
| Condition: | New |
| Certification: | CE, PED, EAC, GOST |
| Weight: | customized |
| Dimension(L*W*H): | depends on actual capacity and customer's requests |
| Power(W): | customized |
| Voltage: | customized as your local electricity |
| Processing Types: | |
| Model Number: | 500l conical ferment machine for beer |
| Place of Origin: | China (Mainland) |
| product name: | 500l conical ferment machine for beer |
| keywords: | 500l ferment machine,conical ferment machine |
| Material: | stainless steel |
| Controlling System: | PID/PLC |
| Heat Insulation: | Polyurethane with Thickness=80mm |
| interior: | pickling and passivating or mirror polishing |
| Volume Design: | Properly according to the capacity request |
| conical degree: | 60-75 |
| Inner Polishing Precision: | 0.4 Micrometer |
| thickness of tanks: | 3mm for interior shell/2mm for exterior shell |
Quick Details
Specifications

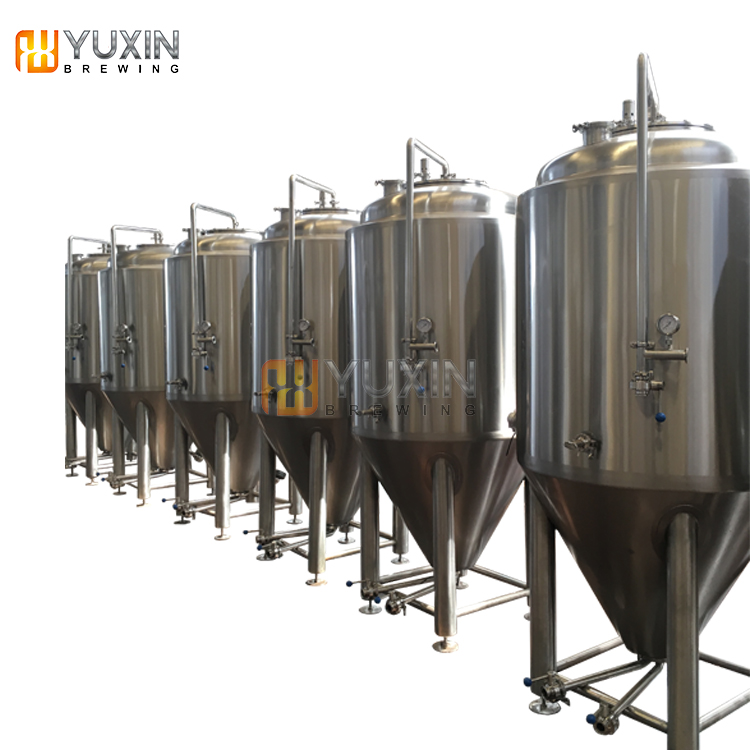

500l conical ferment machine for beer
1.Brief Introduction:
Fermentation is the process by which yeast converts the glucose in the wort to ethyl alcohol and carbon dioxide gas, giving both its alcohol content and its carbonation. to begin the fermentation process, the cooled wort is transferred into a fermenation vessel to which the yeast has already been added.
2.Techincal parameters: Fermentation tank Effective volume 1000L/2000L(+25% headspace minimum) Inner(SUS 304) thickness: 3mm; Outer(SUS 304) thickness: 2mm; Insulation: Polyurethane Single tank single control CIP arm and 360 sprayball Side manway, dish top, 60degree cone bottom Mechanical pressure valve Sanitary tri-clamp connections Stainless steel dimple cooling jacket on cone and side Safety valve on top; Dry Hopping Port on the top
Coolant inlet and outlet
Sample valve
Wort inlet and yeast outlet
Racking arm for beer outlet
Clamps and gaskets, pressure gauge(PSI displayed)
Stainless steel legs with stainless leveling footpads
Interior and exterior finish polished to a sanitary finish
3.Packaging&Shipping:
1. Ship by LCL or FCL
2. Packed with plastic film or bubble film
3. Fix with iron frame for big tank, lay down in the container
4. Fumigation free wooden case for small capacity by LCL
5. up to export standard, make sure everything is safe
Welcome to contact us, we'd like to send you more details!!!
