| Processing: | Fermenting Equipment |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 5 years for main tanks and 1 year for electric parts |
| Processing: | Alcohol |
| Brand Name: | RAINBOW |
| Condition: | New |
| Certification: | CE, PED, ISO9001 |
| Weight: | up to the tank capacity |
| Dimension(L*W*H): | depends on the equipment capacity |
| Power(W): | up to the heating method |
| Voltage: | 380v, 3-phase/customization |
| Processing Types: | Alcohol |
| Model Number: | RM |
| Place of Origin: | China (Mainland) |
| Polishing: | Fine polishing to 0.4~0.6um without dead corner |
| Welding: | All TIG welding with pure argon gas protection |
| Insulation: | Polyurethane 100mm |
| Material: | Staineless steel 304/316 or red copper |
| Thickness of material: | Exterior wall: 2mm; Interior wall: 3mm |
| False bottom: | In lauter tun, thickness: 5mm, wedge type |
| Manufaturer: | Yes |
| Control system: | PID/PLC control system |
| Application: | Pub, hotel, bar, restaurant, brewery plant |
| Whirlpool tun: | with tangential inlet |
Quick Details
Specifications

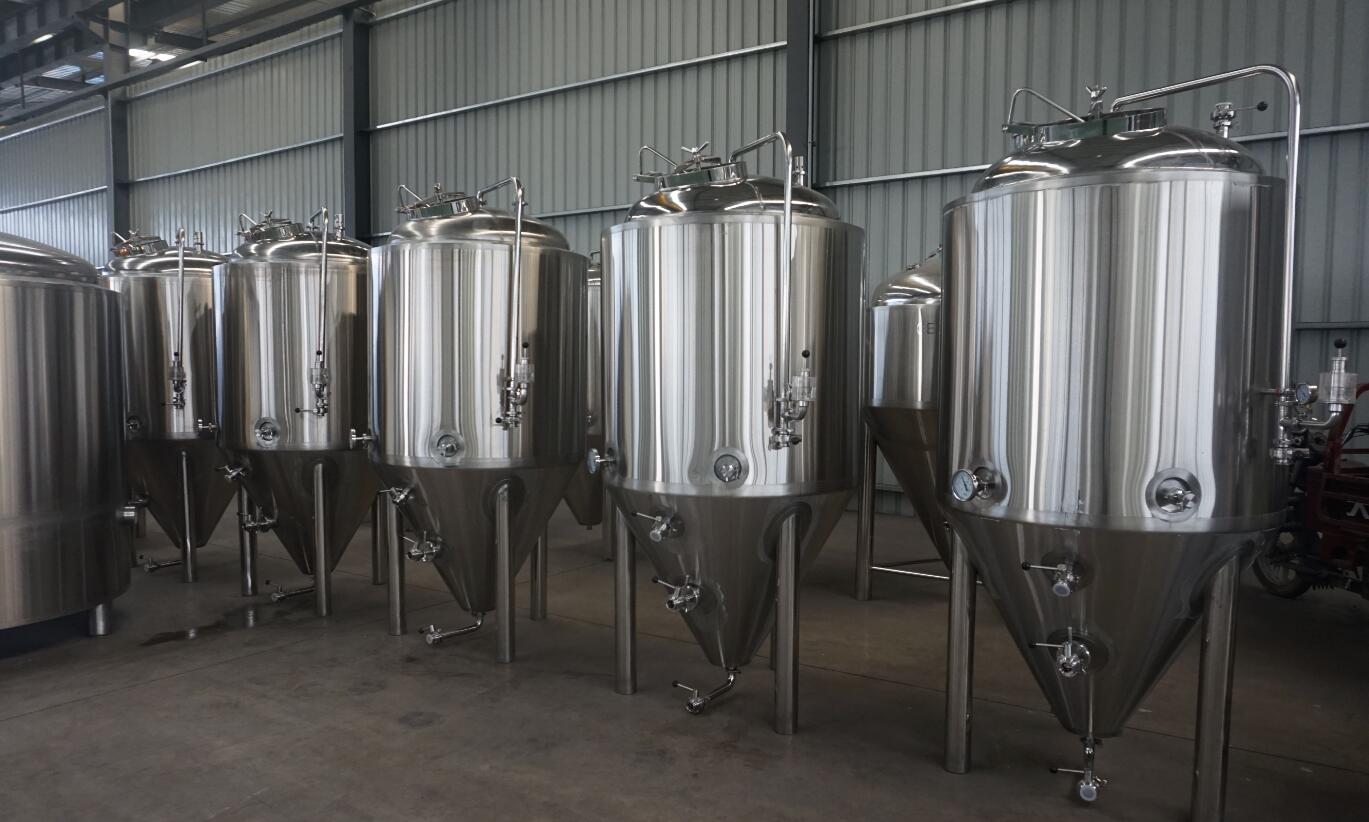

Beer fermenting system brewery equipment beer brewing
I-Brewhouse system | ||
Malt miller |
300kg/h | |
Mash/Lauter tank |
Interior SUS304,thickness:3mm; Exterior SUS304, thickness: 2mm; Interior finish: FinePolishingwithout dead corner for all tanks Insulation: Polyurethane-thickness 100 mm 100% TIG welding with pure argon gas shield | |
BRew kettle/Whirlpool | ||
Hot liquid tank | ||
Plate heat exchanger |
3m2, 6m2, 10m2, 12m2, 15m2, 20m2, 30m2... | |
Wort pump |
Food grade centrifugal pump, 3t/h, 5t/h... | |
II-Fermentation system | ||
Beer fermenter
|
Interior SUS304, thickness:3mm; Exterior SUS304, thickness:2mm; Interior finish:FinePolishingwithout dead corner for all tanks Insulation: Polyurethane-thickness 100 mm 100% TIG welding with pure argon gas shield Working pressure:0.2MPA Testing pressure: 0.3Mpa Thermowell with high accuracy temperature sensor:PT100 Cooling jacket: bothBottom and cylinder LEgs with height adjustable pad with carbonation stone (for BBT) | |
Bright beer tank | ||
Yeast adding tank |
MAterial:SUS304 | |
III-Cooling system | ||
Glycol water tank |
Interior(SUS304),Thickness:3mm; Exterior(SUS304), thickness:2mm; Interior finisH: FinePolishingwithout dead corner for all tanks Insulation: Polyurethane-thickness 100 mm 100% TIG welding with pure argon gas shield Thermowell with high accuracy temperature sensor:PT100 | |
Glycol chiller |
3hp, 5hp, 8hp, 10hp, 15hp, 20hp... | |
Glycol water pump |
3t/h, 5t/h... | |
IV-CIP system | ||
Alkali tank |
SUS304; thickness: 2mm Interior fine polishing for all tanks Valves and fittings included | |
Sterilization tank | ||
CIP pump |
Food grade centrifugal pump, 3t/h, 5t/h... | |
V-Control System | ||
Main types |
1)PID control panel 2) SIEMENS PLC system | |
Brands of main parts |
SIEMENS, OMRON, DANFOSS, SCHNEIDER, ABB... | |
Brewhouse control |
Mashing temperature setting | |
Boiling temperature setting | ||
Lautering temperature | ||
Mashing pump speed controlling by VFD, DANFOSS | ||
Mash tun agitator speed controlling by VFD, DANFOSS | ||
Fermentation control |
Fermentation temperature setting | |
Cooling control |
Glycol tank temperature setting | |
Chiller working/stopping controlling | ||
VI-Spare parts | ||
Pipe line for brewhouse |
SUS304 | |
Measuring cylinder | ||
Butterfly valves with safety handle | ||
Sight glass | ||
Saccharimeter |
0-10&10-20 | |
Spent grains harrow | ||
Safety/ vacuum valve for fermenters | ||
Pressure gauge | ||
Thermometer | ||
Pipeline for cooling | ||
Cooling Solenoid valve | ||
Expansion valve for glycol chiller | ||
Cable | ||
Signal wire | ||
Temperature sensor |
PT100 | |
