| Certification: | ICO CCC CE |
|---|---|
| Brand Name: | SEM |
| Condition: | New |
| Year: | 2019 |
| Make: | SEM |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Dimension(L*W*H): | 8703x2630x3360mm |
| Weight: | 14700kg |
| Model Number: | SEM919 |
| Place of Origin: | China (Mainland) |
| Reverse Speed(km/h): | 25 |
| Forward Speed(km/h): | 40 |
| color: | yellow |
Quick Details
Specifications

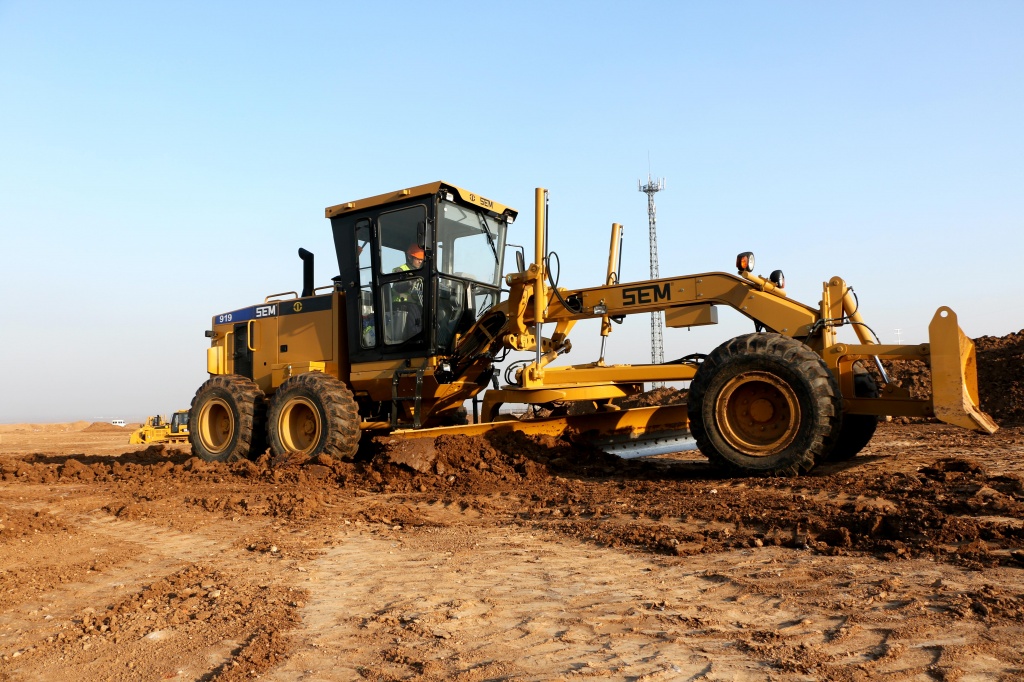

2019 MOTOR GRADER SEM919 for SALE
to view more information of the motor grader on our official website
- Advantages of motor grader SEM919
- * High Productivity: Load sensing hydraulic system provides consistent and precise blade movement
- * High Reliability: A-frame designed drawbar provides strength in all blade positions
- * Comfort: World Class industry control layout with low lever efforts for reduced operator fatigue
Product Description
Operating Weight |
15,070 kg |
Engine Model |
SDEC SC8D190.1G2 |
Rated Power |
140 kW/188 HP |
Overall Dimensions L*W*H |
8703*2630*3360 mm |
Blade Length |
3,974 mm |
Max. Drawbar |
78 kN |
Max. Lift above Ground (Blade) |
475 mm |
Max. Depth of Cut (Blade) |
715 mm |
Max. Blade Tip - Forward |
40 |
Max. Blade Tip - Rear |
5 |
Front Axle Steering Angle Left/Right |
47.5 |
Min. Turning Radius |
7.8 m |
Tandem Oscillation (Front up) |
15 |
Tandem Oscillation (Rear up) |
25 |
Transmission Model |
Hangchi 6WG180 |
Gears |
F6/R3 |
Tires |
17.5-25 |
