Application: | Paint Spray Gun |
---|---|
Type: | manual electrostatic spray gun |
Brand Name: | HDA |
Power: | 0 |
Resin injection: | 10% |
Cup Volume: | 600ml |
Place of Origin: | China (Mainland) |
Color: | Black |
Lenght: | 248mm |
Weight: | 480g |
Pipeline: | 5m 6m 8m 10m |
Quick Details
Specifications

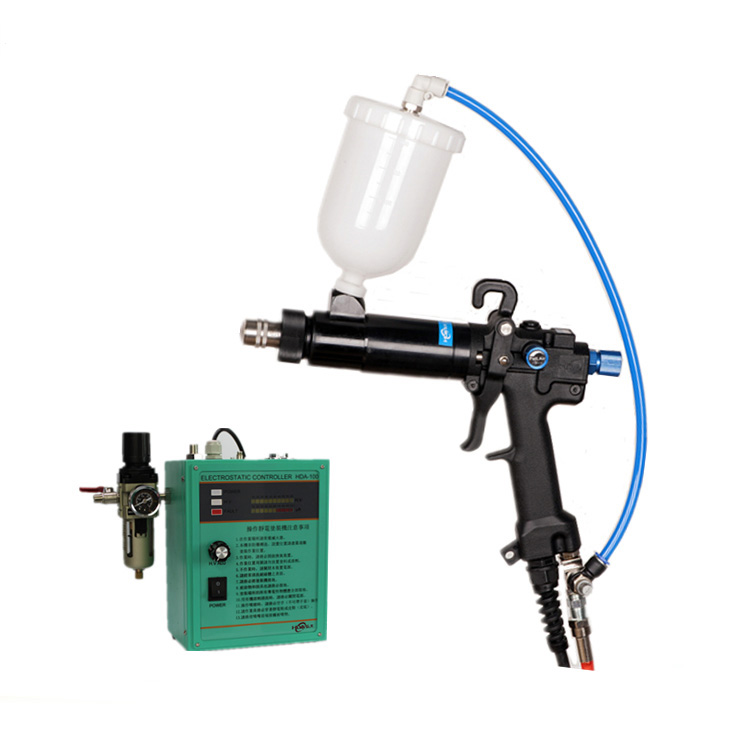

HDA-100 Laboratory spray gun with 600ml cup manual electrostatic paint spray gun optional nozzles
Suitable for proofing and color matching
Suitable for multi-color and small amount spraying operation
HDA -100 air pressure Laboratory electrostatic liquid paint spray gun sample coating gun specifications:
Max voltage |
DC-60KV | |
Hydraulic pressure |
Max |
0-0.3Mpa |
Standard |
0.6Mpa | |
Air pressure |
Max |
0.05-0.5Mpa |
Standard |
0.06Mpa | |
air consumption |
350Nl/mm | |
ari bore |
Screw bore PF 1/4 | |
paint bore |
Screw bore PF 1/4 | |
Length |
248mm | |
supply cable (standard) |
5M/6M/8M/10M | |
Weight(without nozzle & cables) |
480g |
Industry application:
Vehicle fittings,wooden furniture,carbon fiber sports,glass products,building materials hardware,household appliances,all metal coatings.
Product name |
HDA-100 controller |
Output adjustment |
-15-60KV |
High voltage switch |
Air flow switch |
Supply voltage |
AC110V-220VHZ |
Dimension |
220X145X270 |
Application environment
|
Temperature 0-45 |
dampness 20-80 | |
weight |
6.5kgs without holder |
