| Brand Name: | TNE |
|---|---|
| Size: | 450/600mm depth |
| Material: | High grade cold rolled steel |
| Type: | network cabinet |
| OEM & ODM: | accept |
| Model Number: | TN-009 |
| Place of Origin: | China (Mainland) |
| Cabinet Standard: | ANSI/EIA RS-310-D,IEC297-2,DIN41491;PART1, DIN41494;PART7,GB/T3047.2-9 |
| Products Status: | Used |
| Capacity: | 4u to 22u |
| Certification: | CE,Rohs, ISO9001 |
| Color: | RAL7035,RAL7044,RAL9004 etc |
| Protection Level: | IP20 |
| Package: | Assembled or flat packing |
Quick Details
Specifications

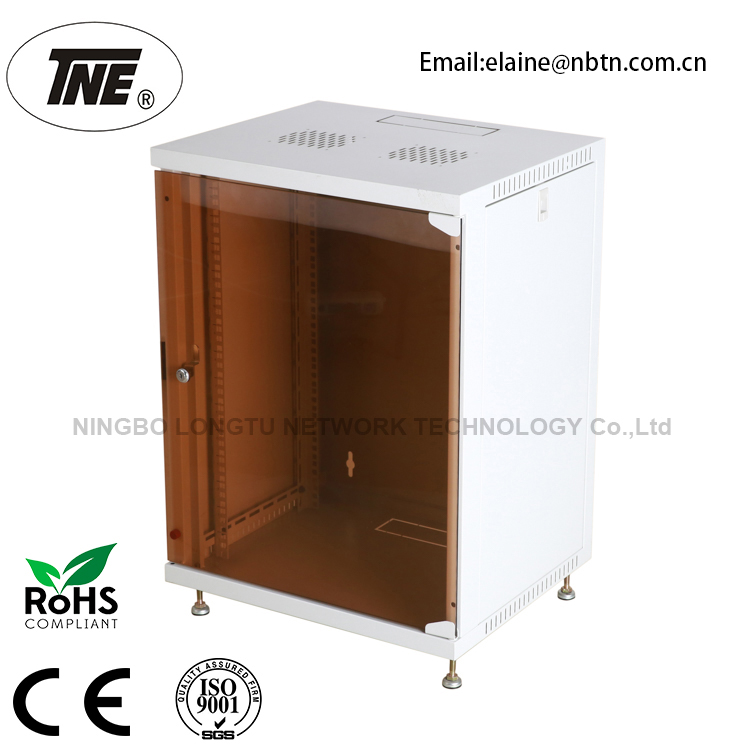

19'' Wall Mount Cabinet with 540mm Width
Features:
Specification:
> Welded Frame with a Robust and Reliable Structure |
> Standing or Wall Mounting Installation at your Choice |
> Competitve Price with Satisfied Quality |
Addtional Discription:
+ Turning Angle of Front Door is over 180 Degrees; Opening Direction Can be Changed According to Your Practical Needs. |
+ Cable Entry on both of Top Cover and Bottom Cover |
+ 120mm*120mm Fans are Avaliable on the Top Cover. |
+ Removable Side Panels Simplify your Installation of Accessories and Monitoring of IT Equipment. Lock is Optional |
Standard:
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI
Standard
Material:
High grade cold rolled steel.
Thickness:
Mounting profile: 1.500mm others: 1.2mm
Loading Capacity:
Static Loading: 60kgs
Surface finish:
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.
Degree of Protection:
IP20
Body Color:
RAL7035, RAL9004 etc.
Optional Accessory:
| + Fixed Shelf |
+ Sliding Shelf |
+ Cable Management |
+Cooling Fan |
+ Power Distribution Unit/ PDU |
Mainly Size:
Model |
Capacity U |
Dimension | Packing Dimension | |
| W*D*H(mm) | W*D*H(mm) | Volume(CBM) | ||
TN-008-5606 |
6 | 540*600*310 | 550*610*320 | 0.107 |
TN-008-5609 |
9 | 540*600*445 | 550*610*560 | 0.188 |
TN-008-5612 |
12 | 540*600*580 | 550*610*590 | 0.198 |
TN-008-5615 |
15 | 540*600*710 | 550*610*720 | 0.242 |
TN-008-5620 |
20 | 540*600*933 | 550*610*945 | 0.317 |
TN-008-5625 |
25 | 540*600*1155 | 550*610*1170 | 0.393 |
