| Type: | HVAC Systems |
|---|---|
| Brand Name: | Neutral |
| Certification: | ce |
| Size: | 152.5x120x28mm |
| color: | white |
| Model Number: | HTW-ST01-A |
| Place of Origin: | China (Mainland) |
| Power Supply: | 20VAC-30VAC 50-60HZ or Battery powered. |
| Terminal Load: | 1.0A per terminal, 3.0A maximum total load |
Quick Details
Specifications
>> General

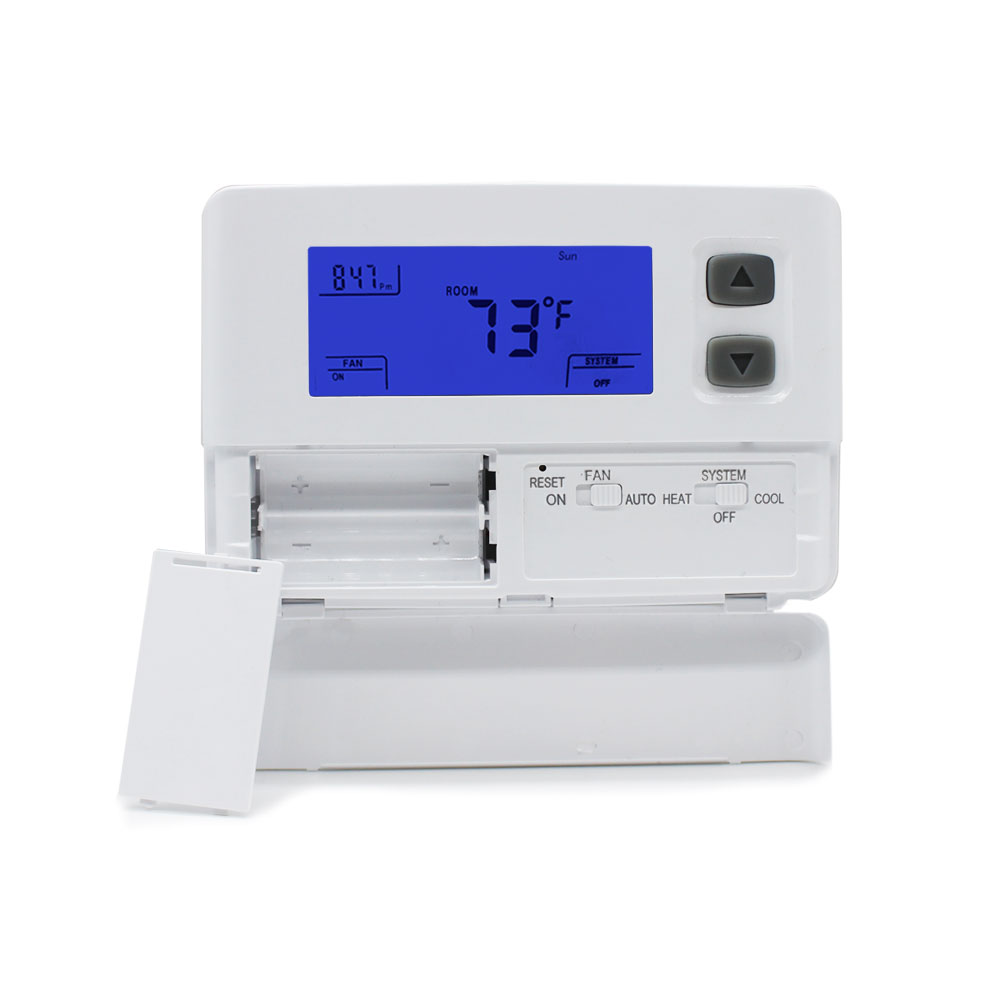

1 Heat / 1 Cool single stage thermostat.
Non Programmable, Compatible with heat pump system
this thermostat is compatible with the following systems:
Gas, oil, Propane or electric furnace
Central air conditioner
Geo Thermal / Hot water system with or without pump
Millivolt system
Central heating and cooling system
Heat pump without auxiliary/backup heat
Forced Air / in-Floor Radiant / Radiator system
>> Features
F or C configurable
Child Lock Function
Large LCD display, Backlight.
Heat and Cool set point storage.
Display of room temperature, set temperature and current time simultaneously.
Fan switch on and AUTO.
Permanent user setting retention during power loss. No batteries are required.
Apply to 24VAC or 2 *AA alkaline batteries power supply.
Air Filter change Indicator, Low Battery Indicator, Temperature calibration.
4- or 5-wire compatible (C is optional for non-heat pump systems)
Manual Changeover / Fan Switch, Easy operation friendly.
Mercury-Free, Environmentally Safe
Built-in compressor protection
