| Application: | Paint Spray Gun |
|---|---|
| Type: | automatic spray gun |
| Brand Name: | HDA |
| Power: | 0 |
| Resin injection: | 0 |
| Place of Origin: | China (Mainland) |
| Maximum output current: | 200ua,300ua(External) |
| Maximum spray: | 350mm |
| Maximum air consumption: | 600NL/min |
| Maximum spit out quantity: | 600cc/min |
| Dimension: | 185mm |
| Weight: | 0.5kg |
| Installation method: | Fixed,Reciprocating And Robot |
Quick Details
Specifications

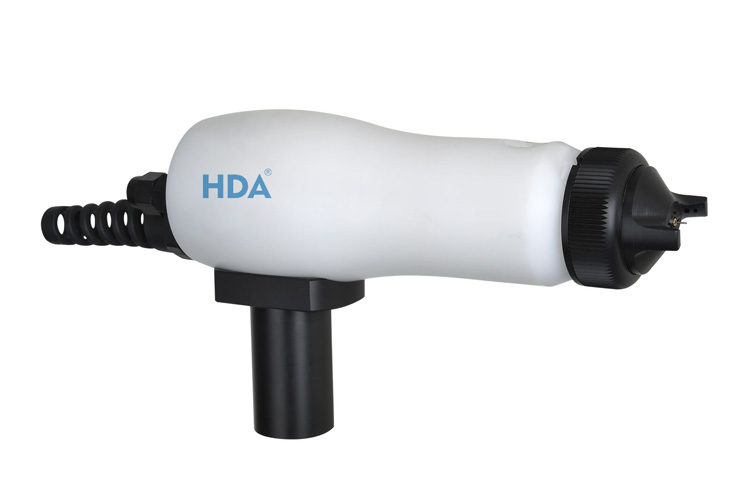

HDA Liquid Automatic Electrostatic Spray Gun
the automatic air electrostatic spraying gun suitable for general industry has the advantages of simple structure,easy maintenance,strong penetrating force of paint fog,wide application range of coatings,excellent surface effect,and is the preferred product for large area paint spraying type which neeeds strong penetrating force of coatings.PERFORMANCE PARAMETER
| Maximum output | 80KV |
| Maximum output current | 200ua,300ua(External) |
| Maximum spray | 350mm |
| Maximum air consumption | 600NL/min |
| Maximum spit out quantity | 600cc/min |
| Coating switch | External valve |
| Dimension | 250mm |
| Weight | 0.8kg |
| Installation method | Fixed,Reciprocating and Robot |
HDA-201 Electrostatic Controller
| Electrostatic controller model | HDA-201 |
| Output high pressure | DC-80KV |
| Power supply | AC220V |
| Dimension | L220W180H120MM |
| Weight | Controller 3kg High votlage module 3kg |
| Suitable for airbrush machine | HDA-50/60/90 |
Wall Hanging Type Gear Pump

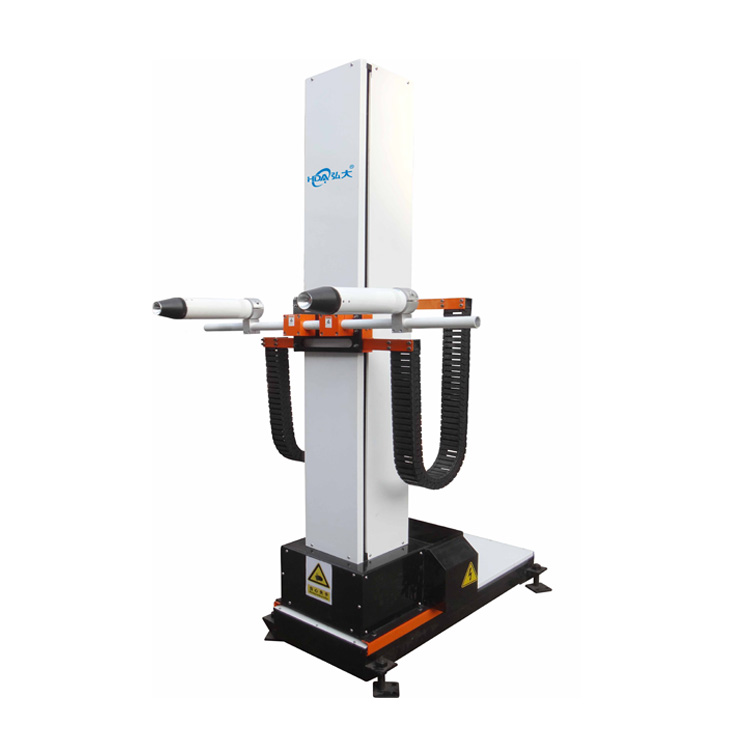

Reciprocating
