Warranty: | 5-6years |
---|---|
Certification: | CCC, CB, CE, ISO9001 |
Brand Name: | RMRB |
Type: | Water Heater |
Condition: | New |
After-sales Service Provided: | Overseas service center available |
Power(W): | 54000 |
Voltage: | 380V-50HZ |
Weight: | 260KG |
Dimension(L*W*H): | 1140*720*1050 |
Model Number: | RMRB-12SSR |
Place of Origin: | China (Mainland) |
Power Source: | Hot Water / Steam |
Industry: | Energy-Saving Equipment |
Application: | House, Villa, Small Chamber, Office, Farm, Worker domitory, Student domitory, Building and Beauty Salon etc. |
Color: | White, Blue, Red, Yellow or as Required |
Heating Output: | 44.2kw |
Heating Input Power: | 10.2kw |
Cooling Output: | 54kw |
Cooling Input Power: | 10.2kw |
Noise: | 79dB(a) |
Compressor Brand: | Copeland |
Compressor Form: | Effective Flexible Scroll Type |
Quick Details
Specifications

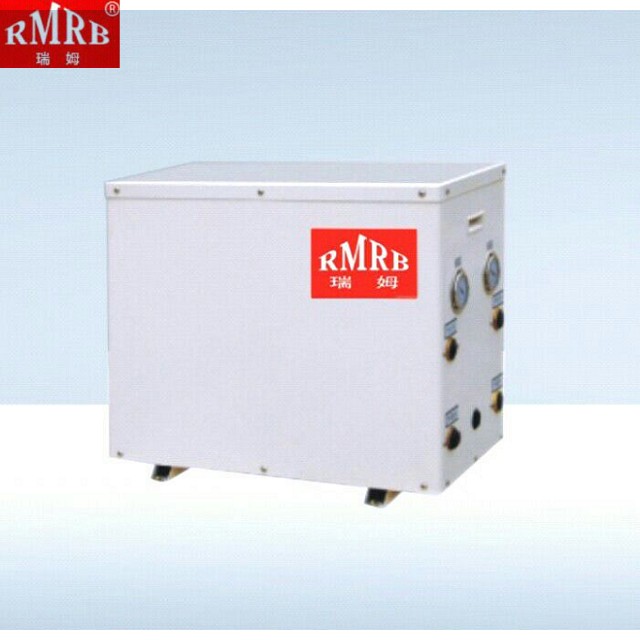

Heater Water Loop Heating Pump Cooled Chiller Air conditioner
Technical parameter
Performance characteristic
Completely isolate water and power, safe and reliable use
Detached main unit apply built-in heat exchanger, water pipe isn't installed with copper pipe, the main unit and water tank is only required to be connected with water pipe, simple installation, high applicability
Intelligent de-frosting technology, completely remove frost, higher efficiency
Application
House, Villa, Small Chamber, Office, Farm, Worker domitory, Student domitory, Building and Beauty Salon etc.
Comprehensive Comparison
about Company
Guangzhou Realm Energy-Saving Equipment Co., Ltd was founded in 2004, is the strategic partnership of ATSE(Alliance to save energy) in china. Jointly set up R & D center with the Heat Energy Research Institute of Tianjin University, make a deep development to the product and technology. Got high mature technology and energy saving effect is remarkable. the company had obtained the production license of industrial products, passed the ISO9001 Authentication; the EMC Membership Authentication of the USA; CE Certificate; CB Certificate; CCC Certificate and Energy-saving Authentication of China. It has built a large production base and sales center in Guangzhou, overall responsibility for the RMRB brand products and marketing services.
Product series including: Air source heat pump water heater for household and commercial units: Combine cooling, heating & hot units: Water/Geothermal heat pump water heater units: Heat pump type cool & warm center air-condition units...Can widely used in home, villa, hotel, entertainment center, school, hospital, factory, army and other service industry. with profound knowledge to the market, the company has summarized the practical and effective strategy with complete and systematic solutions and rich engineering experience.
Main Markets(Export percentage: 31%-60%):
American and Europe, South Africa, Southeast Asia, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe etc.
Our Target: Develop international famous brand on energy saving. Set up the worldwide RMRB heat pump chain stores and warranty service systems.
about Factory
Size(Sq. Meters): about 5, 000 square meters
Number of employees: 101-200 people
Number of Employees: 101 - 200 People
QA/QC: in House
Number of Production Lines: 3
Number of R&D Staff: 5 - 10 People
Number of QC Staff: 5 - 10 People
Contract Manufacturing: OEM
Service: Offered
Design Service: Offered
Buyer Label: Offered
Service Life of Products: 10 to 15 years or more
Has a standard simulation laboratory of environment, owned a best technical service team and advanced production and testing equipment. And strict accordance with the ATSE quality monitoring system and process requirements for production, the quality is reliable.
Factory Location: Back seat 3 of No. 58 Zhuliao Avenue, Zhongluotan Town, Baiyun District, Guangzhou City, China.
Technical parameter
Model | RMRB-10SSR | RMRB-12SSR | RMRB-20SSR | RMRB-25SSR | RMRB-50SSR | ||
Cooling Output KW | 45.2 | 54 | 91.6 | 107 | 215.8 | ||
Cooling Input Power KW | 8.7 | 10.2 | 17.6 | 20.5 | 41.5 | ||
Heating Output KW | 37 | 44.2 | 76 | 88 | 175 | ||
Heating Input Power KW | 8.8 | 10.5 | 18 | 21 | 42 | ||
Noise dB(A) | 72 | 73 | 75 | 77 | 79 | ||
Voltage V | 380V-50HZ | ||||||
Compressor | Form | Effective Flexible Scroll Type | |||||
Quantity | 2 | 2 | 2 | 2 | 2 | ||
Brand | Copeland | ||||||
Evaporator | Form | Panel or Spiral pipe | |||||
Cold Water Flow Rate m/h | 7.6 | 9.6 | 15.6 | 17.3 | 34 | ||
Cold Water Flow Rate Pressure Loss kPa | 50 | ||||||
Hot Water Flow Rate m/h | 7.6 | 9.6 | 15.6 | 17.3 | 34 | ||
Hot Water Flow Rate Pressure Loss kPa | 50 | ||||||
Pipe Joint Diameter mm | DN32 | DN32 | DN65 | DN65 | DN100 | ||
Max Pressure Mpa | 1.2 | ||||||
Size | Length mm | 1140 | 1140 | 1140 | 1400 | 1400 | |
Wide mm | 720 | 720 | 1100 | 1200 | 2200 | ||
Height mm | 1050 | 1050 | 1200 | 1200 | 1200 | ||
Weight KG | 250 | 260 | 580 | 620 | 1200 | ||
Control Mode | Microcomputer central processor(Linear control) | ||||||
Protection function | High pressure, Low pressure, Phade failure/Reversed phade, Overload, Water switch, Freeze | ||||||
Notice: Refrigerating work conditions: freezing water input temperature 12C, freezing water output temperatute 7C, freezing water input temperature 15C, freezing water output temperatute 25C Heating work conditions: Hot water input temperature 40C, hot water output temperature 45C, Hot water input temperature 20C, hot water output temperature 15C Hot water work conditions: Cold water temperature 15C, hot water temperature 55C, water source temperature 20C Specifications are subject to change without prior notice. the appearance is only for reference, please see the real product for detailed information. |
Performance characteristic
Completely isolate water and power, safe and reliable use
Detached main unit apply built-in heat exchanger, water pipe isn't installed with copper pipe, the main unit and water tank is only required to be connected with water pipe, simple installation, high applicability
Intelligent de-frosting technology, completely remove frost, higher efficiency
Application
House, Villa, Small Chamber, Office, Farm, Worker domitory, Student domitory, Building and Beauty Salon etc.
Comprehensive Comparison
Hot water equipment | Safty | Evironment Friendly | Convenience | Maintenance cost | Service Life | Installation condition |
Heat pump unit | Higher | Higher | Higher | Low | 10-15years | Less limit |
Gas hot water boiler | Low | Low | Low | Higher | 6-8years | More limit |
Fuel hot water boiler | Low | Low | Low | Higher | 6-8years | More limit |
Solar+Electric auxiliary | Ordinary | Higher | Higher | Low | 5-6years | More limit |
