Application & Function:

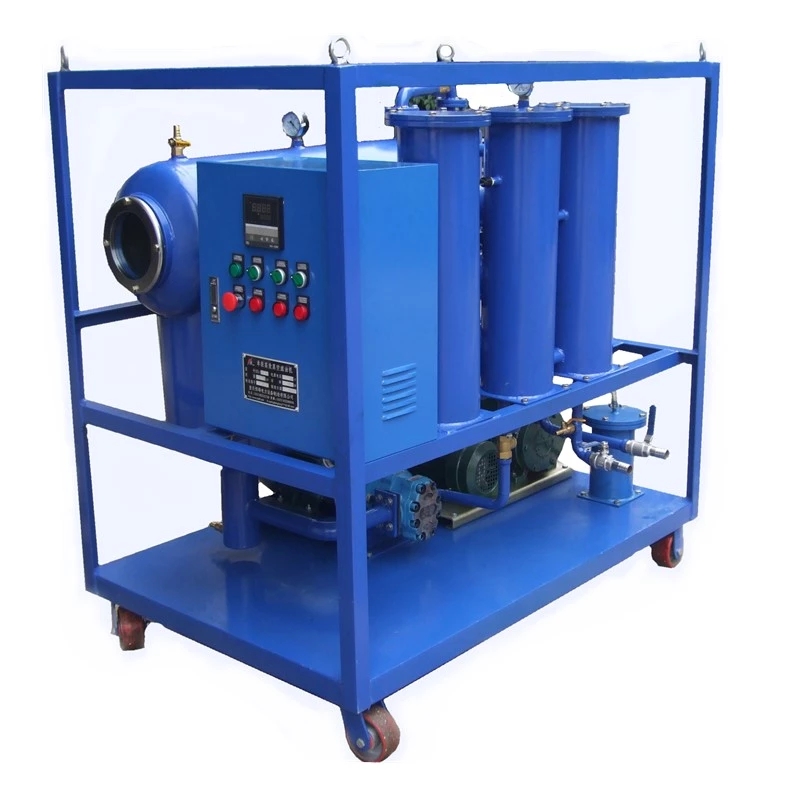

Series ZY Power Industry Single Stage Transformer Oil Vacuum Purifier Is mainly used to remove trace water,gas and other contaminants such as solid particles in the the waste oil, Widely used to purify various unqualified electrical insulating liquids such as transformer oil, capacitor oil, switch oil and silicone fluids, etc. after process, oil puncture voltage(breakdown voltage BDV) can be greatly increased, the coefficient of loss tan delta can be significantly improved, and the oil dielectric strength can be maintained.

Optional parts:

1. Imported German Leybold or Busch vacuum pump;

2. Imported American or German oil pump;

3. Schneider electrical parts;

Optional models:

1.ZY-A Series: equipped with Programmable Logic Controller (PLC);

2.ZY-T Series: equipped with trolley;

3.ZY-E Series: equipped with weather-proof enclosure;

4.ZY-TE Series: equipped with trolley and weather-proof enclosure.

Technical Parameters:

Model	ZY-10
Flow Rate (L/min)	10L/Min
Working Vacuum	-0.070~0.099Mpa
Working Pressure	0.5Mpa
Working Temperature	40-70
Continuous Working Hour	200h
Trouble-free Working Hour	5000h
Power Supply	380V,50HZ,3Phase(Customizable)
Residual Water	10ppm
Impurity Size	1micron
Residual Gas	0.1%
Cleanliness Degree(NAS)	5
Demulsibility	8min
Working noise	65dB(A)
Heating power	5kw
Total power	7kw
Inlet/outlet	16mm
Weight	150kg
Dimensions(mm)	1.08*0.62*1.05m
