Applications:

* this type instrument is measure bearing capacity of various soils.

*Withhigh-horsepowergasoline engines, outdoor use

*Fully automatic operation, convenient and safe!



Parameters:

* Dimension:1.3 X 2.1 X 2.1 M

* with Motor 7.5KW SENKAI SK850

Suitable for outdoor power generation

* Speed: 15time / Minute 2time

* Falling distance of Hummer: 760 mm

* the size of Cone head:30,60,90 and 100

* the diameter of Cone head:74mm

* the power supply: AC 380V (Three phease)

* the machine China standard:

YS 5219-2000 cone dynamic penetration test procedures;

GB50021-2001 rock engineering survey specifications

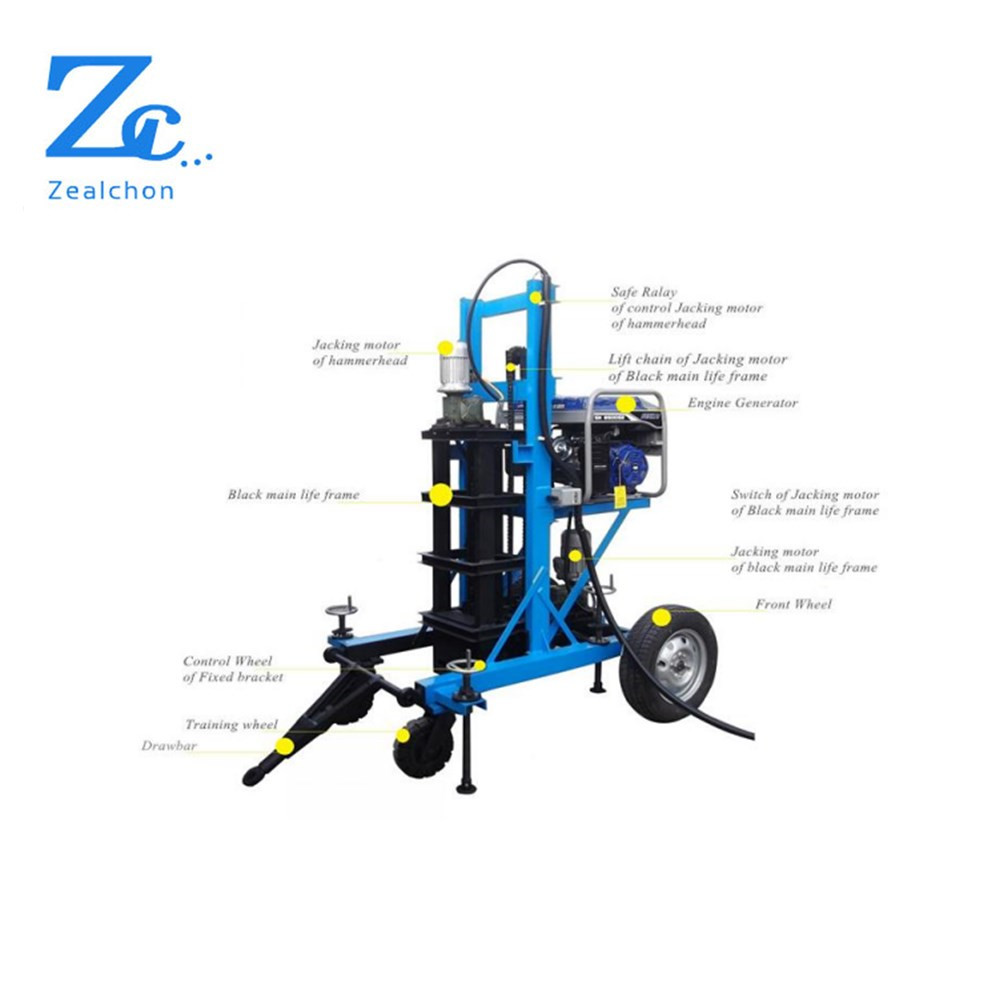

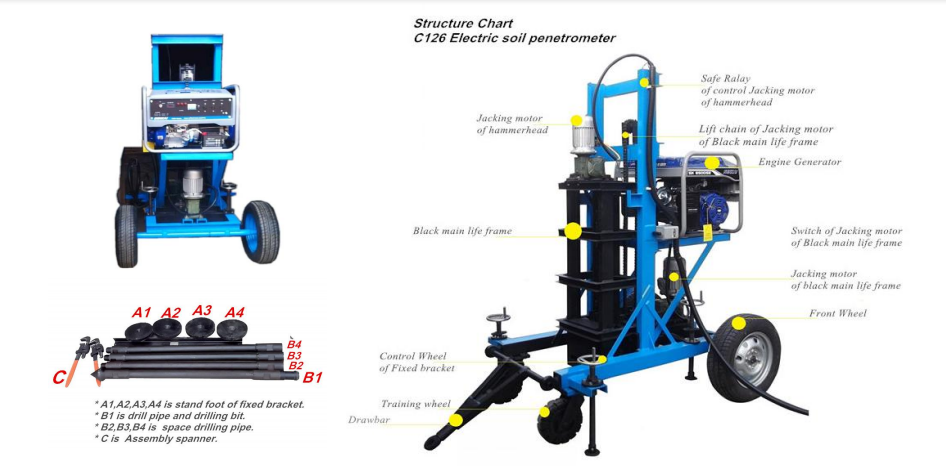

Structure chart:

C126 Control panel

A indicator light is power supply light of digital count meter

B indicator light is Working indicator light of instrument.

A button is General switch Power supply of instrument.

B button is working button of soil penetrometer (set count).

C button is stop working button of soil penetrometer(set count)

D button is working button of single time of soil penetrometer.







Electric Generator Brand: SENKAI SK8500 SE

Rated voltage: AC220V, AC380V

Rated Power: 7.5 KW (Max: 8 KW)

Starting mode: Manual start and electric start

Output volume: 439mL

Output horsepower: 18HP

Max Power: 15.0/3600 kw/rpm

Rated Power: 13.2 /3600 kw/rpm

Max torque: 28.0/2500 Nm /rpm

Engine oil capacity: 1.1 L

Fuel oil capacity: 25 L

N.W. / G.W.:



this machine can only pull out one meter at a time of use, if under any circumstances rods in ground exceeded 2 meters, then you will need an external crane, excavator or any other heavy machines to pull the rods out&quot
