| Processing: | Other |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 3 years |
| Processing: | Fermenting Equipment |
| Brand Name: | YUXIN |
| Condition: | New |
| Certification: | CE PED EAC GOST |
| Processing Types: | beer |
| Dimension(L*W*H): | customized |
| Weight: | depends on capacity |
| Power(W): | depends on size |
| Voltage: | customized |
| Model Number: | YUXIN malt crushing beer milling machine grinder |
| Place of Origin: | China (Mainland) |
| Product Name: | malt crushing beer milling machine grinder |
| Keywords: | malt crushing machine,beer milling machine,grinder |
| Material: | SUS304/SUS316 |
| speed: | 700rpm |
| crushing Particle size: | Adjustable |
| output: | 80-1200kg/hr |
| Processing Types: | Malt for beer |
| type: | malt mill |
| dimension: | depends on grain mill sizes |
Quick Details
Specifications

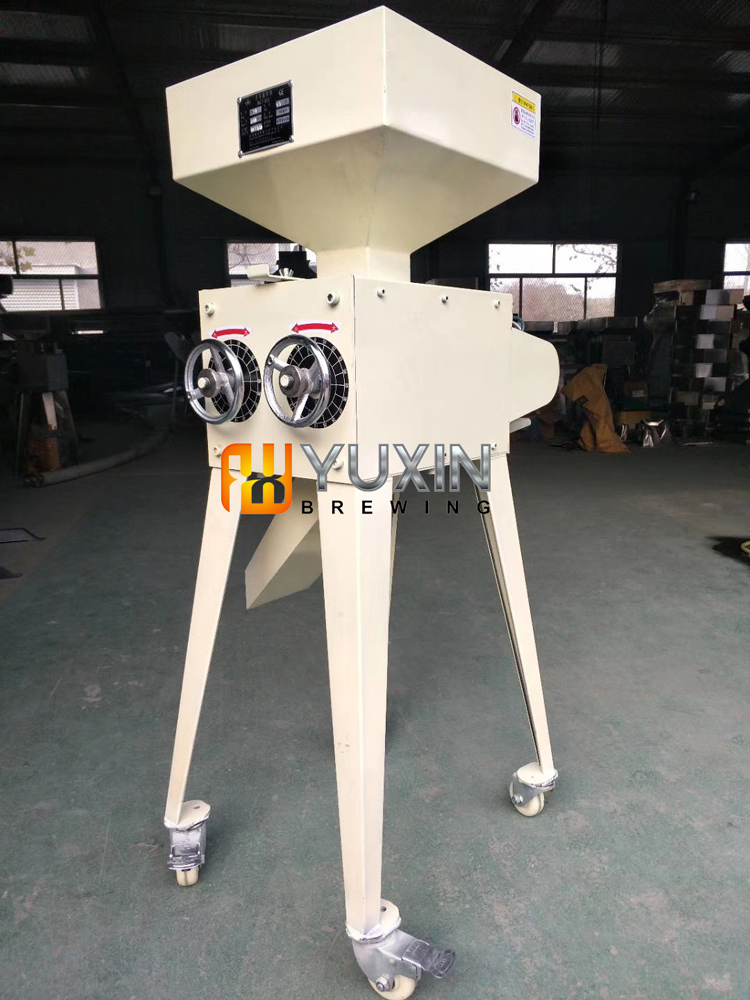

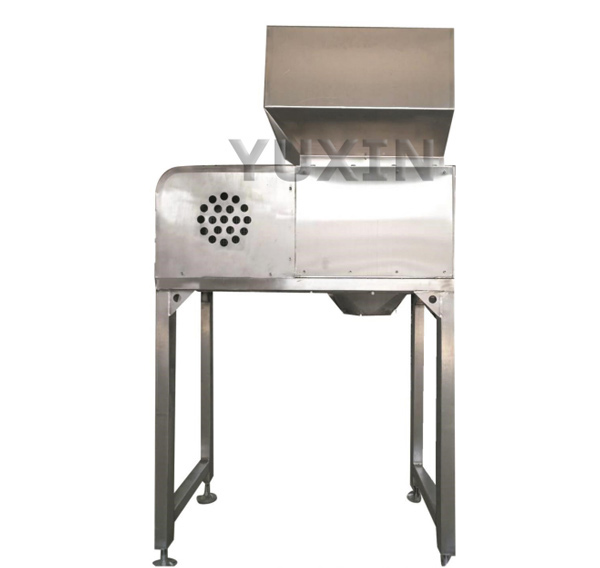

Malt crushing beer milling machine grinder
Grain mill, malt mill, double roller grain mill, everything good always needs to be made by good machine. Do you want to get much better malt for your craft beer? See, our factory is busy doing production now.
Product Description
Differenct types will be customized according to customers' requirement!
| Type 1 | Type 2 | Type 3 | Type 4 |
Model 1: Material: Carbon steel; Double roller, with motor Power: 1.1kw Weight: 120kg Speed: 700rpm Dimension: 540x790x1130mm |
Model 2: Material: Carbon steel; Double roller, with motor Power: 1.5kw Weight: 150kg Speed: 700rpm Dimension: 600x780x1365mm |
Model 3: Material: Carbon steel; Double roller, with motor Power: 3kw Weight: 300kg Speed: 700rpm Dimension: 740x800x1450mm |
Model 4: Material: Carbon steel; Double roller, with motor Power: 5.5kw Weight: 630kg Speed: 800rpm Dimension: 11506801710 |
Specification
Function |
Grain Crushing |
Type |
Double Roller |
Drive Power |
1.1-5.5KW |
Output |
80-1200kg/hr |
Roller Size |
155x(110-300)mm |
Speed of these two roller |
Different |
Faster Roller Speed |
700-800rpm |
Crushing Particle Size |
Adjustable |
Ratio of Magnetic Metal Material |
0.003g/kg |
Temperature of rollers after production |
56 |
Dimension |
Various from different output miller |
Net weight |
120-630kg |
A new mill is ready to be packaged in wooden cases for shipping.
Packaging & Shipping
Packaged by free-fumigation wooden cases, also fixed by stainless steel rope in the container, to make sure everything safe in the container.
Company Information
YUXIN is a well-known brewing equipment supply company in China which has 30 years brewing experience and ten years manufacturing experience. Our company combines the world's most sophisticated brewing technology with economical prices in order to provide our customers with the best equipment at affordable price. Our product line caters to every possible customer in the market: including Brewing Systems, Tanks, and Kegging/bottling/canning machine. Our products range from individual pieces of equipment to complete turn-key systems. Fully committed to the brewing industry, YUXIN strives to consistently deliver quality products and the very best customer service, we always take customer's requirement and satisfaction as our aim.
Any new interest? Please feel free to contact us!
