| Brand Name: | maishi |
|---|---|
| Technique: | Woven |
| Application: | Filters |
| Type: | Weave Wire Mesh |
| Material: | Stainless Steel Wire |
| Model Number: | WSWM |
| Wire Diameter: | 0.025-1.8mm |
| Weave Style: | |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

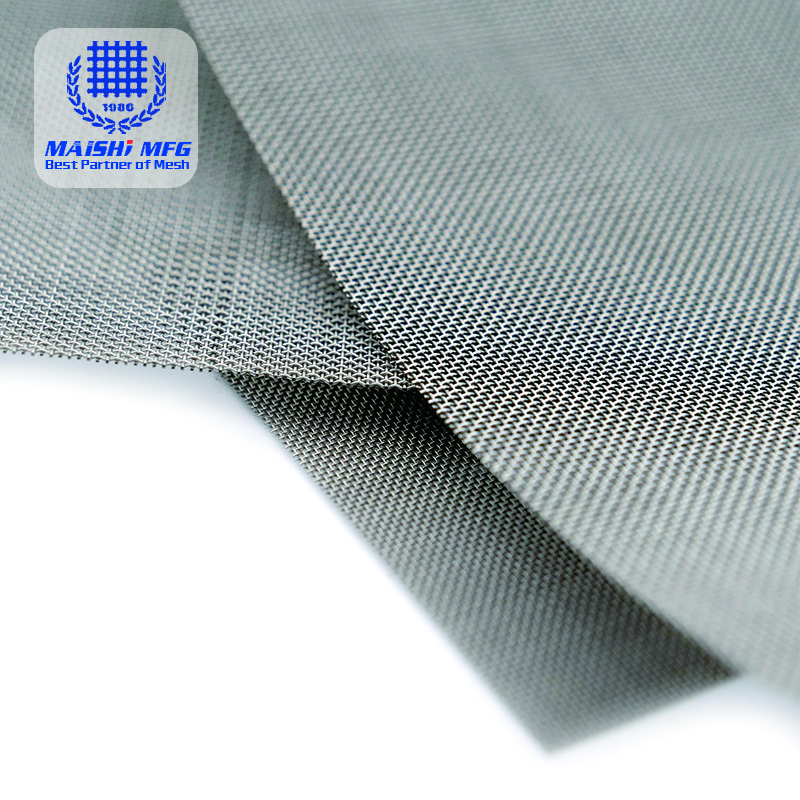

Woven wire mesh stainless steel netting for filter
MAISHI Wire Mesh Manufacture Group is a professional wire mesh manufacturer in China and has produced Stainless steel mesh since 1986. Ur main market is USA, Germany etc. and we have strict quality control system to ensure the mesh quality. IF you need mesh product (including deep processing product), please do not hesitate to contact us.We will do our best to support you.
Stainless Steel Woven Wire Mesh (Plain Weave) | ||||||
Mesh/inch |
Wire diameter(mm) |
Aperture(mm) |
- |
Mesh/inch |
Wire diameter(mm) |
Aperture(mm) |
2mesh |
1.80 |
10.90 |
60mesh |
0.15 |
0.273 | |
3mesh |
1.60 |
6.866 |
70mesh |
0.14 |
0.223 | |
4mesh |
1.20 |
5.15 |
80mesh |
0.12 |
0.198 | |
5mesh |
0.91 |
4.17 |
90mesh |
0.11 |
0.172 | |
6mesh |
0.80 |
3.433 |
100mesh |
0.10 |
0.154 | |
8mesh |
0.60 |
2.575 |
120mesh |
0.08 |
0.132 | |
10mesh |
0.55 |
1.990 |
140mesh |
0.07 |
0.111 | |
12mesh |
0.50 |
1.616 |
150mesh |
0.065 |
0.104 | |
14mesh |
0.45 |
1.362 |
160mesh |
0.065 |
0.094 | |
16mesh |
0.40 |
1.188 |
180mesh |
0.053 |
0.088 | |
18mesh |
0.35 |
1.060 |
200mesh |
0.053 |
0.074 | |
20mesh |
0.30 |
0.970 |
250mesh |
0.04 |
0.061 | |
26mesh |
0.28 |
0.696 |
300mesh |
0.035 |
0.049 | |
30mesh |
0.25 |
0.596 |
325mesh |
0.03 |
0.048 | |
40mesh |
0.21 |
0.425 |
350mesh |
0.03 |
0.042 | |
50mesh |
0.19 |
0.318 |
400mesh |
0.25 |
0.0385 | |
Stainless Steel Woven Wire Mesh(Twill Weave) | |||
mesh |
Wire diameter(mm) |
Aperture(mm) |
Material (AISI) |
250mesh |
Wire dia.0.040mm |
0.063 |
304 or 316 |
300mesh |
Wire dia.0.040mm |
0.044 |
304 or 316 |
325mesh |
Wire dia.0.035mm |
0.043 |
304 or 316 |
350mesh |
Wire dia.0.030mm |
0.042 |
304 or 316 |
400mesh |
Wire dia.0.030mm |
0.033 |
304 or 316 |
Stainless Steel Woven Wire Mesh(Dutch Weave) | ||
Mesh |
Wire Dia. (MM) |
Material(AISI) |
12meshX64mesh |
0.58/0.40 |
304 or 316 |
24meshX110mesh |
0.36/0.25 |
304 or 316 |
14meshX88mesh |
0.50/0.33 |
304 or 316 |
30meshX150mesh |
0.18/0.14 |
304 or 316 |
40meshX200mesh |
0.14/0.11 |
304 or 316 |
50meshX250mesh |
0.10/0.071 |
304 or 316 |
80meshX700mesh |
0.06/0.05 |
304 or 316 |
165meshX800mesh |
0.071/0.040 |
304 or 316 |
165meshX1400mesh |
0.05/0.032 |
304 or 316 |
200meshX1800mesh |
0.05/0.03 |
304 or 316 |
325meshX2300mesh |
0.030/0.025 |
316L |
400meshX2800mesh |
0.030/0.02 |
316L |
Material: SS304,SS316 Stainless Steel Wire
Weave Type: Plain weave, Twilled weave, Dutch weave
Wire Diameter: 0.025-1.8mm
Performance: Corrosion-resisting, Wear-resisting, Tear-resisting
Uses: Mainly used for Filter, protect, Food industry, Chemical industry and so on.
Special size and specification are available according to customers requirment.
Feature:
1. Acid and alkali resistance
2. Corrosion and rust resistance
3. High resistance due to tight wire position
4. Extreme low absolute grade of fineness (down to 5 - 6 m)
5. Heat resistance
