| Section Shape: | Round |
|---|---|
| Outer Diameter: | 38-165 mm |
| Thickness: | 1-4 mm |
| Grade: | A53-A369,Q195-Q345 |
| Grade: | A135-A,A199,Q195,Q215,Q235,Q345 |
| Standard: | ASTM |
| Standard: | ANSI A182-2001,ANSI A210-1996 |
| Outer Diameter: | 50mm |
| Alloy Or Not: | Non-alloy |
| Surface Treatment: | |
| Certification: | |
| Technique: | Cold Rolled |
| Secondary Or Not: | Non-secondary |
| Place of Origin: | China (Mainland) |
| surface: | black |
| material: | steel pipe |
Quick Details
Specifications
| Commodity | Sonic logging pipe |
| OD | 38mm,50mm,53mm,57mm,112mm,163mm |
| Thickness | 1-2mm |
| Material | Q195 etc. |
| Length | 5.8m |
| Certification | TUV,ISO |
| type | Press-clamp type, push-fit type,threaded type,flanged type |
| Standard | ASTM/BS/GB etc |
| Material | Q195 etc |
| Color | Black |
| End finish | Plain |
| Surface treatment | PE or oiled or mill varnish |
Position splice
No wastage standard lengths
No Electricity/Welding/Threading
Push-fit assembly
Fast & Light handling by workers
Easy fixing to rebar cage
No weather limitations
Patented & designed for sonic testing
100% tested in factory
Easy visual inspection on site
Optional mechanical crimping
| Size/OD(mm | WT(mm) | Tensile strength(Mpa) | Elongation | Internal pressure(Mpa) | External ressure(Mpa) |
| 50 | 1--3.5 | 315Mpa | 14% | 1Mpa | 4Mpa |
| 54 | 1--3.5 | 315Mpa | 14% | 1Mpa | 4Mpa |
| 57 | 1--3.5 | 315Mpa | 14% | 1Mpa | 4Mpa |

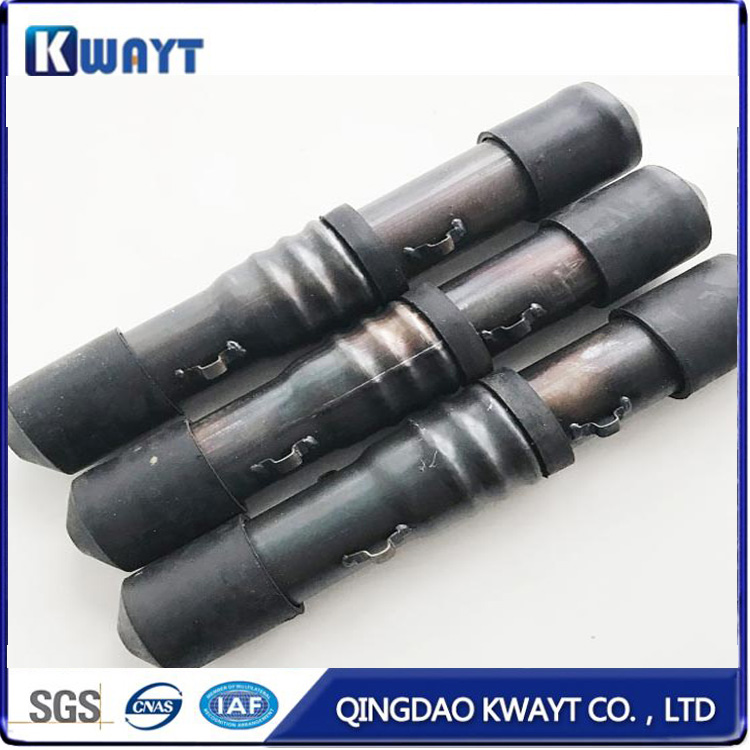

Sonic pipe, is dedicated for sonic test applications. They are specially designed to be encased in foundations such as bored piles, diaphragm walls and barrettes to allow for future testing of the concrete integrity by ultrasonic waves.
Sonic tube is the Push-Fit SYSTEM available on the market dedicated for sonic test applications. the concept is to form a bell mouth by enlarging the end of the tube to allow a CONCRETE PROOF JOINT.
