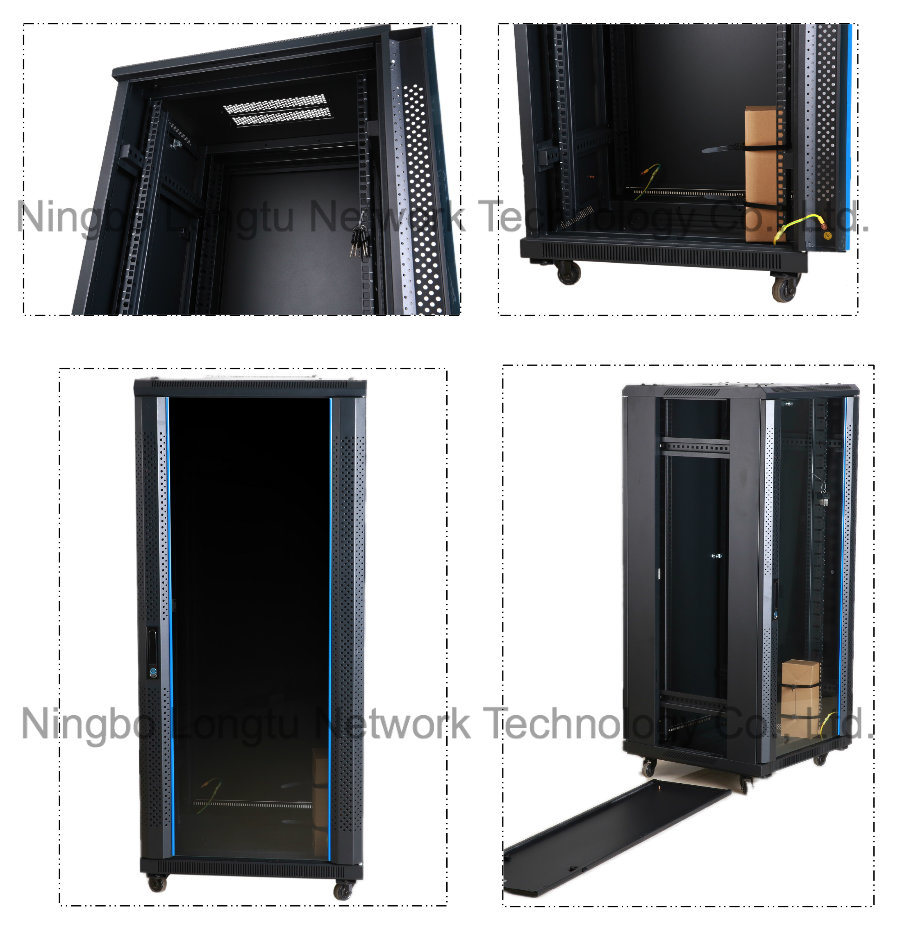

Description
> Front Temper Glass Door with Swing Handle Lock (High Quality) +++++  (Glass Thickness 5.0mm)
> Rear Flat Metal Door with small round Lock ( Perforated Door Optional)
> Top with ventilation Holes and Cable Entry holes.
> 4 PCS Galvnized (Zinc-Painting) Mounting Elements (Rail Mounts) 2.0mm
> Bottom with Castors (2 with Breaker) and 4 Adjustable feet
> 800mm width Cabinet with 2 pcs Vertical Management for Cables

 Standard:
Comply with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1, DIN41494; PART7, ETSI standard

Material:
High grade cold rolled steel.

Thickness:
Mounting profile: 2.00mm others: 1.2--1.5mm

Loading Capacity:
Static Loading: 800kgs

Surface finish:
Degrease, acid pickling, rust prevention and Parkerizing, pure water cleaning, static electricity plastic painting.

Degree of Protection:
IP20

Body Color:
RAL7035, RAL9004 etc.
Optional Accessory
> Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
> 19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
> 1U, 2U support board.
> Vertical Cable manager
> 19'' Power distribution unit(PDU)
> 19'' Blanking plate 1U, 2U, 4U
> Heavy duty castor, Heavy duty castor with braker
> Optional lock for side panels
> Earth kit
> and so on...

Size Form

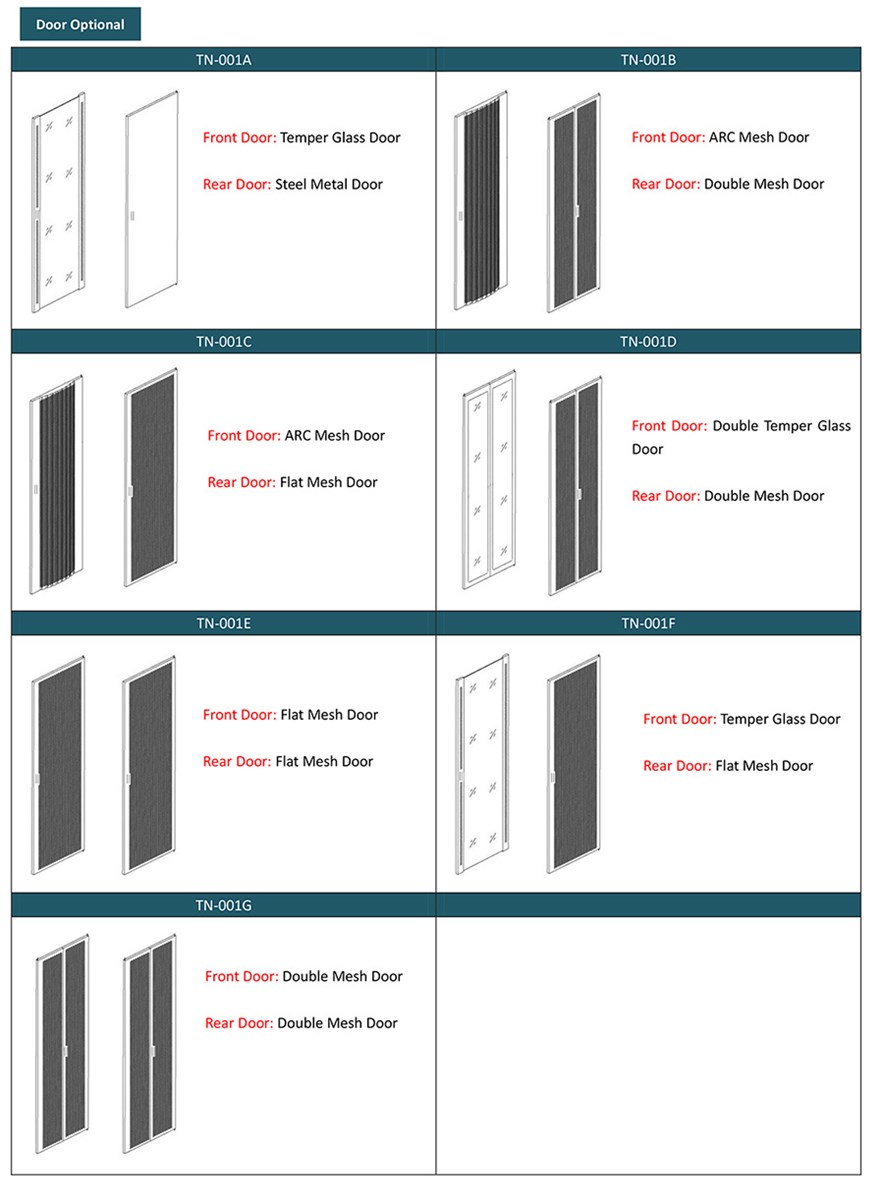

Optional Doors
