Introduction

Needle type pneumatic shut-off nozzle mainly serves to solve the leakage of low-density thermoplastic injection process, like PA, PP, PS, PE, POM, also it's suitable in high frequency process, and used on high speed injection synchronization, which can improve production efficiency, shorten production time and save cost.

Mechanism

during storage period of injection unit process, through integrated air cylinder, the inside needle is pushed in axial direction to seal inside nozzle and keep lock-up, so that material won't pass and leak. and open with machine signal to offer precise injection. during synchronization process, the screw can melt polymer the same time mold opens and save precious time.

Appliance field

Auto parts, Electronic components, Package & Housewares

Max. Injection Rate	: 3000 cm3/sec
Actuator	: Pneumatic
Drive Air Pressure	: 6-10 Bar
Max. Injection Pressure	: 3000 Bar
Max. Temperature	: 450
Suitable Equipment	: Vertical/Horizontal

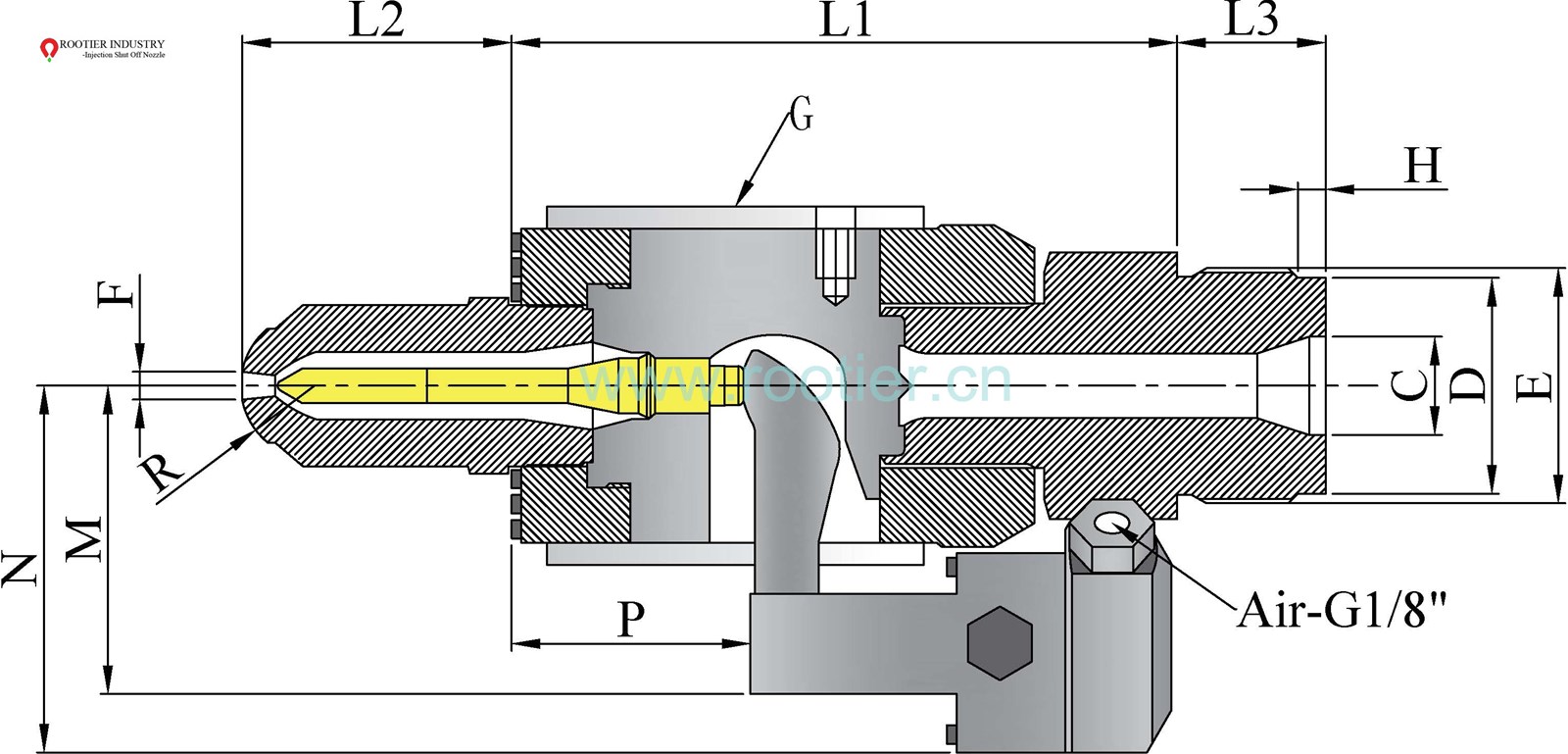

PARAMETER		RN-I	RN-II	RN-III
Max. Injection Rate (PS)	Cm3/sec	400	1300	3000
Ref. Max. Screw Size	mm	60	120	180
Nozzle Body Length (L1)	mm	140	178	220
Nozzle Head Length (L2)	mm	60/80	70/90	100
Heater Size	mm	60*80	80*100	115*150
Air Pressure (Ref.)	Bar	6	8	10
P	mm	55	65	90
M	mm	72	80	135
N	mm	85	100	170
