C2F (VSSJAF) type double flange power transmission joint is composed of flange loose sleeve expansion joint, short pipe flange, power transmission screw and other components, which can reduce the pressure and thrust (blind force) of the connected parts and compensate for the installation error of pipeline. Double flange power connection is mainly used for loose sleeve connection of pumps, valves and other accessories. C2F (VSSJAF) type double flange power transmission joint is suitable for conveying seawater, fresh water, cold and hot water, drinking water, domestic sewage, crude oil, fuel oil, lubricating oil, refined oil, air, gas, steam and powder with temperature no higher than 250 degrees.

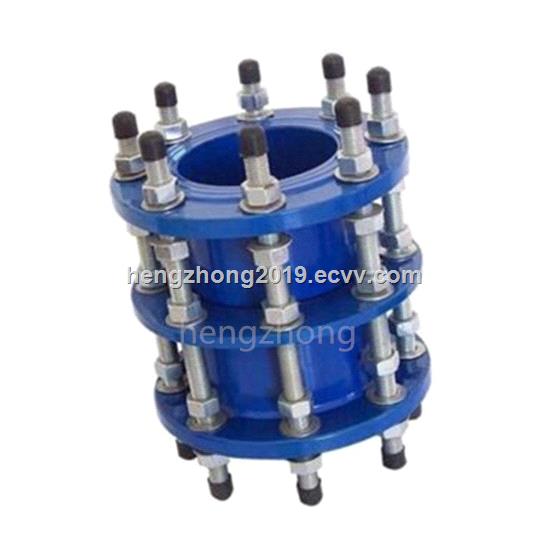

[product name]: C2F (VSSJAF) type double flange power transfer joint (C2F double flange loose sleeve power transfer compensation joint)

[product alias]: Double flange expansion joint

[Product specification]: dn32mm-dn4000mm

[product pressure]: 0.6-2.5mpa

[product certification]: Iso9001-2008

[scope of application]: [weak base, weak corrosion, oil, hot water, cold water, etc.]

[product material] : carbon steel, ductile iron, stainless steel.

[product color]: Blue, can be customized.

[operating temperature]: -40 c to 80

Product advantages:

Double flange power transmission joint: it is composed of main parts, such as body, sealing ring, gland and extension pipe. this product is suitable for the pipeline with flanges on both sides. during installation, adjust the installation length of the flanges on both ends of the product, tighten the gland bolts evenly on the diagonal, and make it into a whole with a certain amount of adjustment. It is convenient to adjust according to the site size during installation and maintenance. during operation, the reverse axial thrust can be transmitted to the whole pipe. Suitable for conveying seawater, fresh water, hot and cold water, drinking water, domestic sewage, crude oil, fuel oil, lubricating oil, refined oil, air, gas, steam with temperature not higher than 250 degrees and granular powder and other media.

Product features:

the double flange power transmission joint is composed of the flange loose sleeve expansion joint, short pipe flange, power transmission screw and other components, which can reduce the pressure thrust (blind force) of the connected parts and compensate the installation error of the pipeline. Double flange power connection is mainly used for loose sleeve connection of pumps, valves and other accessories.

both ends are connected by flanges, which is convenient and quick to install.

the axial thrust can be transmitted to the whole pipeline, spreading the pressure evenly.

It is convenient to disassemble and maintain the pump valve.
