| Section Shape: | Round |
|---|---|
| Outer Diameter: | 38-165 mm |
| Thickness: | 1-4 mm |
| Grade: | Q195-Q345 |
| Grade: | Q195,Q215,Q235 |
| Standard: | ASTM |
| Standard: | ANSI A182-2001,ASME B36.19M-2004,ASTM A1020-2002,ASTM A312-2007,ASTM A312M-2001,ASTM A335M-2006 |
| Outer Diameter: | 50 |
| Alloy Or Not: | Non-alloy |
| Surface Treatment: | |
| Technique: | Cold Rolled |
| Application: | Structure Pipe |
| Secondary Or Not: | Non-secondary |
| Place of Origin: | China (Mainland) |
| surface: | black |
| material: | steel pipe |
Quick Details
Specifications

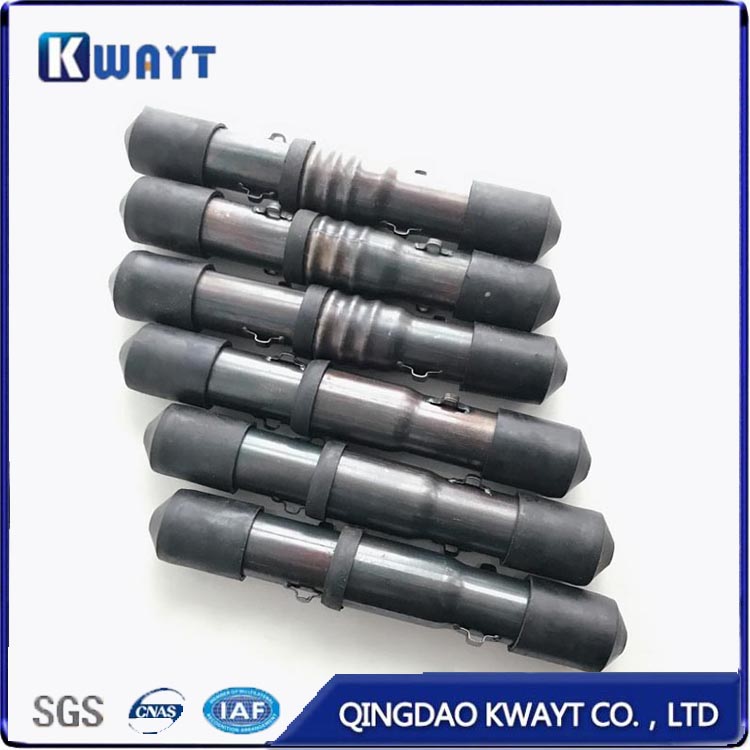

Sonitec tube for pile foundation test
Product Description
Product Type: |
Sonitec tube for pile foundation test |
Material: |
Q195 etc |
OD: |
50mm,53mm,57mm,102mm,112mm,163mm |
Wall Thickness: |
1-2mm |
Length: |
5.8m or 6m,etc |
Surface Treatment: |
Black annealed |
End finish: |
Plain End |
Certification: |
Testing report,ISO |
Applications
Push-fit sonic pipe for foundation test is for industry construction of bridge, tall building, high speed way and more
Type: push-fit type
the size available:46mm/ 50mm/51mm/53mm/54mm/57mm/89mm/102mm/112mm/165mm or other size
the thickness: 0.8-1.8mm
in CSL, a transmitter emits an ultrasonic signal in one tube and the signal is sensed some time later by the receiver in another sonic tube. Poor concrete between the sonic tubes will delay or disrupt the signal. The engineer lowers the probes to the bottom of the shaft and moves the transmitter and receiver upward, until the entire shaft length is scanned.
